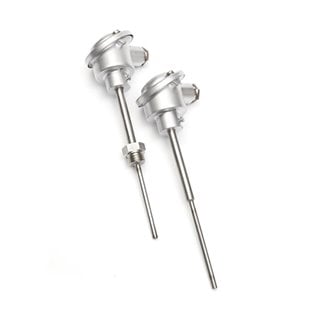

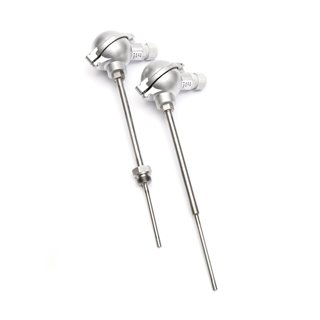

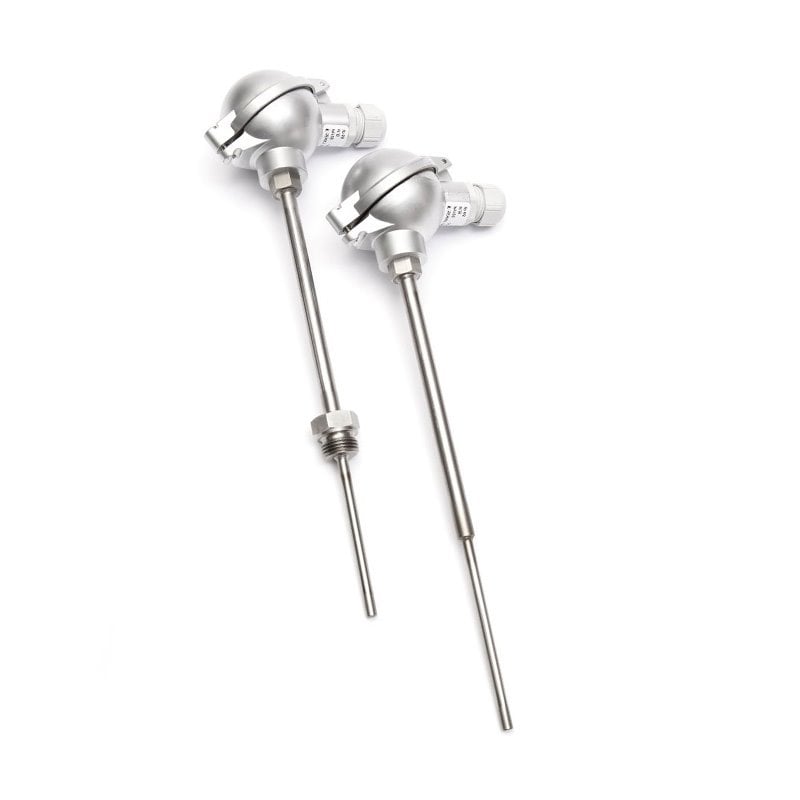

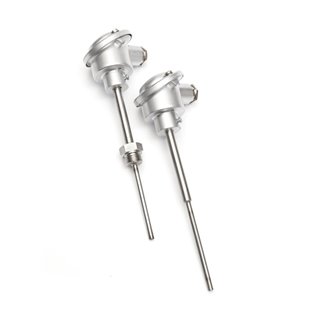

TEMPERATURE SENSORS UP TO 400 °C WITH IP 68
On request

BBB

--%>

These resistance-type sensors are intended for contact measurements of temperatures up to 400 °C. Temperature sensors, in combination with a central holder or thermowell, can be used to measure the temperature in various applications of an industrial environment. The sensor variant with welded thread is ideal for direct measuring of mediums in ducts. Sensors meet level of protection IP 68 in accordance with EN 60529. The standard operating temperature range is -50 to 400 °C. The sensors can be utilised for any control systems that are compatible with sensing element output signals or output signals quoted in the table of sensing element types. The sensors are designed to be operated in a chemically non-aggres sive environment.

ACCESSORIES

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard) or in an Accredited laboratory.



Technické parametry

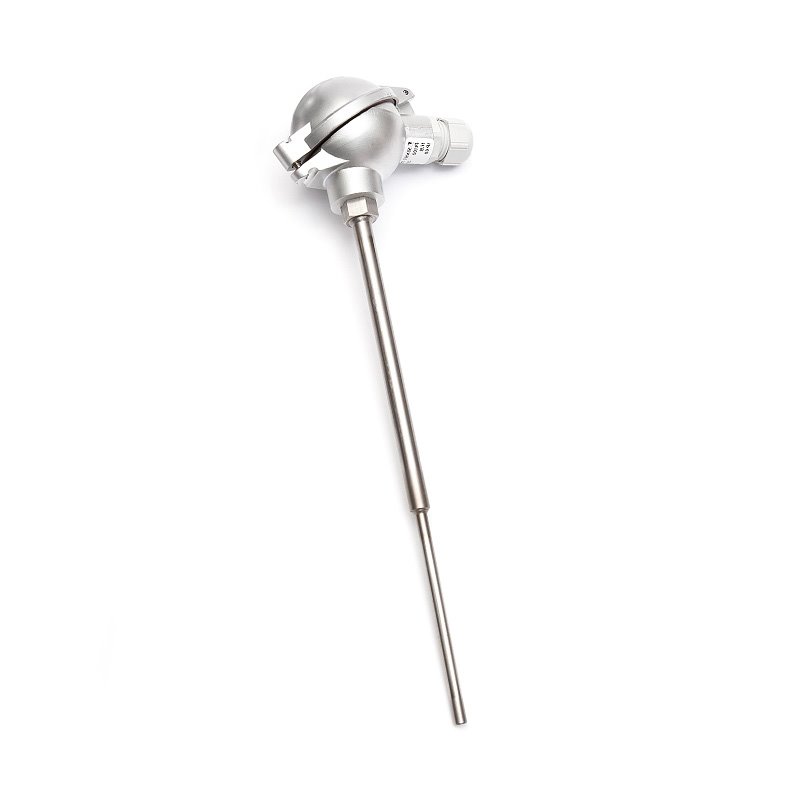

Sensor type with smooth stem

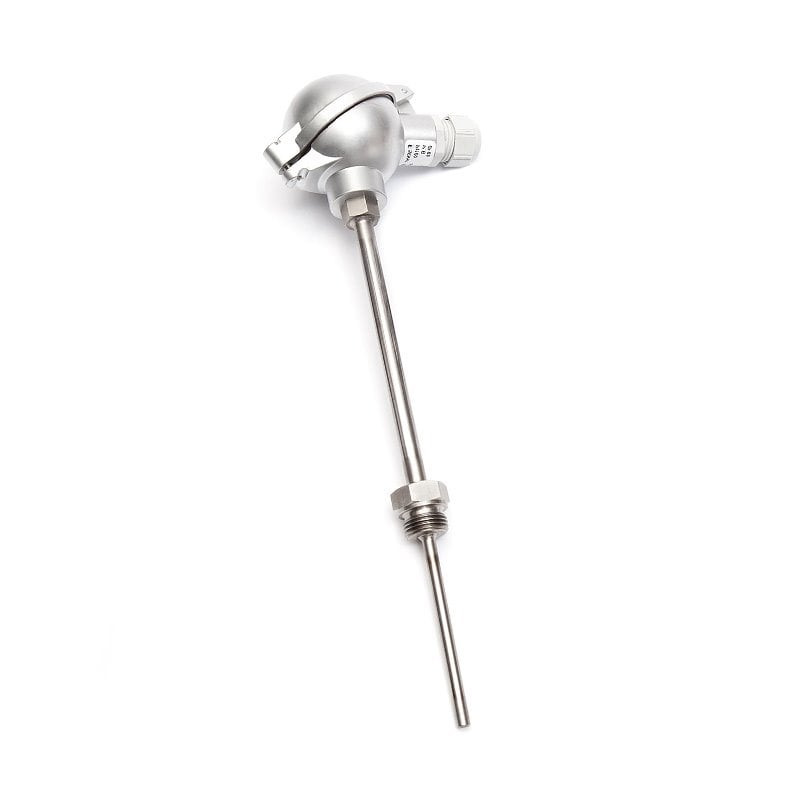

Sensor type with welded-on screwed joint
PTS 441
PTS 461
PTS 443
PTS 463
PTS 445
PTS 465
Type of sensing element
Pt 100 Pt 500 Pt 1000
Measuring range B class
-50 to 400 °C
Maximum measuring DC current
3 mA 1,5 mA 1 mA


Sensor type with smooth stem
Sensor type with welded thread
PTS 451
PTS 471
Note
Type of sensing element
Pt 1000/3850
Output signal
4 to 20 mA
Measuring ranges
-50 to 50 °C
0 to 100 °C
0 to 150 °C
0 to 200 °C
0 to 400 °C
ambient temperature around the connection head
-30 to 70 °C
Power supply (U) 11 to 30 V DC recommended value 24 V DC
Output signal - sensing element break > 25 mA
Output signal - sensing element short circuit < 3.5 mA


OTHERPARAMETERS
Accuracy class
B class according to EN 60 751, Δt = ± (0,3 + 0,005|t|) in °C
Measuring error (PTS 451, PTS 471)
< 0.6 % of the measuring range, minimum 0.5 °C
Sensor connection
according to wiring diagram
Standard length of stem L1 50, 100, 160, 220, 280, 400 mm
Nominal pressure of the stem PN 63 (with a thread)
Time response
τ0,5 < 9 s ( in flowing water at 0,4 m.s-1)
Recommended wire cross section
0.35 to 1.5 mm2
Thread types for PTS 461, PTS 463, PTS 465, PTS 471 G 1/2"; M 20 x 1,5; M 27 x 2
Insulation resistance
> 200 MΩ at 500 V DC, 25 °C ± 3 °C; humidity < 85 %
Ingress protection
IP 68 in accordance with EN 60 529, 5 bar/30 min
Material of the stem
stainless steel DIN 1.4301
Material of the connection head
aluminium LIMATHERM NAA
Operation Conditions ambient temperature: -30 °C to 100 °C; -30 °C to 70°C with converter
relative humidity: max. 100% (at the ambient temperature 25 °C)
atmospheric pressure: 70 to 107 kPa
Weight
approximately 0.25 kg


MAXIMUM FLOW SPEED OF THE MEASURED MEDIUM - AIR AND WATER VAPOUR / WATER [m.s-1]
Length of the thermowell/ stem >60 to 100 mm >100 to 160 mm > 160 to 220 mm > 220 to 400 mm
Values for the version with thread
15 / 1.5 8.0 / 1.0 2.5 / 0.6 0.6 / 0.3


Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

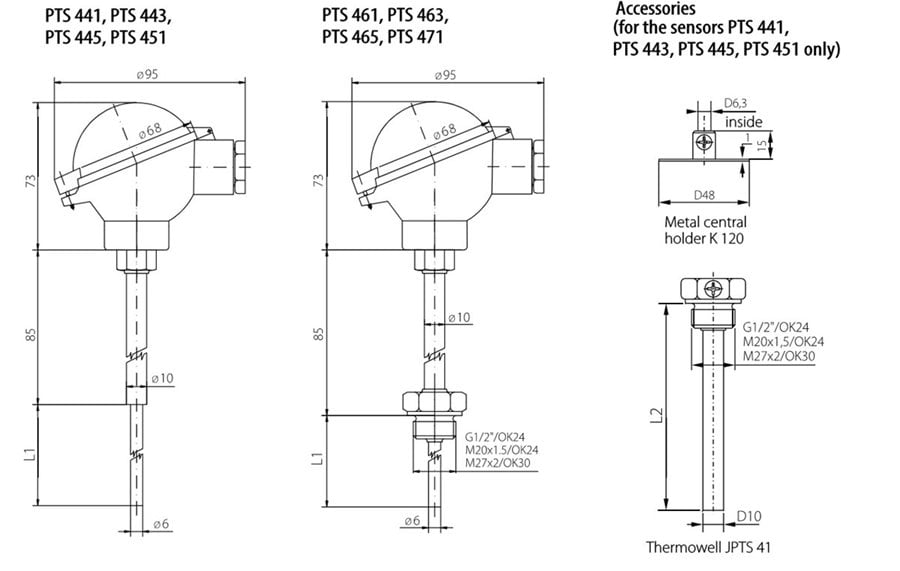

Rozměrový náčrt

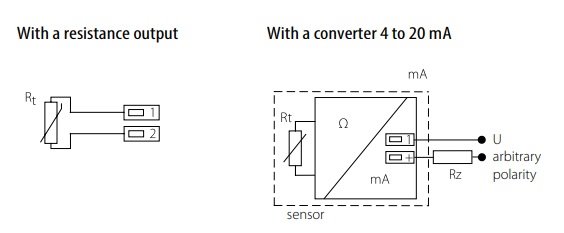

Schéma zapojení
