Metal holder K 120

Documentation (PDF) Ask Question
Nacházíte se:
Metal holder K 120

CONFIGURATOR

CONFIGURE AND REQUEST

21698
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

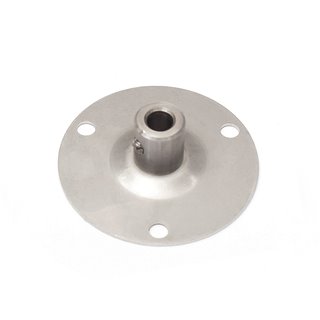

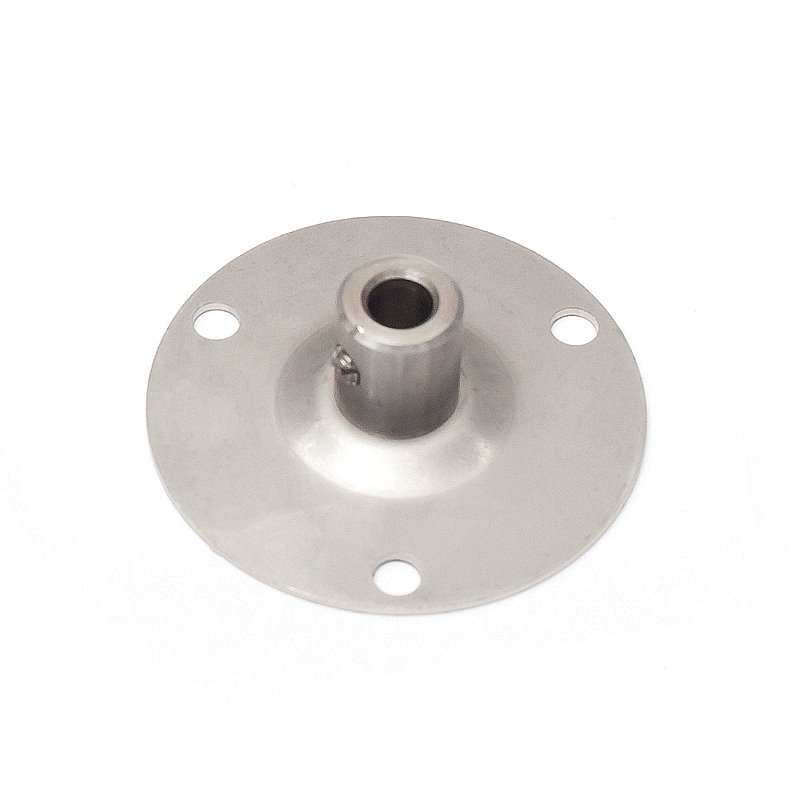

Metal holder is used to mounting temperature sensors for example in AC.

Metal holder is designed to temperature sensors with stem and metal connection heads K 120 line (NK 120, NK 121 ..., PTK 120, PTK 220 ...), next by temperature sensors with plastic connection head S 120 line, MINI line and by temperature sensors with stainless steel connection head.

Holder is designed for diameter 6 mm of the temperature sensors.

Temperature sensors are locked in the metal holder K 120 with a M4 x 10 screw.

Technické parametry

Type Metal holder K 120
Max diameter 48 mm
Inside diameter 6.3 mm
High 15 mm
Material stainless steel DIN1.4301



Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

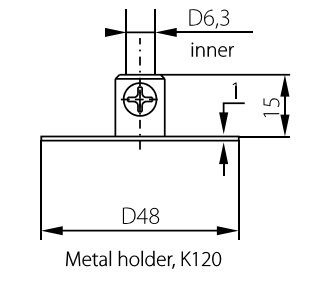

Rozměrový náčrt

Schéma zapojení

Modifikace

Soubory ke stažení

040.11en.pdf 040.11en.pdf
Otevřít   Stáhnout
