TEMPERATURE SENSORS UP TO 600 °C WITH IP 68 WITH PROGRAMMABLE CONVERTER 4–20 mA

TEMPERATURE SENSORS UP TO 600 °C WITH IP 68 WITH PROGRAMMABLE CONVERTER 4–20 mA

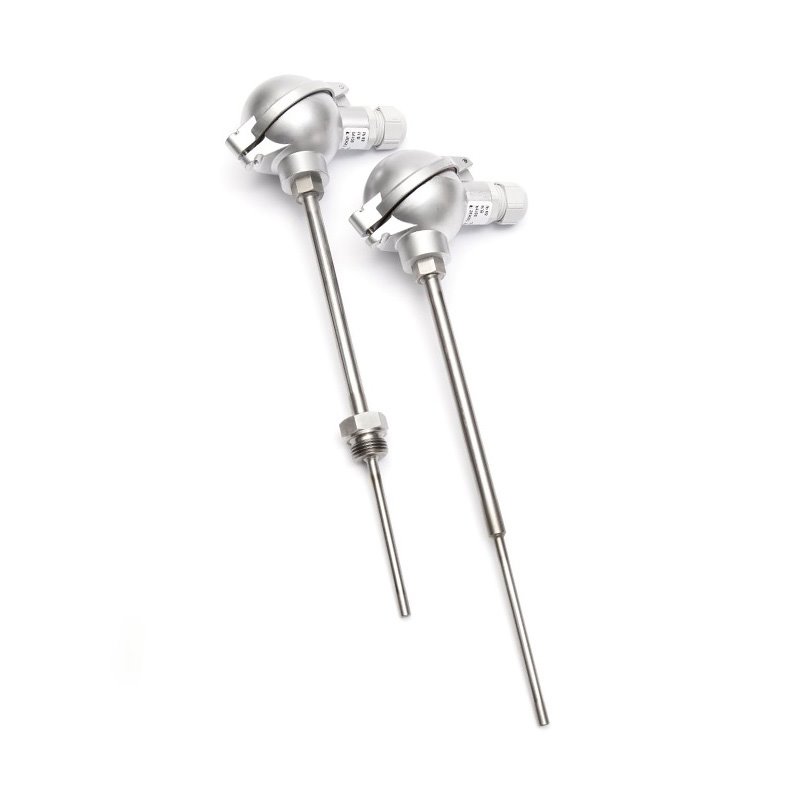

PTS 681 and PTS 691 series

TEMPERATURE SENSORS UP TO 600 °C WITH IP 68 WITH PROGRAMMABLE CONVERTER 4–20 mA
On request

BBB

--%>

These resistance-type sensors are intended for contact measurements of temperatures up to 600 °C. Temperature sensors, in combination with a central holder or thermowell, can be used to measure the temperature in various applications of an industrial environment. The sensor variant with welded thread is ideal for direct measuring of mediums in ducts.The sensors meet level of protection IP 68 in accordance with EN 60529. The standard operating temperature range is -50 to 600 °C. The sensors can be utilised for any control systems that are compatible with output signal 4 to 20 mA.

The sensors are designed to be operated in a chemically non-aggressive environment.

ACCESSORIES

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard) or in an Accredited laboratory.



Technické parametry

Sensor type with smooth stem
Sensor type with welded thread
PTS 681
PTS 691
Type of sensing elementPt 1000 / 3850
Output signal4 to 20 mA
Maximum measurement range-50 to 600 °C, in a short term to 650 °C
Adjustable measurement rangeoptional, minimum interval 10 °C
Accuracy of sensing elementclass B in accordance with EN 60751
Accuracy of convertertemperature error < 0.05 °C
error of setting < 0.12 °C
error of linearity< 0.05 % from the set range, minimum 0.16 °C
influence of supply voltage < 0.005 %/V from the range
Current limitationsensing element < 3.2 mA
sensing element break > 22.7 mA
Lead-in connectionrecommended 1.5 to 2.5 mm2
Ingress protectionIP 68 (1 bar) in accordance with EN 60529
Material of sensor stemstainless steel DIN 1.4571
Standard length of the stem L150, 100, 160, 220, 280, 400 mm
Method of programmingAY - USB adapter *
Thread types by PTS 691G 1/2"; M 20 x 1.5; M 27 x 2
Insulation resistance> 200 MΩ at 500 V DC, 25° ± 3 °C; humidity < 85 %
Recommended power supply (SELV or PELV)
8 to 28 VDC, recommended value 24 VDC
Material of connection headaluminium alloy, LIMATHERM NAA
Operating conditionsambient temperature: -25 to 80 °C
relative humidity: max 100 % (at the ambient temperature 25 °C)
atmospheric pressure: 70 to 107 kPa
Weight0.25 kg

* programming software is free

MAXIMUM FLOW SPEED OF THE MEASURED MEDIUM - AIR AND WATER VAPOUR / WATER [m.s-1]
Length of the thermowell/ stem >60 to 100 mm >100 to 160 mm > 160 to 220 mm > 220 to 400 mm
Values for the version with thread
15 / 1.5 8.0 / 1.0 2.5 / 0.6 0.6 / 0.3

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

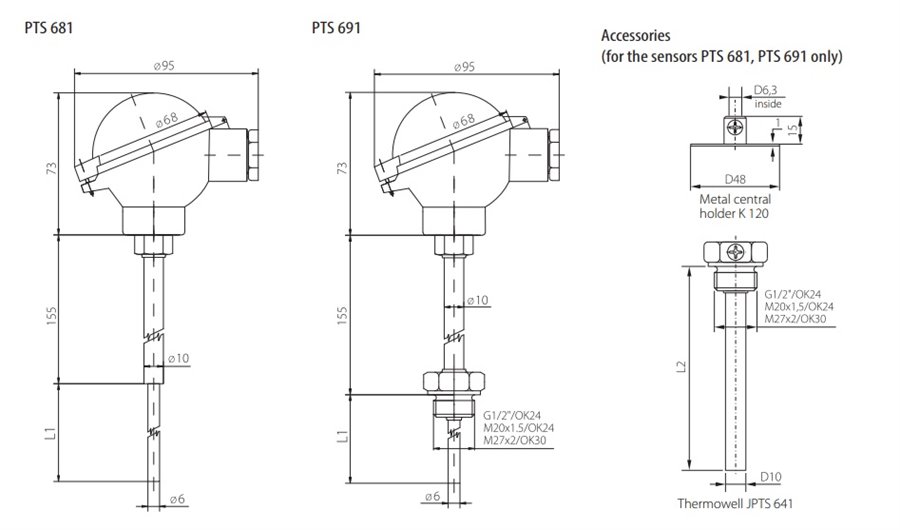

Rozměrový náčrt

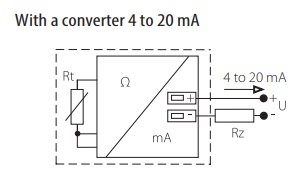

Schéma zapojení
