TEMPERATURE SENSORS UP TO 400 °C

TEMPERATURE SENSORS UP TO 400 °C

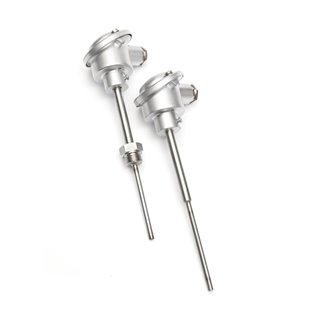

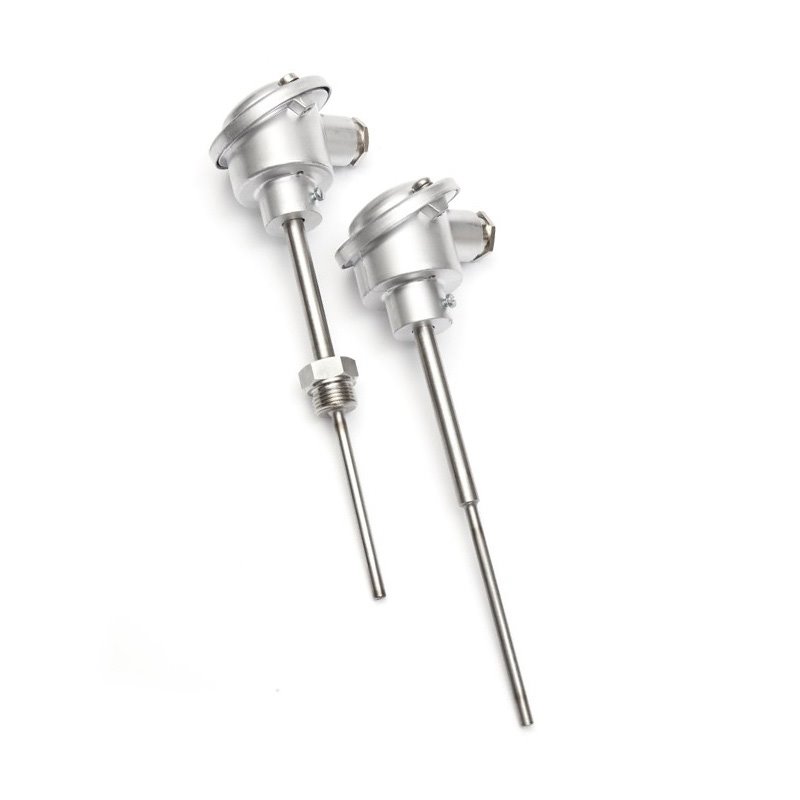

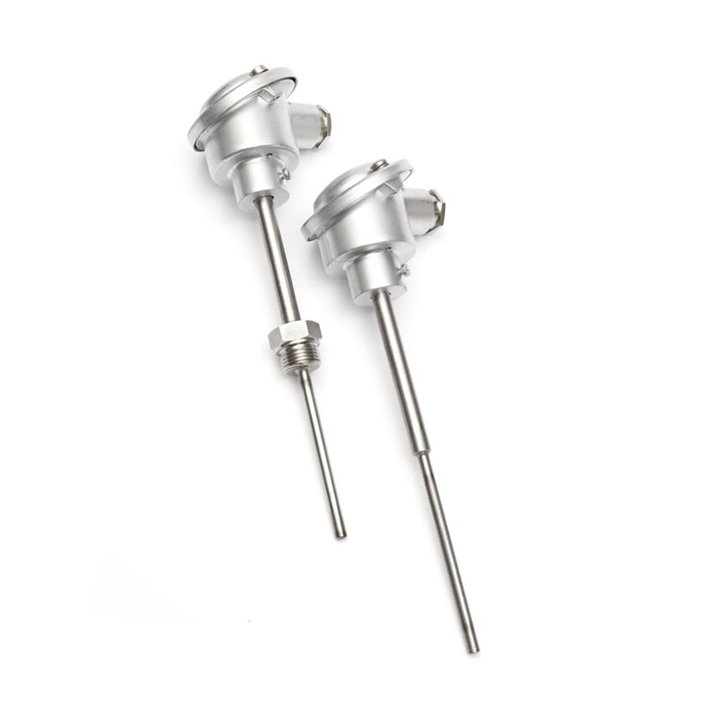

PTS 4x and PTS 6x series

TEMPERATURE SENSORS UP TO 400 °C
On request

BBB

--%>

These resistance-type sensors are intended for contact measurements of temperaures up to 400 °C. Temperature sensors, in combination with a central holder or thermowell, can be used to measure the temperature in various applications of an industrial environment. The sensor variant with welded thread is ideal for direct measuring of mediums in ducts. The standard operating temperature range is -50 to 400 °C. The sensors can be utilised for any control systems that are compatible with sensing element output signals or output signals quoted in the table of sensing element types.

The sensors are designed to be operated in a chemically non-aggressive environment.

ACCESSORIES

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard) or in an Accredited laboratory.



Technické parametry

Sensor type with smooth stem
Sensor type with welded-on screwed joint
PTS 41
PTS 61
PTS 43
PTS 63
PTS 45
PTS 65
Type of sensing element
Pt 100 Pt 500 Pt 1000
Measuring range B class
-50 to 400 °C
Maximum measuring DC current
3 mA 1.5 mA 1 mA


Sensor type with smooth stem
Sensor type with welded thread
PTS 51
PTS 71
Note
Type of sensing element
Pt 1000/3850
Output signal
4 to 20 mA
Measuring ranges
-50 to 50 °C
0 to 100 °C
0 to 150 °C
0 to 200 °C
0 to 400 °C
ambient temperature around the connection head -30 to 70 °C
Power supply (U)
11 to 30 V DC recommeded value 24 V DC
Load resistance
150 Ω for power supply 12 VDC
700 Ω for power supply 24 VDC
Output signal - sensing element break
> 25 mA
Output signal - sensing element short circuit
< 3.5 mA



OTHER PARAMETERS
Accuracy class
B class according to EN 60751, Δt = ± (0.3 + 0.005|t|) in °C
Measuring error
< 0.6 % of the measuring range, minimum 0.5 °C
Sensor connestion
according to the wiring diagram
Standard lenght of the stem L1
50, 100, 160, 220, 280, 400 mm
Nominal pressure of the stem
PN 63 (with a thread)
Time response
τ0.5 < 9 s ( in flowing water 0.4 m.s-1)
Recommended wire cross section
0.35 to 1.5 mm2
Thead types for PTS 61, PTS 63, PTS 65, PTS 71 G 1/2"; M 20 x 1.5; M 27 x 2
Insulation resistance
> 200 MΩ at 500 V DC, 25 °C ± 3 °C; humidity < 85 %
Ingress protection
IP 54 in accord with EN 60529
Material of the stem
stainless steel DIN 1.4301
Material of connection head
aluminium alloy LIMATHERM B
Operating conditions
ambient temperature: -30 to 100 °C; -30 to 70 °C with a converter
relativive humidity: max. 100 % (at the ambient temperature 25 °C)
atmospheric pressure: 70 to 107 kPa

Weight

approximately 0.25 kg


MAXIMUM FLOW SPEED OF THE MEASURED MEDIUM - AIR AND WATER VAPOUR / WATER [m.s-1]

Length of the thermowell/ stem >60 to 100 mm >100 to 160 mm > 160 to 220 mm > 220 to 400 mm
Values for the version with thread
15 / 1.5 8.0 / 1.0 2.5 / 0.6 0.6 / 0.3


Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

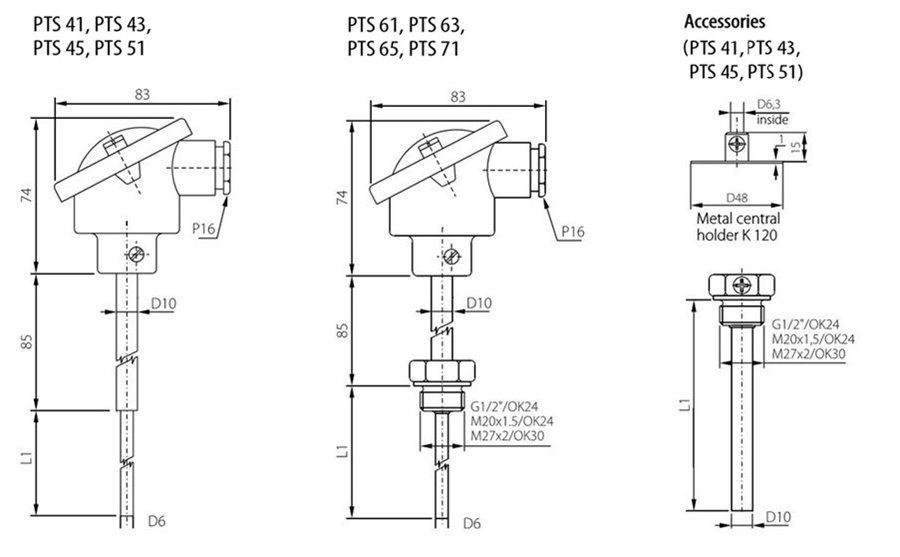

Rozměrový náčrt

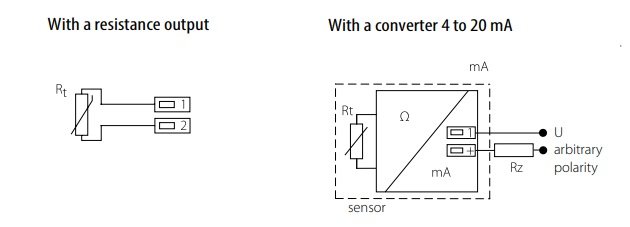

Schéma zapojení

Modifikace

  • option of encasing two sensing elements
  • accuracy class A for the range -50 to 250 °C
  • option of three- or four- wire connection
  • variable stem design - L1 length, materials, diameters, option of thread design
  • thermowell thread type options
