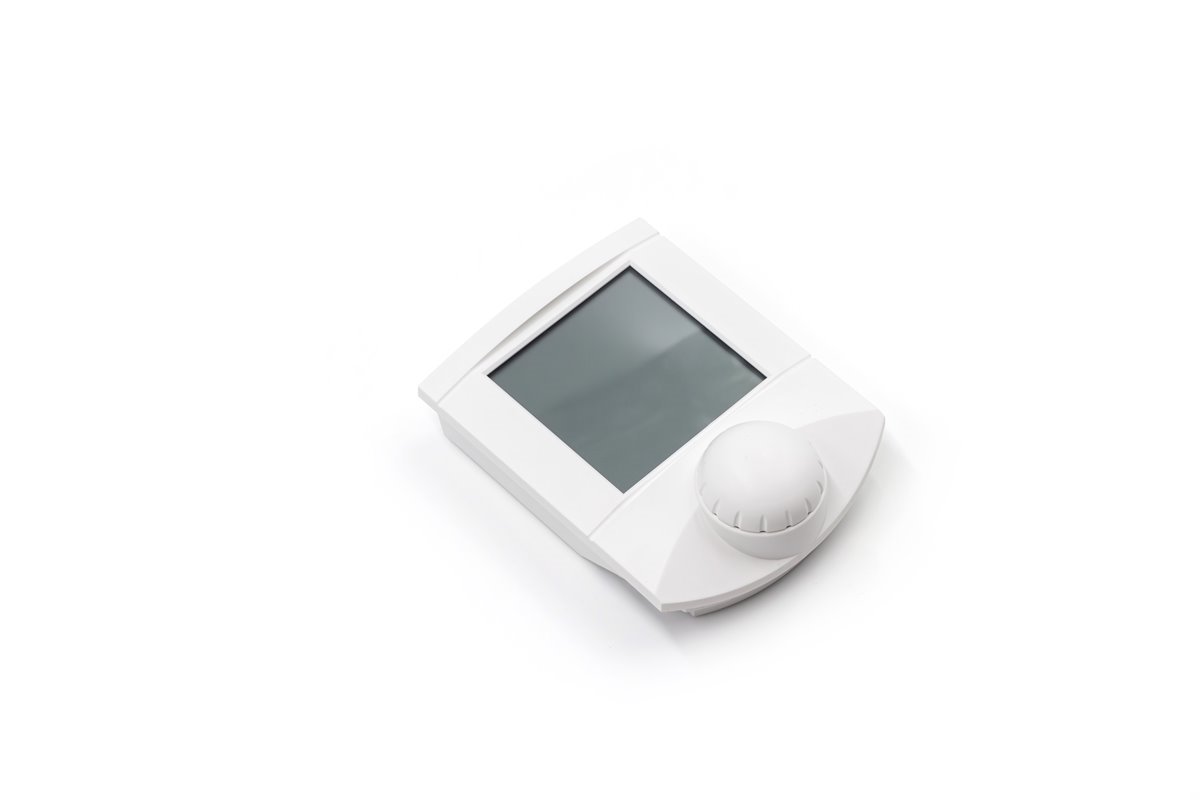

WRU01001 is a wireless, battery powered HMI unit. The device features temperature and humidity, the values of which can be displayed to user on a large LCD display. It features a native modbus map that grants seamless integration into the DDC/SCADA system. The communication is based on the encrypted Midam KFP protocol, which allows to update the device firmware on a wireless basis.

APPLICATION

  • HVAC control
  • measurement of temperature, humidity
  • display of status values
  • wireless integration into SCADA control systems

FUNCTION

The wireless room unit measures temperature and relative humidity. It allows to set the desired temperature setpoint and operating modes using the rotating knob. The values are transmitted through the 868 MHz unlicensed band to the WCOM51 gateway. There is also an option without rotating knob and display available. The room unit features a native modbus map with the direct read and write functionality. The modbus map is available in a separate document. All settings and configuration are also stored in a modbus register, directly in the device. It is necessary to pair the device before first use.

Modbus protocol for WRU01001 for downloading HERE.

SCADA system integration

The controller can be integrated into DDC or SCADA systems directly via the WCOM51 wireless gateway.

PAIRING

To pair your own sensors with the WCOM51 GSM gateway, the freely downloadable KFP-Lite software is available, which communicates with the gateway using the WUSB01 wireless USB configurator. Both devices must be powered and placed in close proximity to each other. Using the search function in the software interface, you can view a list of all available devices in range and assign or modify parameters based on the wireless identification code for each individual device.

Using KFP-Lite, it is possible to change the communication frequency (default value 868.95 MHz).

DOWNLOAD KFP-LITE FOR FREE HERE.

Technické parametry

Sensor typeWRU01001
Power supply 4,5V, 3x main alkaline battery 1,5V, type AA
Consumption idle: <5 uA, avg. typical: 10 uA, max.: 25 mA
Battery life  up to 3 years - batteries are not supplied with the device
Communication868,950 MHz, 100 kbps, WMBUS T1, KFP
868,300 MHz, 32 kbps, WMBUS S1, KFP
868,100 MHz, 100 kbps, KFP
869,525 MHz, 100 kbps, WMBUS C, KFP
868,300 MHz, 38 kbps, KFP
Protocol WMBUS (EN 13757-4), KFP (dual stack)
Encryption AES 128 PCBC, EN 13757-4
RF power +10 to - 20 dBm, step 5 dB
Antenna integrated
Communication range 100 m in free space, 30 m in buildings
Mechanical and dimensions 90 x 115  x 30 mm
enclosure ABS, IP 20 in accordance with EN 60529, as amended

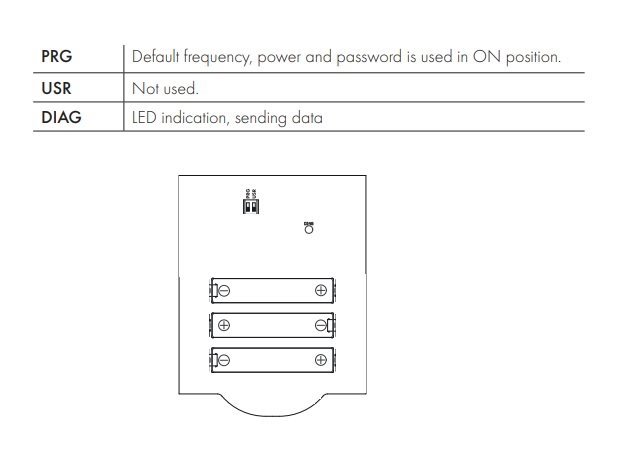

2 x DIP switch (INIT mode, USR mode)
Temperature measurement range
-20 to 55 °C, ± 0,5 °C
Humidity measuring range
10 to 90 % rH, ±3% rH
Temperature setpoint
configurable, ± 10 to ± 1 K
Display
reflexive segmented LCD 60x60 mm
Ambient conditions-5 to 45 °C, 5 % to 95 % rH (EN 60721-3-3 class 3K5)

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

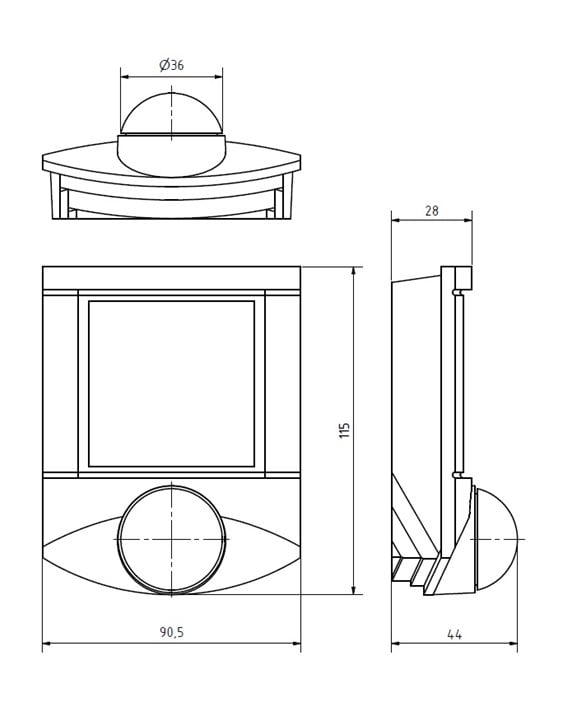

Rozměrový náčrt
