TR 021F
diameter 6 mm, -50 °C to 150 °C

TR 021F
diameter 6 mm, -50 °C to 150 °C

TR 021F
diameter 6 mm, -50 °C to 150 °C
On request

BBB

--%>

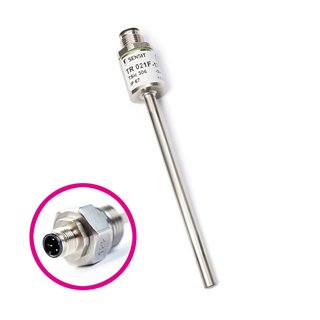

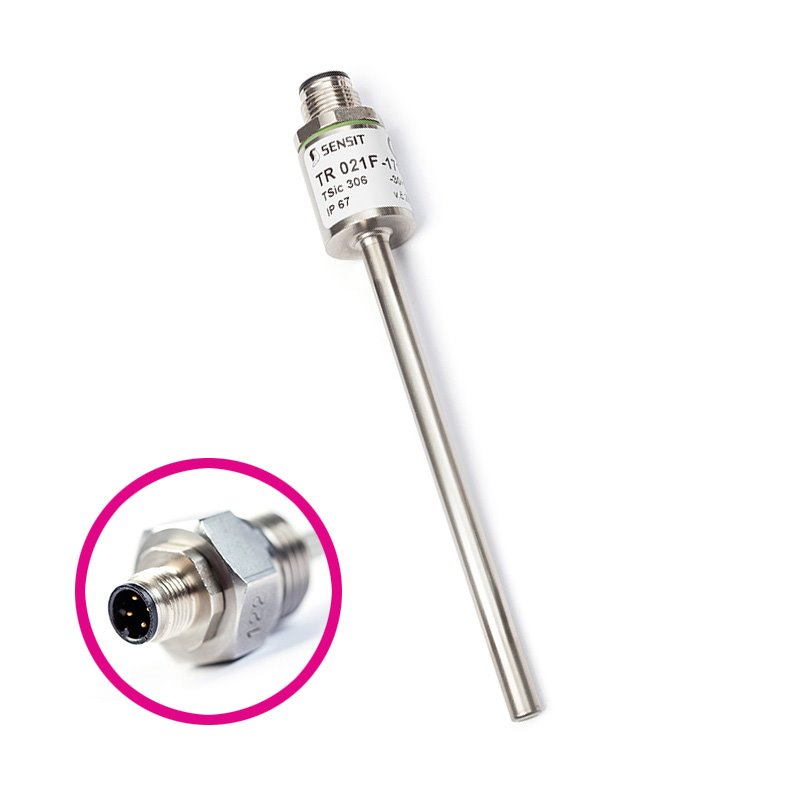

These resistance temperature sensors TR021F with a connector are designed for temperature measurements of gaseous or liquid substances. The temperature range is -50 to 150 °C and these limits must not be exceeded even for a brief period. The temperature sensors with a connector consist of a metal case, in which the temperature sensing element is placed, and Lumberg M12 connector, which is an integral part of the case. The temperature sensors with a connector meet ingress protection IP 67 according to EN 60529, as amended and they are designed for temperature measurement in pipelines.

The temperature sensors with a connector are intended to be used in operation in chemically non-aggressive environment, the use must be chosen with regard to temperature and chemical resistance of the case and the connector.

ACCESSORIES

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.



Technické parametry

Sensor typeTR 021F
Measuring range
-50 to 150 °C (can be limited by the type of a sensor, determine in documentation)
Type of sensing element
all types
(Pt 100, Pt 1000, Ni 1000, Ni 10000,Ni 2226=T1, NTC, PTC, KTY, TSiC, DALLAS and so on)
Ingress protection
IP 67 in accordance with EN 60529, as amended
Case material

stainless steel DIN 1.4301

Diameter of case
6.0 ± 0.1 mm
Length of case (L)20 to 500 mm
Type of the connector
LUMBERG RSFM4, M12
Ambient temperature around connector
-25 to 80 °C
Wire resistance
0.254 Ω / 1 m at a temperature 25 °C for 2-wire connection
Time responseτ0,5 < 7 s; τ0,9 < 9 s (in flowing water 0.4 m.s-1)
Weight0.04 kg for length 60 mm

Operation conditions:

  • ambient temperature around connector: -25 to 80 °C
  • relativ ambient humidity: 10 to 100 %
  • atmospheric pressure: 70 to 106 kPa
  • maximum speed of water/air flow or water vapour flow when measuring the temperature in pipelines:
Length of the case in mm Flow speed of water / air
without a thermowell
Flow speed of water / air
with a thermowell
> 70 to 120 1.5 / 15 m-1 3.0 / 30 m-1
> 120 to 180 1.0 / 8.0 m-1 2.0 / 15 m-1
> 180 to 240 0.6 / 2.5 m-1 1.2 / 5 m-1
> 240 to 420 0.3 / 0.6 m-1 0.8 / 1.6 m-1

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

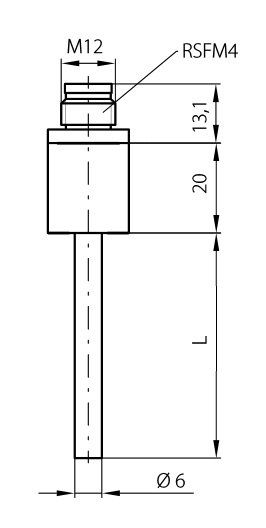

Rozměrový náčrt

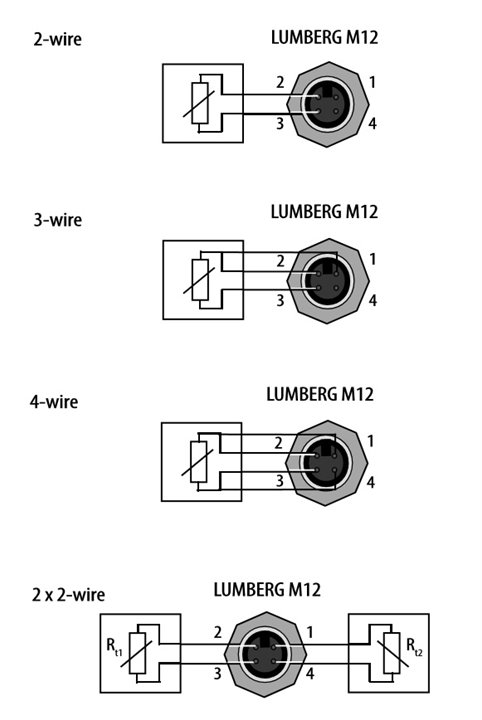

Schéma zapojení

Modifikace

  • variable stem design in area - length L, material and diameter
  • accuracy class A (except sensors Ni 10000/5000, Ni 10000/6180, T1 = Ni 2226, thermistor NTC 20 kΩ)
  • non-standard temperature sensors (DALLAS, TSic, KTY, SMT, etc.) are possible to encapsulate
  • thread is possible to change compared to the types offered as standard
