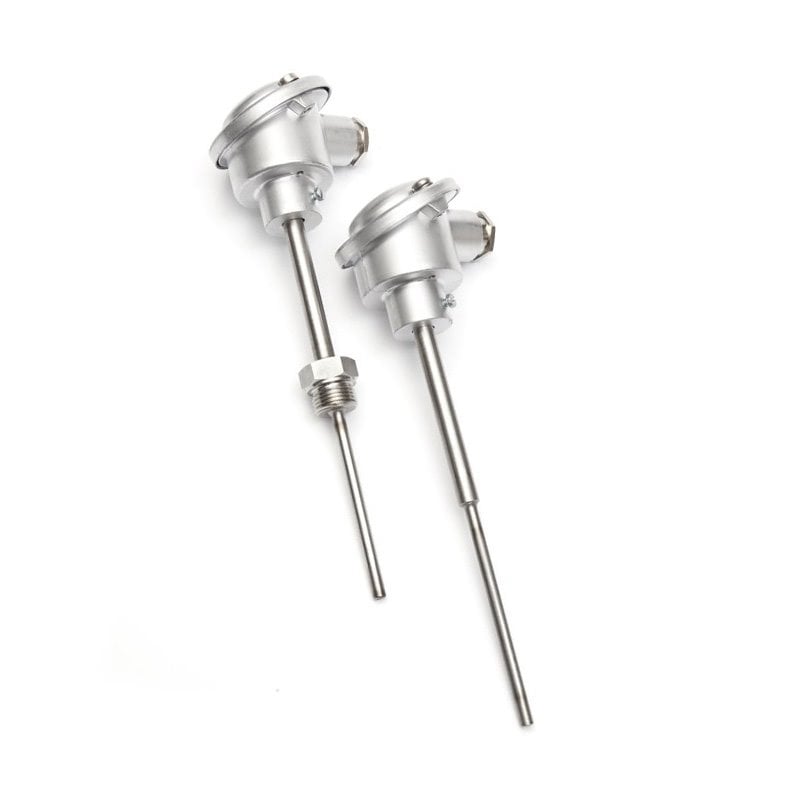

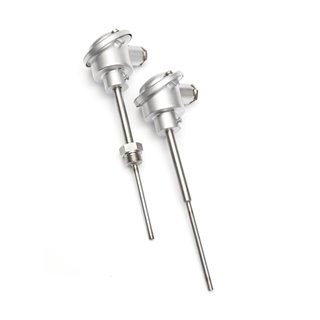

Thermocouple with connection head
up to 400 °C diameter of stem 6 mm
On request

BBB

--%>

These thermocouple temperature sensors are designed to measure temperatures up to 400 °C. When combining sensor and stainless steel centre holder or thermowell, supplied as accessories, the sensors are possible to be used for temperature measurement in various applications in the industrial environment, for example even as pressure equipment within the meaning of the Government Regulation No. 26/2003 Coll. as amended. Maximum permitted operating pressure is 6.3 MPa (applies for case maximum length of up to 300 mm). The thermocouple temperature sensors are possible to be used for any control systems compatible with selected thermocouple type. The standard measurement range is -50 to 400 °C and these limits must not be exceeded even for a brief period. Maximum temperature around the head is 100 °C.

The thermocouple temperature sensors are intended for operation in chemically non-aggressive environment.

ACCESSORIES

DECLARATION, CERTIFICATION, CALIBRATION

  • EU Declaration of Conformity – in accordance with Act 22/1997 Coll. on technical requirements on products as amended.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.



Technické parametry

Sensor type with smooth stem
Sensor type with welded-on thread
TCS 4K
TCS 6K
TCS 4J
TCS 6J
Type of thermocouple thermocouple "K" thermocouple "J"
Measuring range -50 to 400 °C


Other parameters
Type of thermocouple
"J" and "K", single, double
Accuracy classstandardly 2 in accordance with EN 60584, as amended and DIN 43 710, further 1
Versionwith an isolated measuring point
Diameter of the stem6 mm
Standard length of the stem50, 100, 160, 220, 280, 340 and 400 mm
Nominal pressure of the stemPN 63 (with a thread) up to 400 °C and length of the stem 300 mm
Thread types for variant with threadG 1/2"; M 20 x 1.5; M 27 x 2; others on customer's requirements
Material of the stemstainless steel DIN 1.4301
Recommended wire cross section0.35 to 1.5 mm2
Ingress protectionIP 54 acc. EN 60529
Type of connection head
LIMATHERM B
Material of connection headaluminium alloy
Ambient temeprature around the connection head-30 to 100 °C
Weight0.25 kg for length 100 mm

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

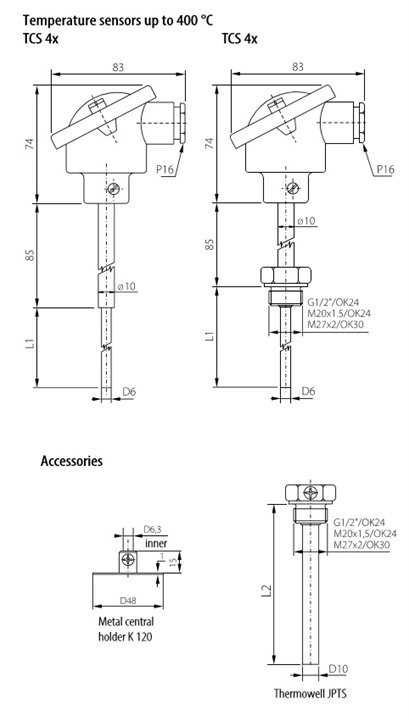

Rozměrový náčrt

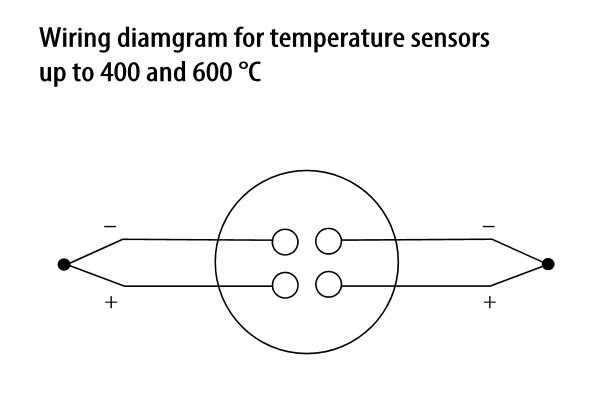

Schéma zapojení

Modifikace

  • variable stem design - length L1, diameter, case material
  • type of thermowell thread

Soubory ke stažení

T01.03en.pdf T01.03en.pdf
1

2

3
*

4
*
