Temperature sensors for heating systems control


In the period of permanent reduction of costs connected with consumption of heat for heating of buildings it is very important to provide quality regulation of temperature and temperature sensors are just the inherent component of such regulation. The company Sensit s.r.o. reflects requirements of producers of various regulation systems and a regulator used for regulation of boilers, radiators and fired stoves, and engages in development and production of temperature sensors to suit to the ordered applications.

The most important customers of the company Sensit s.r.o. include manufacturers of conventional boilers for combustion of pellets and solid fuels and fired stoves, companies engaged in ecological heating as well as installation companies that are supported by sale warehouses of our business representatives within territory of the Czech Republic and Slovakia and other countries, also outside the EU.

MEASUREMENT OF TEMPERATURE IN A ROOM

Measurement of outdoor temperature (S 110) and at the same time measurement of interior temperature (S 100) is integral part of equithermal regulation. Based on measurement of these temperatures the regulation system executes setting of temperature of return water. This also reflects external thermal effects such as sun exposure, heat released during cooking in the kitchen, etc.

S110
S110
S110
K 110
K 110
K 110
S 100
S 100
S 100

MEASUREMENT OF TEMPERATURE OF RETURN WATER

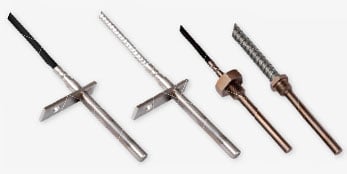

Clamp-on temperature sensors with heads or cables or directly immersible types, either in a combination with a well or a central bracket, or the types providing fast response can be used for regulation of return water. Correct values of temperature can regulate temperature of heating or return water.

Clamp-on sensors
Clamp-on sensors
Clamp-on sensors
Immersible sensors
Immersible sensors
Immersible sensors

 MEASURMENT OF TEMP. OF FUMES AND FLUE GASES

TR XX
TR XX
TR XX

Depending on temperature of flue gases there can be determined thermal balance of stoves with possibility to regulate air supply. Regulation of air supply can simply control the combustion process and reduce a risk of overheating of the stove and possible ignition of soot in the chimney. Temperature sensors Sensit are construed for direct measurement of temperature of flue gases flowing to the chimney.

REGULATION SYSTEMS

In cooperation with producers of regulation systems, our company prepared adequate temperature sensors either in a set for complete equithermal regulation or individual types „only“, suitable for measurement of temperature of water in piping using immersible sensors or using a „clamp-on“ system. Such regulation is based on measure- ment of outdoor temperature (series S 110), where temperature sensors Sensit, due to their construction, are quality indicator of temperature changes. However, clamp-on temperature sensors are also very suitable component because their construction prevents effects of ambient temperature and thanks to their quality design these sensors minimise measurement errors.
