UNIVERSAL PROGRAMMABLE CONVERTERS FOR DIN RAILS

UNIVERSAL PROGRAMMABLE CONVERTERS FOR DIN RAILS

UNIVERSAL PROGRAMMABLE CONVERTERS FOR DIN RAILS
On request

BBB

--%>

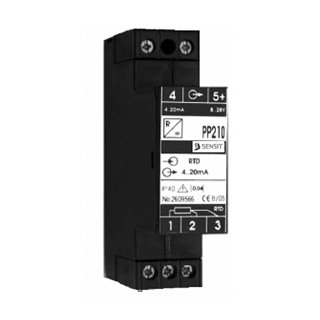

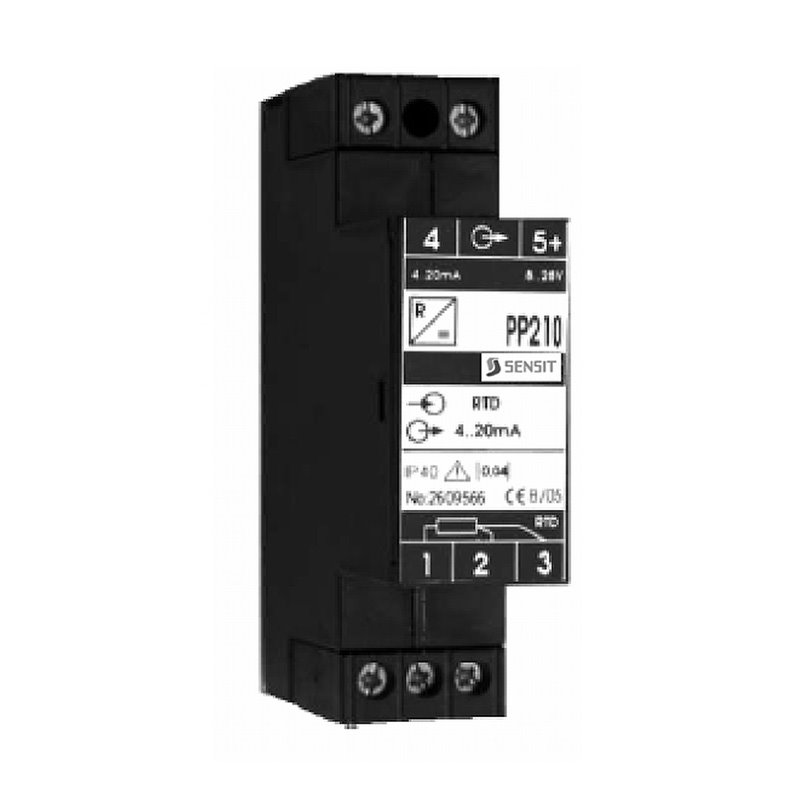

Programmable measuring converters are designed for converting industrial signals from resistant temperature sensors (PP210, PstID, sUG2) or thermocouples (PstID, sUG2) into a unified industrial signal of 4 to 20 mA.

Technické parametry

Converter typePP210SUG2
InputPt 100/3850
Pt 1000/3850
Ni 100/5000 and 6180
Ni 1000/5000 and 6180
Pt 100/3850
Pt 1000/3850
Pt 100/6180
Ni 1000/6180
thermocouple J, L, K, T, S, B, E...
Input connection2 or 3-wire2 or 3-wire
Output4 to 20 mA4 to 20 mA
Galvanically separated outputnoyes
Measuring rangeRandom, min. 10 °C marginRandom, min. range in°C according to the sensor type
Linearizationyesprogram-controlled
Power supply (U)
8 to 28 V9 to 30 V
Maximum operating temperature range-20 to 80 °C-20 to 80 °C

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

Rozměrový náčrt

Schéma zapojení

Modifikace

Soubory ke stažení

201.04en.pdf 201.04en.pdf
