TSIC - TEMPERATURE SENSORS WITH A CABLE AND A DIGITAL OUTPUT

TSIC - TEMPERATURE SENSORS WITH A CABLE AND A DIGITAL OUTPUT

TSic / ZacWire

TSIC - TEMPERATURE SENSORS WITH A CABLE AND A DIGITAL OUTPUT
On request

BBB

--%>

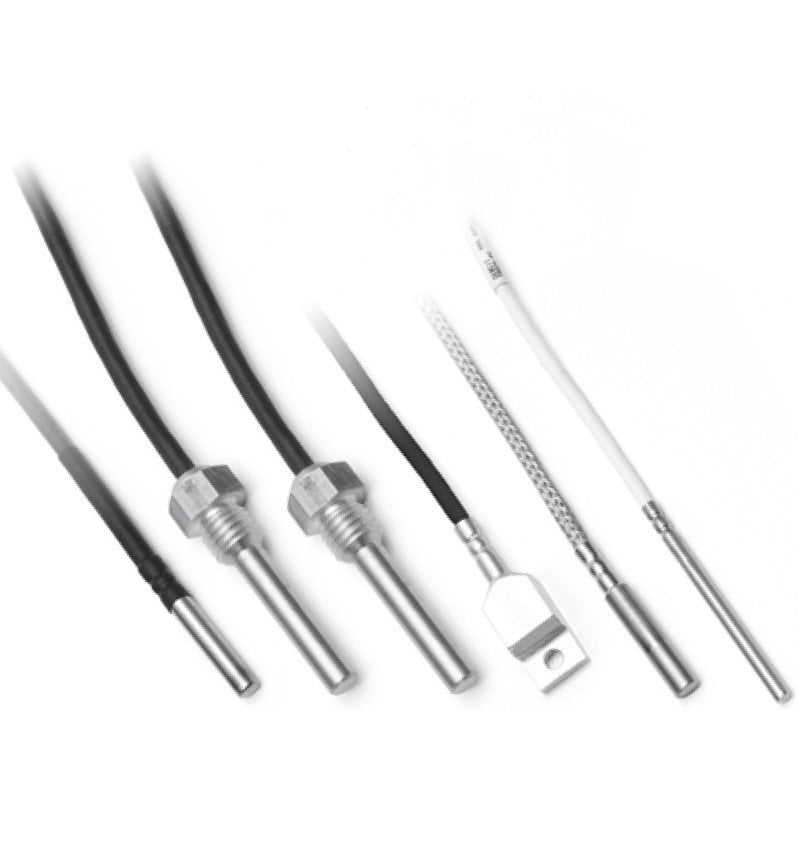

Temperature sensors with a cable and a digital output TSiC are designed for contact temperature measurement of solid, liquid and gaseous substances in various industries, e.g. in the food industry, chemical and refrigeration industries etc. The sensors are fitted with TSiC 206, 306, 506 and 716 series of temperature sensors with a digital output, communication protocol is ZACWire. The temperature range of sensor use is defined in the table of technical parameters for the individual versions of sensors and temperature sensors.

The basic versions of these temperature sensors are:

  • TG 8 and TG 8J - sensor versions with a smooth case
  • TG 2, TR 011 - sensor versions with a thread
  • TR 141A and TR 141E- contact temperature sensor versions

The sensors are designed to be operated in a chemically non-aggressive environment, the use must be chosen with regard to the temperature and chemical resistance of the sensor head.

ACCESSORIES

DECLARATION, CERTIFICATION, CALIBRATION

  • The manufacturer issues an EU Declaration of Conformity.
  • Calibration - The entire production passes through a final metrological inspection, which is carried out by comparing with standards or working measuring instruments. Continuity of the standards and working measuring instruments is ensured within the meaning of Section 5 of Act No. 505/1990 on Metrology. The manufacturer offers to supply the sensors calibrated in the SENSIT s.r.o. laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an accredited laboratory.

Technické parametry

BASIC DATA
Output signal / temperature sensing element ZACWire communication / TSiC x06
Type / Accuracy of the temperature sensing element TSiC 206 ± 0.5 °C in range 10 to 90 °C
TSiC 306 ± 0.3 °C in range 10 to 90 °C
TSiC 506 ± 0.1 °C in range 5 to 45 °C
TSiC 716 ± 0.07 °C in range 25 to 45 °C
Connection of the temperature sensor 3-wire
Supply voltage U 3 to 5.5 V DC
Rated supply voltage Un 3.3 V DC
Supply current 30 µA
Insulation resistance > 200 MΩ at 500 V DC, 25 ± 3 °C
Supply cable types and their temperature resistance silicone, - 50 to 200 °C
PVC,     - 40 to 105 °C
PVC,     - 30 to 80 °C
PTFE,    -50 to 260 °C
Weight acc. to the design and the cable length; min. 0.15 kg


TG 8, TG 8J series
Measuring range *
TSiC 206 and 306: -30 to 100 °C
TSiC 506 and 716: -10 to 60 °C
Case diameter 5.7 ± 0.1 mm
Case length
40 to 200 mm
Case material 40, 50, 60 mm: stainless steel DIN 1.4571
other: stainless steel DIN 1.4301
Ingress protection ** IP 67 in accordance with EN 60529, as amended (for a silicone cable)
Resistance to pressure
(applied on the stem with medium)
without a thermowell PN25
with a thermowell PN 63
Time response τ0.5 < 9 s (0.2 m.s-1 in running water)


TG 2, TR 011 series
Measuring range * TSiC 206 and 306: -30 to 100 C
TSiC 506 and 716: -10 to 60 °C
Case diameter 4, 6, 8, 10, and 12 ± 0.1 mm
Case length 20 to 500 mm
Case material stainless steel DIN1.4301, DIN 1.4404, DIN 1.4571
Ingress protection ** IP 67 in accordance with EN 60529, as amended (for a silicone cable)
Resistance to pressure
(applied of the stem with the medium)
diameter 4 to 6 mm: PN 25
diameter 8 to 12 mm: PN 63
Time response diameter 4 mm: τ0.5 < 5 s (0.2 m.s-1 in running water)
diameter 12 mm: τ0.5 < 35 s (0.2 m.s-1 in running water)


TR 141, TR 141E series
Measuring range * TSiC 206 and 306: -30 to 100 °C
TSiC 506 and 716: -10 to 60 °C
Case diameter cuboid-shape, 12 x 8 mm
Case length 40 to 60 mm
Case material stainless steel DIN 1.4301 or Al (Duralumin) alloy
Ingress protection ** IP 50 to IP 67 in accordance with EN 60529, as amended
Time response
(on a smooth surface without paste)
stainless steel DIN 1.4301: τ0.5 ≤ 10 s
duralumin: τ0.5 ≤ 8 s

*) Measuring range may be limited according to the type of the supply cable used
**) Ingress protection may be adjusted according to the type of the cable used

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

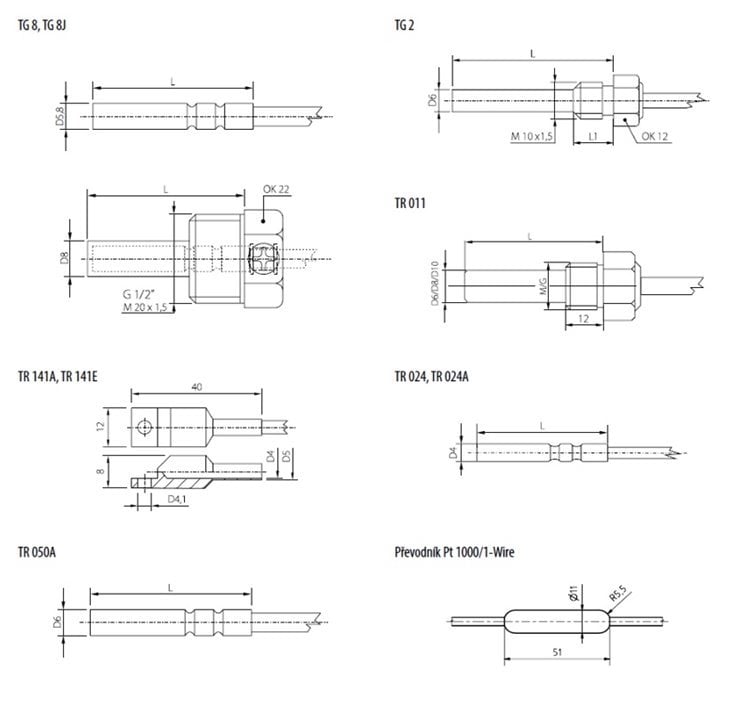

Rozměrový náčrt

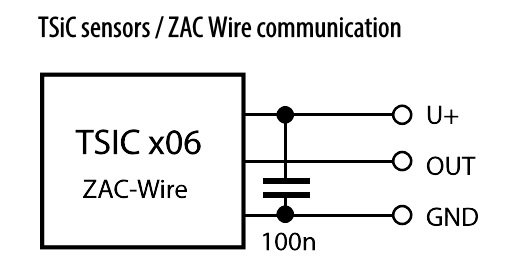

Schéma zapojení

Modifikace

  • change of a sensor standard length and/or case material
  • change of a version and a cable design type
  • change of a case design according to specific requirements

Soubory ke stažení

112.01en.pdf 112.01en.pdf
