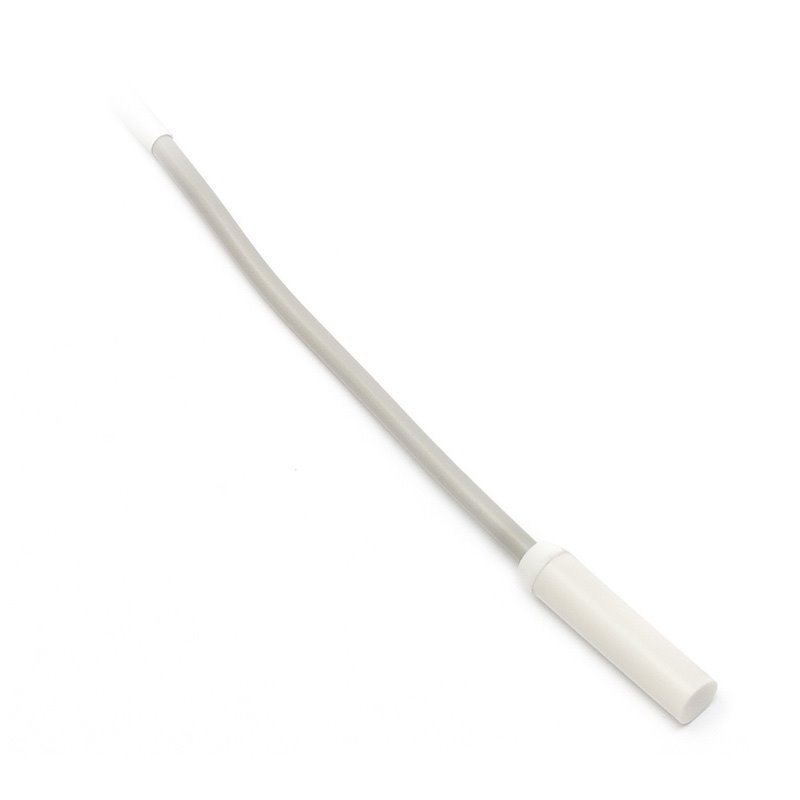

Temperature sensors TR 152 in the plastic case are intended for temperature measurements of gaseous, eventually liquid materials. For long-lasting temperature measurements (especially at the temperatures over 90 °C) there is better to use the sensor with thermowell-combination. The sensors have always plastic polyamid case in which the temperature sensing element is located.

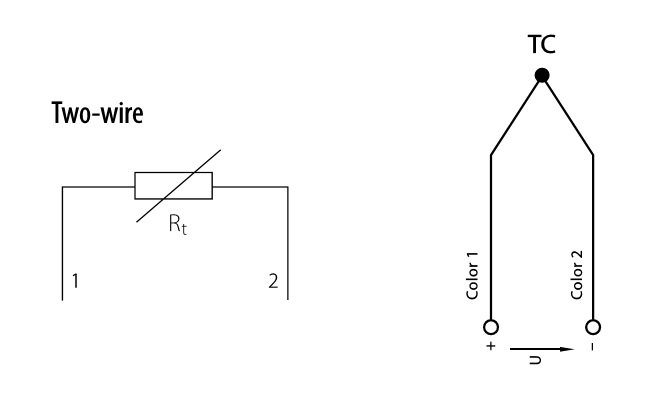

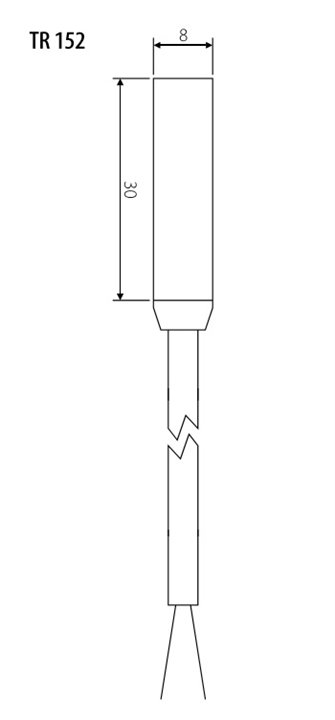

The diameter of the case TR 152 is 8 mm. All types of thin layer resistence-type sensing elements made by company SENSIT s.r.o. can be used. The wiring of the sensors is always 2-wire.
Material of the case has medium resistivity to atmospheric aging, it resists oils, fuels, hydraulic liquids, alifatic and aromatic hydrocarbons, esters, ketons and slight alcalis. Material is not resistant to acids, strong alcalis and chlorinated hydrocarbons.
ACCESSORIES
DECLARATION, CERTIFICATION, CALIBRATION
- Manufacturer provides EU Declaration of Conformity.
- Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.
