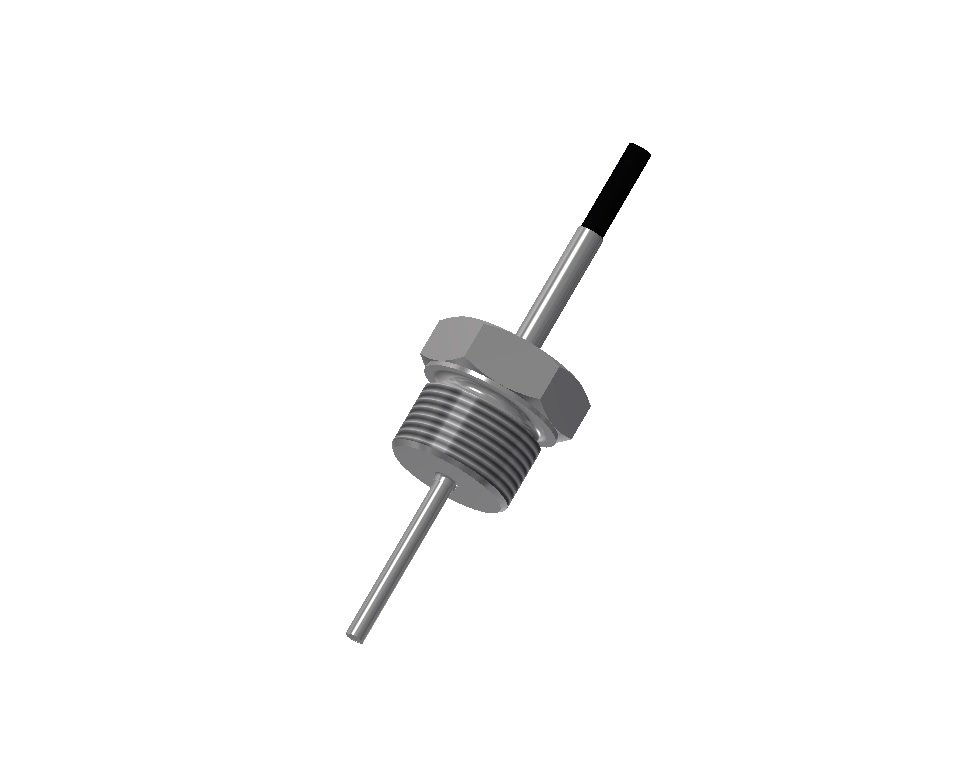

TR 129
diameter 4 mm, -50 °C to 250 °C

TR 129
diameter 4 mm, -50 °C to 250 °C

TR 129
diameter 4 mm, -50 °C to 250 °C
On request

BBB

--%>

These resistance temperature sensors are designed to measure the temperature of gaseous or liquid substances. The maximum temperature range of use of the sensors is -50 to 250 °C. Used type of lead-in cable has silicone insulation and shielding. The production technology and diameter of the case enable quick response to changes in temperature even up to a temperature of 250 °C. The sensors are designed for use in a chemically non-aggressive environment. The method of use must be chosen with regard to the temperature and chemical resistance of the case and lead-in cable.

ACCESSORIES

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaratin of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.



Technické parametry


Sensor typeTR 129
Measuring range-50 to 250 °C (can be limited by the sensing element, determine in documentation)
Type of sensing element*Pt, Ni, NTC, TCK, TCJ
Ingress protectionIP 67 in accordance with EN 60529, as amended
Thread / OKaccording to customer
Case materialstainless steel DIN 1.4301
Diameter of case4 mm
Length of case L100 to 300 mm
Lead-in cable**
shielded silicone 2 x 0.22 mm2
shielded silicone 4 x 0.22mm2
Wire resistance
0.16 Ω for 1 m of cable for 2-wire connection
Time response
τ0.5 < 5 s (in flowing water at 0.2 m.s-1)
Weight0.2 kg for 50 mm housing length and 5 m cable

*) Certain technical specifications of thermocouple sensors (lead wires, IP rating, etc.) may differ with different types.
**) The supply cable is 50 cm long, protected with stainless-steel armoured hose with 8 mm in diameter.
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

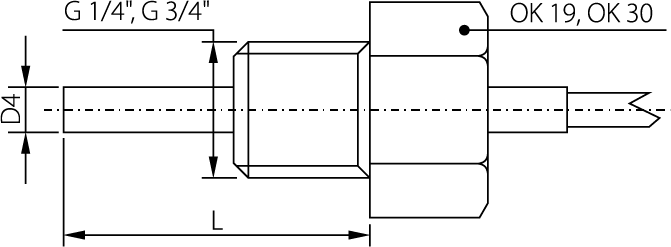

Rozměrový náčrt

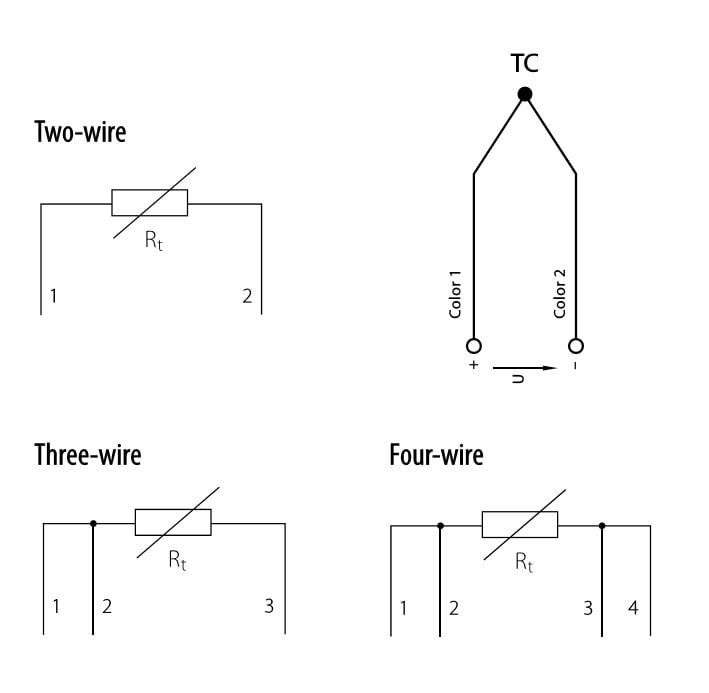

Schéma zapojení

Modifikace

  • possibility to encase two sensing elements
  • variable stem design in the area - L length, case material
  • accuracy class A (with the exception of sensors Ni 10000/5000, Ni 10000/6180, T1 = Ni 2226, thermistor NTC 20 kΩ)
  • possibility of two or three-wire connection
