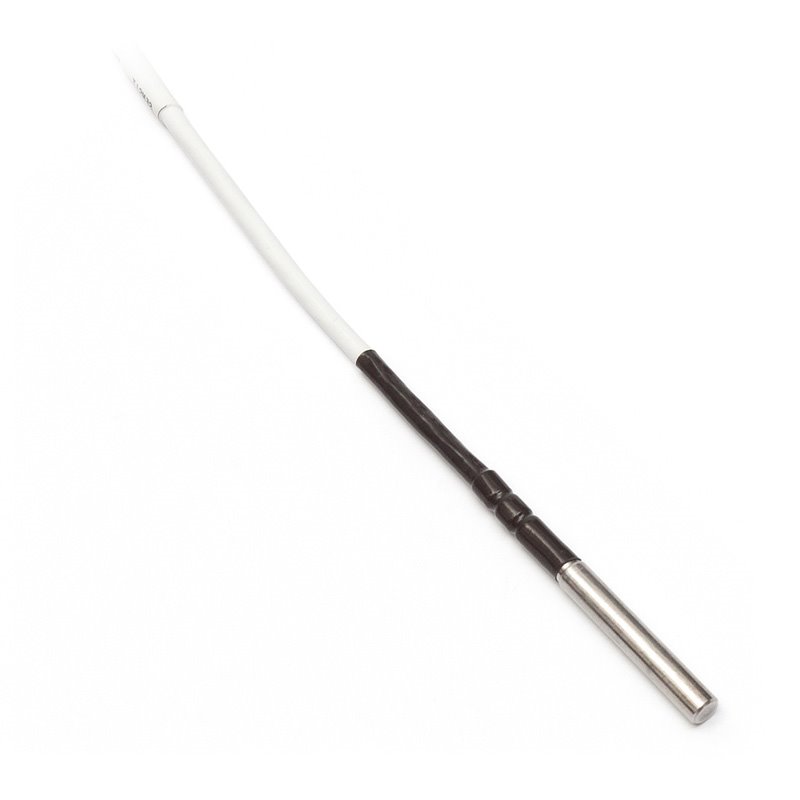

TR 125B
diameter 5 mm, -190 °C to 150 °C

TR 125B
diameter 5 mm, -190 °C to 150 °C

TR 125B
diameter 5 mm, -190 °C to 150 °C

CONFIGURATOR

CONFIGURE AND REQUEST

21495
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

These resistance temperature sensors are designed for contact measurement of the temperature of gaseous, liquid or solid substances. Given the materials used and production technology, these sensors may also be used under very low temperatures. The maximum temperature range of use is -190 to 150 °C, where accuracy class B in accordance with EN 60751, as amended is ensured within the range of -100 to 150 °C.

The method of use must be chosen with regard to the temperature, chemical and mechanical resistance of the case and lead-in cable.

ACCESSORIES

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.

Technické parametry

Sensor typeTR 125B
Measuring range
-190 to 150 °C
Type of sensing elementPt 100, Pt 1000
Ingress protectionIP 67 in accordance with EN 60529, as amended
Case materialstainless steel DIN 1.4301
Diameter of case5 ± 0.1 mm
Length of case L50 to 80 mm (in 10 mm)
Lead-in cableshield teflon 4 x 0.14 mm2
Time responseτ0,5 < 6,5 s
τ0,9 < 25 s (in flowing water 0,4 m.s-1)
Weight0.05 kg for 1 m length

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

Rozměrový náčrt

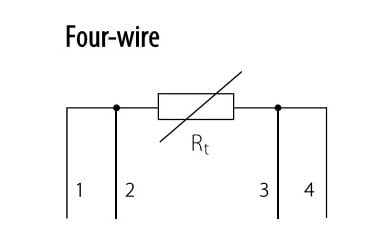

Schéma zapojení

Modifikace

Soubory ke stažení

K28.05en.pdf K28.05en.pdf
