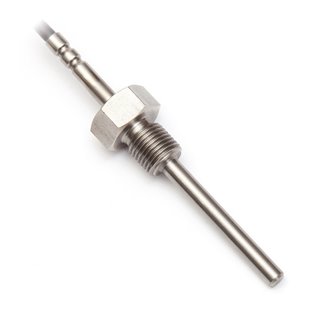

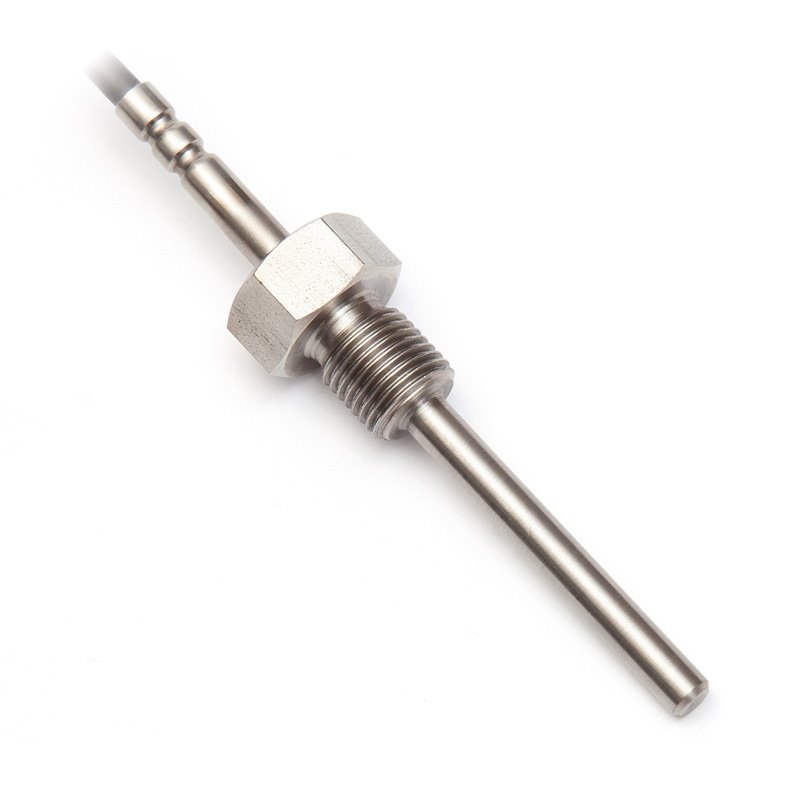

TR 099
diameter 6 mm, -190 °C to 100 °C

TR 099
diameter 6 mm, -190 °C to 100 °C

TR 099
diameter 6 mm, -190 °C to 100 °C

CONFIGURATOR

CONFIGURE AND REQUEST

21488
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

These resistance temperature sensors are designed for contact measurement of the temperature of gaseous, liquid or solid substances. Given the materials used and production technology, these sensors may also be used under very low temperatures. The maximum temperature range of use is -190 to 150 °C, where accuracy class B in accordance with EN 60751, as amended is ensured within the range of -100 to 150 °C. The sensor case include fittings allowing the use of sensor for measuring temperature in pipes, armatures etc. The structure enables faster response to changes in temperature in comparison to sensors with a protective thermowell.

The method of use must be chosen with regard to the temperature, chemical and mechanical resistance of the case and lead-in cable.

ACCESSORIES

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.



Technické parametry

Sensor typeTR 099
Measuring range
-190 to 100 °C
Type of sensing elementPt 100, Pt 1000
Ingress protectionIP 67 in accordance with EN 60529, as amended
ThreadM 10, M 12, G 1/4"
Case materialstainless steel DIN 1.4301, DIN 1.44047
Diameter of case6 ± 0.1mm
Length of case L40 to 80 mm (in 20 mm);
other customized lengths possible
Lead-in cable
shield teflon 4 x 0.14 mm2
Weight0.07 kg for 1 m length

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

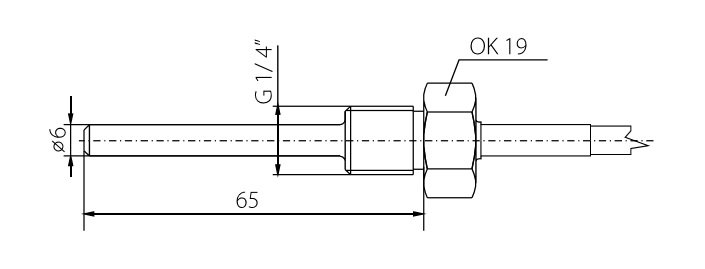

Rozměrový náčrt

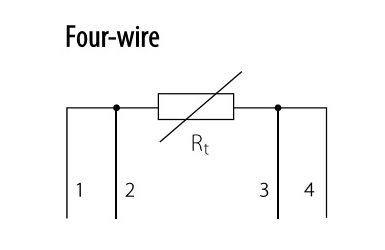

Schéma zapojení

Modifikace

Soubory ke stažení

K27.05en.pdf K27.05en.pdf
