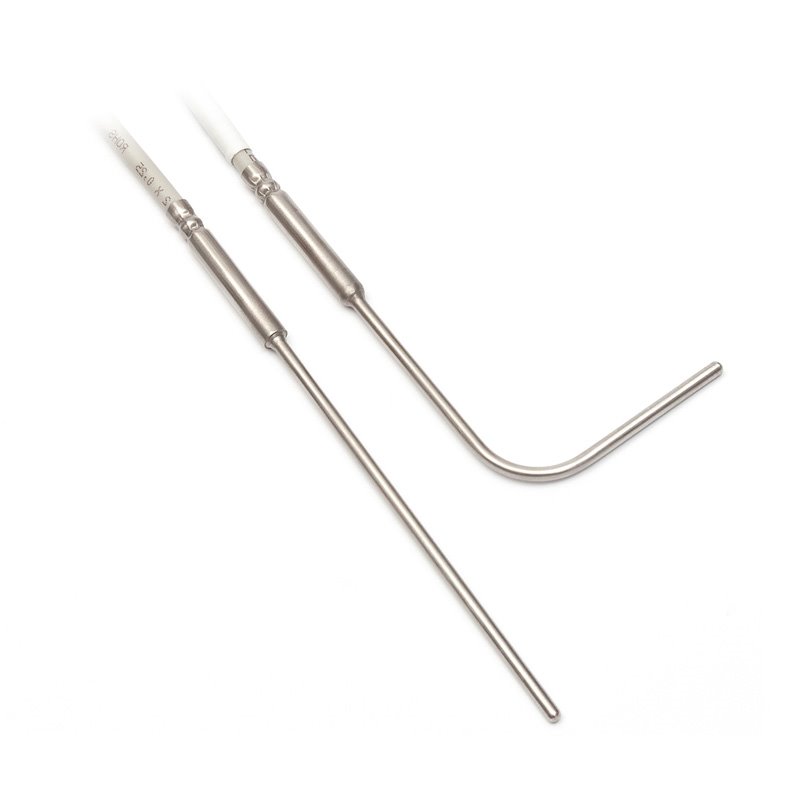

TR 093.0T AND TR 093.0T/A
diameter 3/5.7 mm, -50 °C to 200 °C

TR 093.0T AND TR 093.0T/A
diameter 3/5.7 mm, -50 °C to 200 °C

TR 093.0T AND TR 093.0T/A
diameter 3/5.7 mm, -50 °C to 200 °C
On request

BBB

--%>

These resistance temperature sensors with a cable are designed to measure the temperature of gaseous and liquid substances. The maximum temperature range of use of the sensors is -50 °C to 200 °C. The 3 mm diameter of the case ensures fast response to changes in temperature. Used type of supply cable is PVc or with silicone insulation and shielding. The sensors are designed for universal use, the method of use must be chosen with regard to the temperature and chemical resistance of the case and supply cable.

ACCESORIES

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.



Technické parametry

Sensor typeTR 093.0T, TR 093.0T/A
Measuring range
-50 to 200 °C (can be limited by the sensing element, determine in documentation)
Type of sensing element*Pt 100, Pt 500, Pt 1000, NTC
Ingress protectionIP 67 in accordance with EN 60529, as amended
Case materialstainless steel DIN 1.4301
Diameter of the case3 mm
Length of case L100 to 300 mm
Lead-in cable
shielded PVC 2 x 0225 mm2 or 4 x 0.25mm2
shielded silicone 2 x 0.22 mm2 or 4 x 0.22 mm2
Wire resistance0.16 Ω for 1 m of cable for 2-wire connection - silicone
0.14 Ω for 1 m of cable for 2-wire connection- PVC
Time responseτ0,5< 4 s (in flowing water at 0.4 m.s-1)
Weight0.025 kgfor housing length 80 mm, cable 1 m
Weight for case L0.05 kg for housing length 50mm and cable length 1 m
*) Certain technical specifications of thermocouple sensors (lead wires, IP rating, etc.) may differ with different types.
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

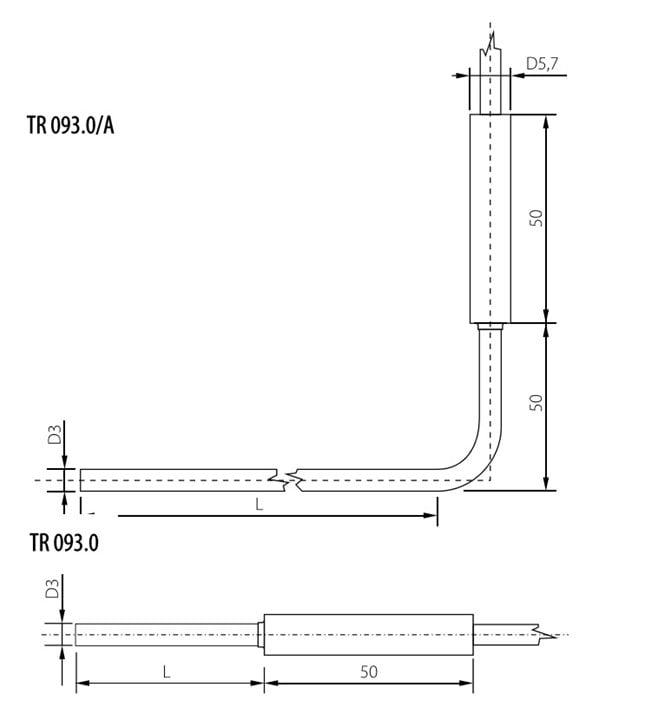

Rozměrový náčrt

Schéma zapojení

Modifikace

  • possibility to encase two sensing elements
  • variable stem design in the area - L length
  • accuracy class A (with the exception of sensors Ni 10000/5000, Ni 10000/6180, T1 = Ni 2226, thermistor NTC 20 kΩ)
  • possibility of three or four-wire connection
  • increased resistance up to 250 °C in the model with a Teflon cable
