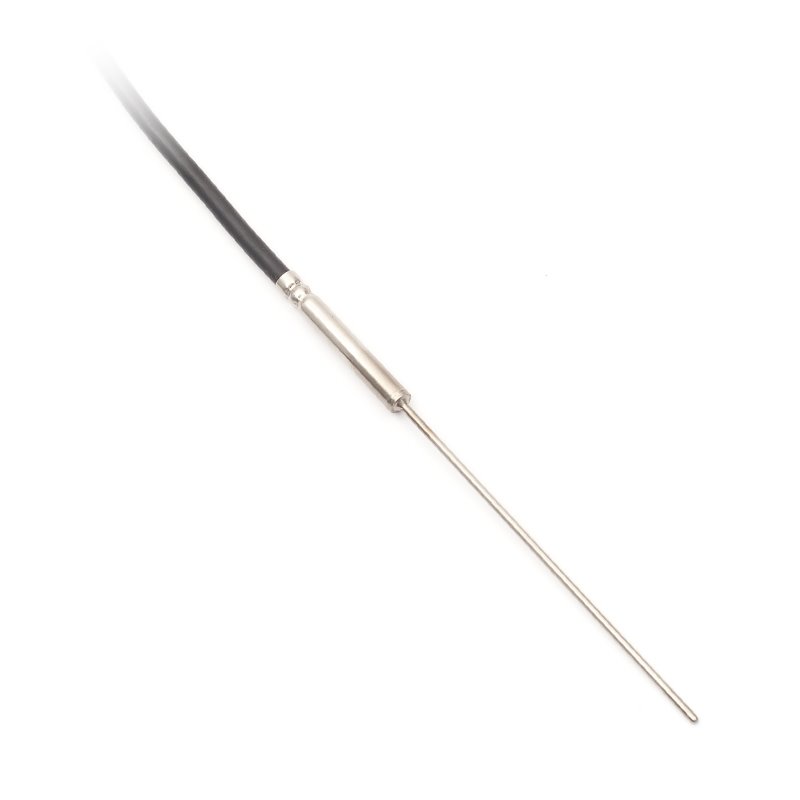

TR 092.0T
diameter 2/5.7 mm, -50 °C to 200 °C

TR 092.0T
diameter 2/5.7 mm, -50 °C to 200 °C

TR 092.0T
diameter 2/5.7 mm, -50 °C to 200 °C

BBB

--%>

These resistance temperature sensors with a cable are designed for contact measurement of the temperature of gaseous and liquid or solid substances. The maximum temperature range is -50 to 200 °C. The 2 mm diameter of the case ensures fast response to changes in temperature. Used type of lead-in cable has teflon insulation without shielding. The sensors are designed for universal use. The method of use must be chosen with regard to the temperature and chemical resistance of the case and lead-in cable. The sensors are also designed for use in a chemically non-aggressive environment.

ACCESORIES

DECLARATION, CERTIFICATES, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – the company SENSIT s.r.o. performs initial calibration of the measuring instruments in accordance with s § 10 of the law 505/1990 within the framework of its manufacturing processes. Relationship of the working measuring instruments is ensured in accordance with § 9, art. 4 of the law. Next - we offer calibration of resistance temperature sensors (in accordance with EN ISO/IEC 17025 standard, as amended) in the temperature range of the stated type of sensor.



Technické parametry

Sensore type TR 092.0T
Measuring range
-50 to 200 °C (can be limited by the sensing element,
determine in socumentation)
Type of sensing element*
Pt 100, Pt 500, Pt 1000
Ingress protection
IP 67 in accordance with EN 60529, as amended
Case material
stainless steel DIN 1.4301
Diameter of the case
2 mm
Length of case L 20 to 100 mm
Lead-in cable
shielded silicone 2 x 0.34 mm2
shielded silicone 4 x 0.22 mm2
Wire resistance
0.16 Ω for 1 m of cable for 2-wire connection
Time response
τ0.5 = 1.8 s τ0.9 = 5.5 s
*) Certain technical specifications of thermocouple sensors (lead wires, IP rating, etc.) may differ with different types.
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

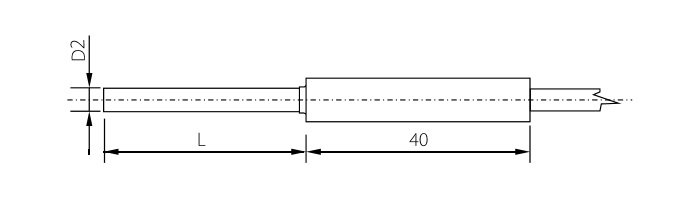

Rozměrový náčrt

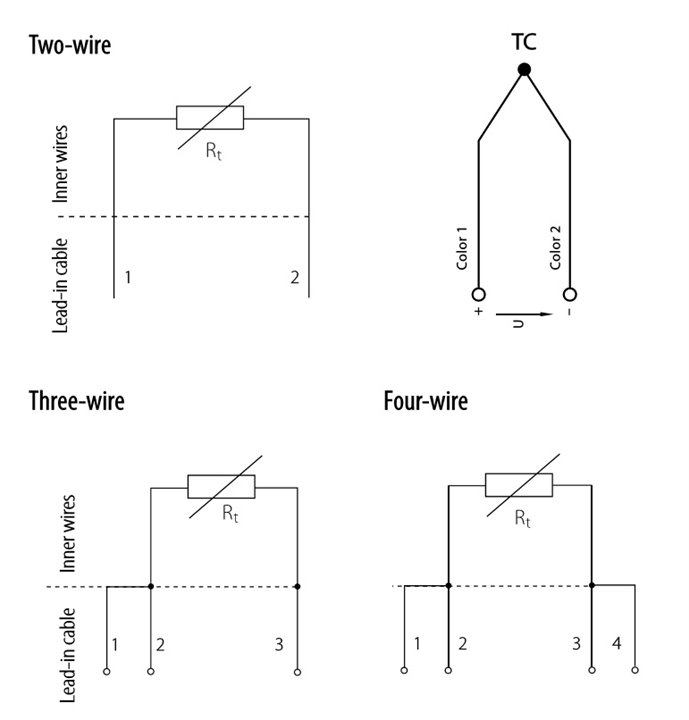

Schéma zapojení

Modifikace

Soubory ke stažení

K30.04en.pdf K30.04en.pdf

Související produkty

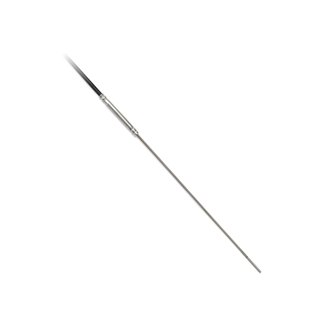

Mineral Insulated Resistance Temperature Sensors
(MGO) diameter 2 mm

Detail Detail

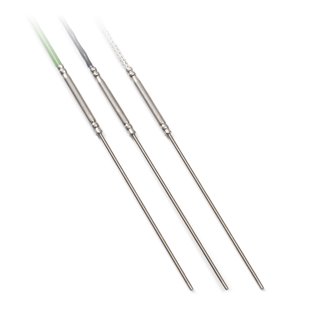

Jacketed thermocouple
