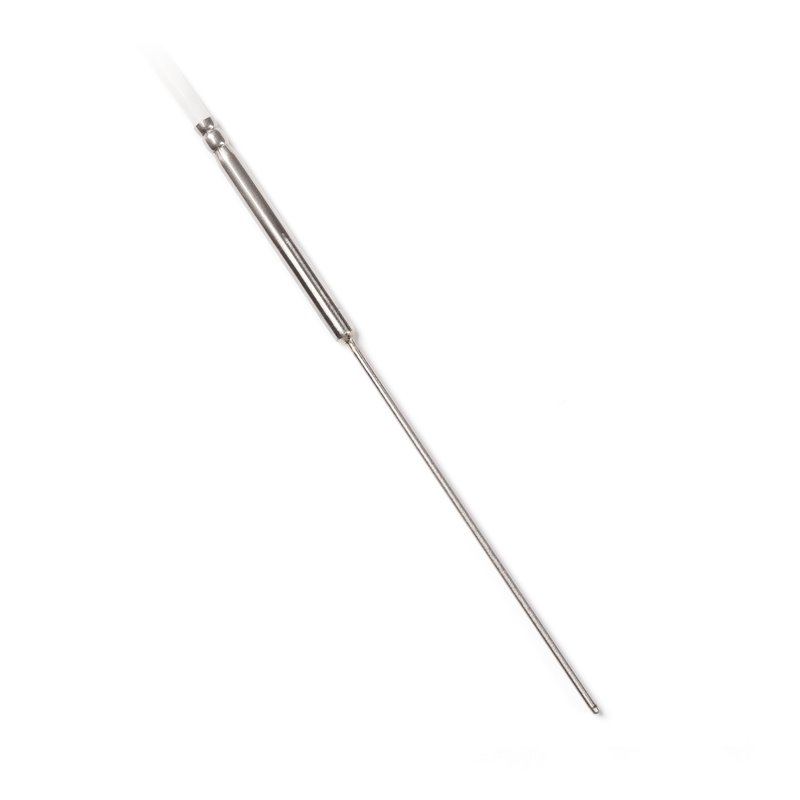

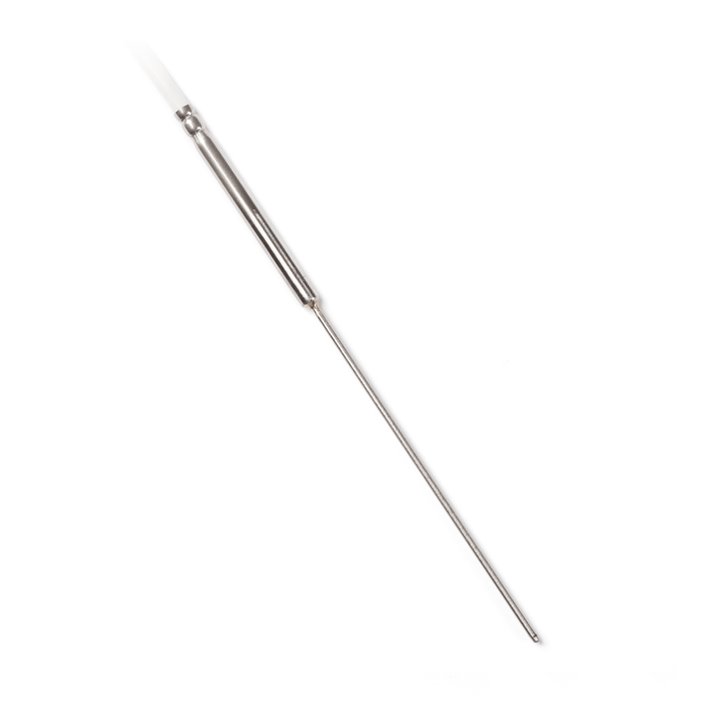

TR 091.5T
diameter 1.5/4.5 mm, -50 °C to 200 °C

TR 091.5T
diameter 1.5/4.5 mm, -50 °C to 200 °C

TR 091.5T
diameter 1.5/4.5 mm, -50 °C to 200 °C
On request

BBB

--%>

These resistance temperature sensors with a cable and thermocouple temperature sensors with a cable are designed for contact measurement of the temperature of gaseous and liquid or solid substances. The maximum temperature range -50 to 200 °C. The 1.5 mm diameter of the case ensures fast response to changes in temperature. Various cable materials with a PVC, silicone of teflon insulation can be used as lead-in cables.The sensors are also designed for use in a chemically non-aggressive environment. The method of use must be chosen with regard to the temperature and chemical resistance of the case and lead-in cable.

ACCESSORIES

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.



Technické parametry

Sensore typeTR 091.5T
Measuring range-50 to 200 °C
Type of sensing element*
Pt 100, Pt 1000, TCK, TCJ
Connection of sensing element2wire (in part of case with ø 1,5 mm)
Connection of extension cables2wire, 3wire, 4wire
Ingress protection
IP 65 in accordance with EN 60529, as amended
Case material
stainless steel DIN 1.4301
Diameter of the case
1.5 mm
Length of case L20 to 80 mm
Wires inside measuring part2 x AWG 32
Lead-in cableshielded silicone 2 x 0.34 mm2 or 4 x 0.22 mm2
shielded teflon 2 x 0.14 mm2 or 4 x 0.14 mm2
Wire resistance
0.16 Ω for 1 m of cable for 2-wire connection (silicone cable)
0.254 Ω for 1 m of cable for 2-wire connection (teflon cable)
Time response
τ0.5 = 1.8 s τ0.9 = 5.5 s
Weight 0.06 kg for 50 mm housing length and 1 m cable
*) Certain technical specifications of thermocouple sensors (lead wires, IP rating, etc.) may differ with different types.
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

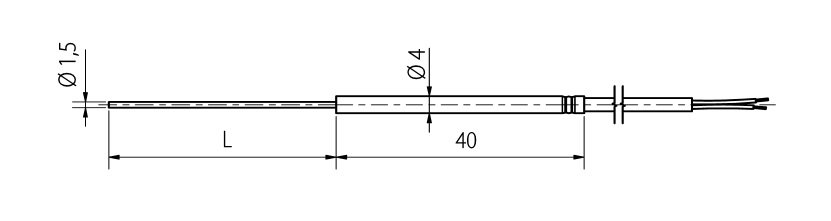

Rozměrový náčrt

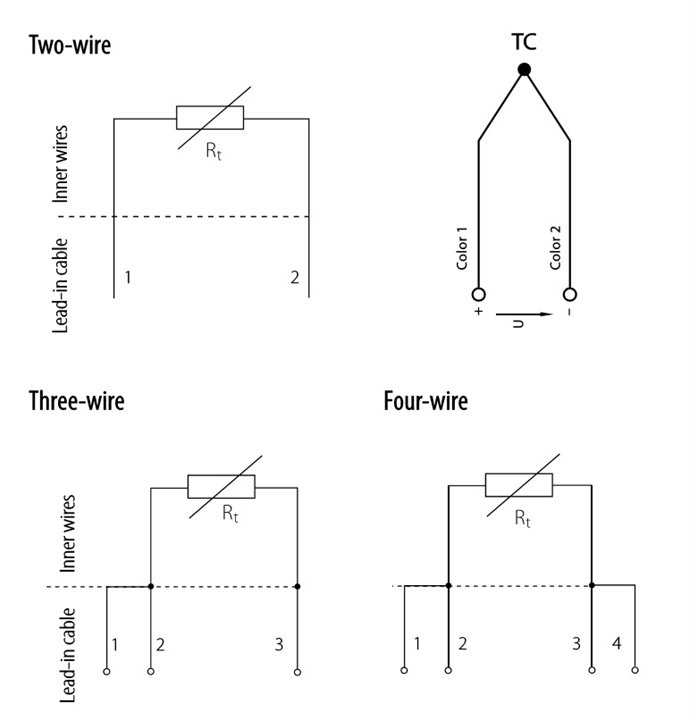

Schéma zapojení

Modifikace

Soubory ke stažení

K34.03en.pdf K34.03en.pdf

Related Products

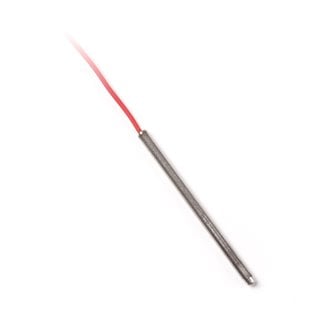

Mineral Insulated Resistance Temperature Sensors
(MGO) diameter 1.5 mm

Detail Detail

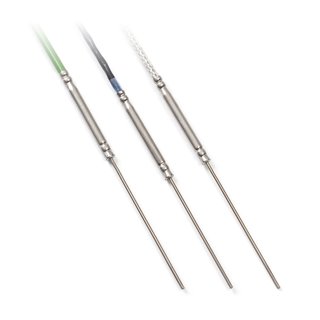

Jacketed thermocouple
diameter 1 mm

Detail Detail

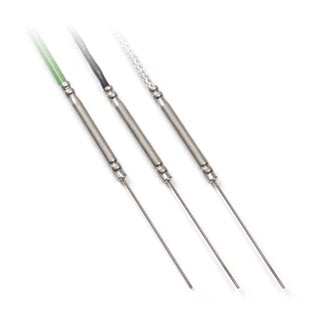

Jacketed thermocouple
