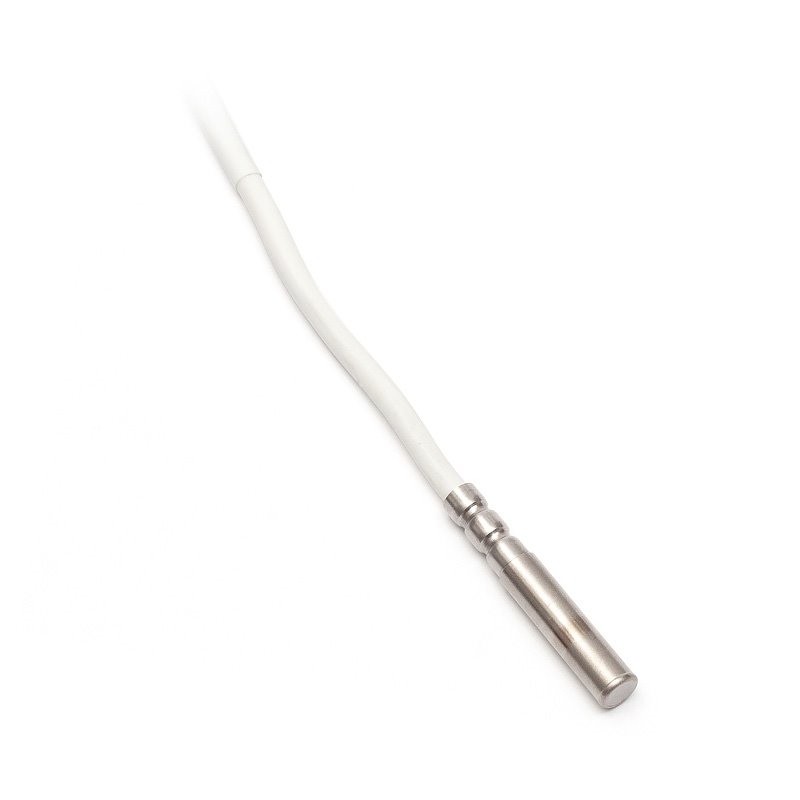

TR 081
diameter 8 mm, -50 °C to 200 °C

TR 081
diameter 8 mm, -50 °C to 200 °C

TR 081
diameter 8 mm, -50 °C to 200 °C

CONFIGURATOR

CONFIGURE AND REQUEST

21387
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

These resistance temperature sensors with a cable and thermocouple temperature sensors with a cable are designed to measure the temperature of gaseous or liquid substances. The maximum temperature range of use of the sensors is -50 °C to 200 °C. The case material can be stainless steel DIN 1.4301 or DIN 1.4571. Used type of lead-in cable has silicone insulation and shielding. The diameter of the case is 8 mm and also enables the encasement of special temperature sensors – KTY, SMT 160, DS 18B20, TSic etc. The sensors are designed for universal use. The method of use must be chosen with regard to the temperature and chemical resistance of the case and lead-in cable.

ACCESORIES

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.



Technické parametry

Sensor typeTR 081
Measuring range
-50 to 200 °C (can be limited by the sensing element,determine in documentation)
Type of sensing element*all types
(Pt 100, Pt 1000, Ni 1000, Ni 10000,Ni 2226=T1, NTC, PTC, KTY,
TSiC, DALLAS, thermocouple K, thermocouple J, thermocouple T and so on)
Ingress protectionIP 67 in accordance with EN 60529, as amended
Case materialstainless steel DIN 1.4301, 1.4571
Diameter of the case8 ± 0.1 mm
Length of case L60 to 200 mm (in 20 mm)
Lead-in cable
shielded silicone 2 x 0.34 mm2
shielded silicone 4 x 0.22 mm2
Wire resistance0.11 Ω for 1 m of cable for 2-wire connection
Time response
τ0.5< 7 s (in flowing water 0.4 m.s-1)
Weight0.04 kg for 40 mm housing length and 1 m cable
*) Certain technical specifications of thermocouple sensors (lead wires, IP rating, etc.) may differ with different types.
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

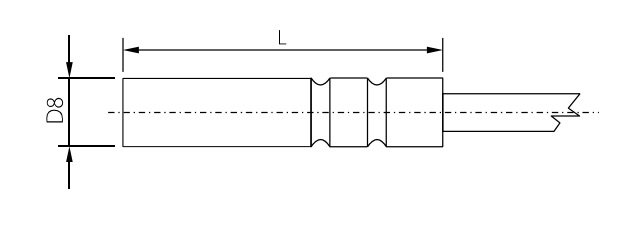

Rozměrový náčrt

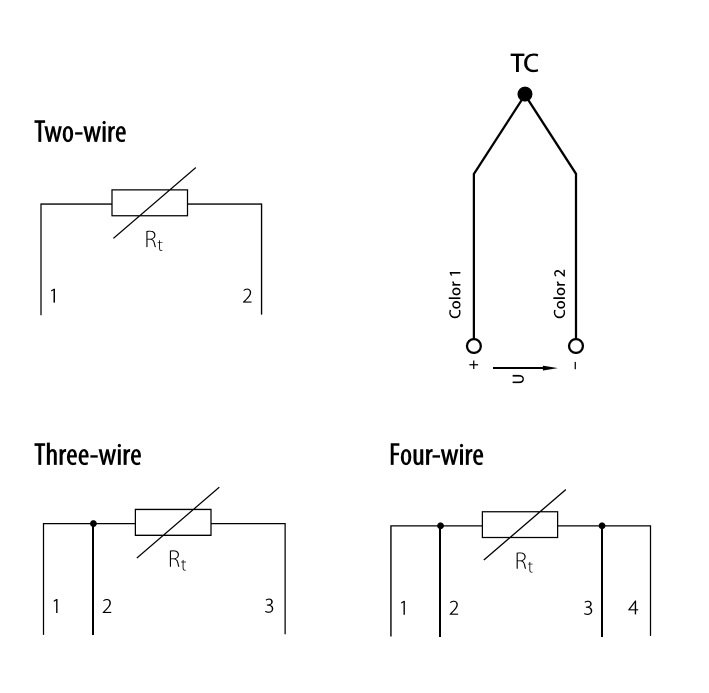

Schéma zapojení

Modifikace

  • possibility to encase two sensing elements
  • variable stem design in the area - L length, case material
  • accuracy class A (with the exception of sensors Ni 10000/5000, Ni 10000/6180, T1 = Ni 2226, thermistor NTC 20 kΩ)
  • possibility of three or four-wire connection
  • possibility of encasing non-standard temperature sensors (DALLAS, TSic, KTY, SMT, etc.)
