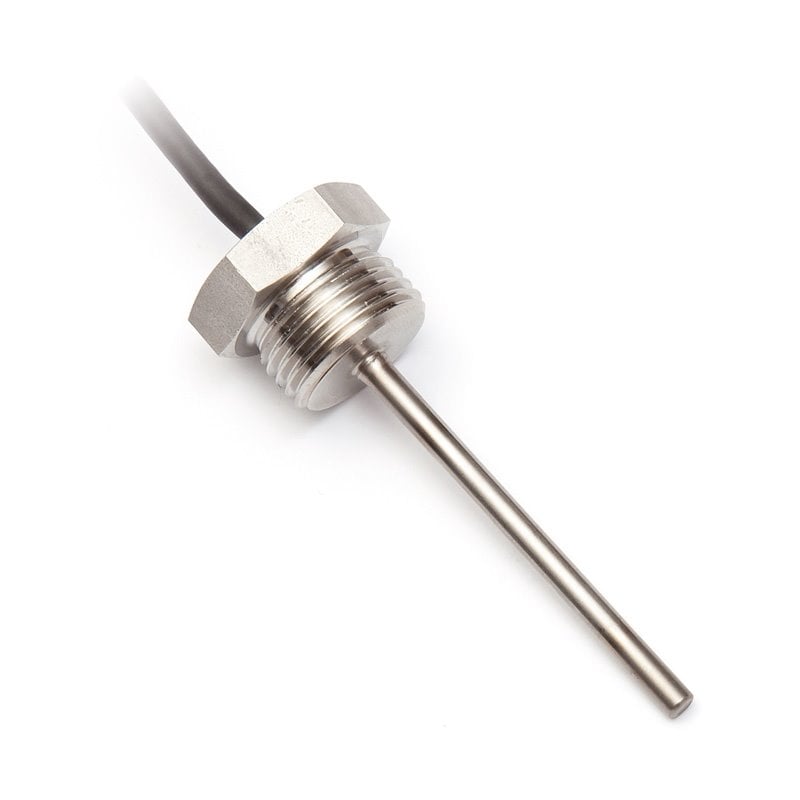

TR 080A
diameter 4 mm, -30 °C to 180 °C

TR 080A
diameter 4 mm, -30 °C to 180 °C

TR 080A
diameter 4 mm, -30 °C to 180 °C

CONFIGURATOR

CONFIGURE AND REQUEST

21410
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

These resistance temperature sensors are designed to measure the temperature of gaseous, liquid or solid substances. The maximum temperature range of use of the sensors is -30 to 180 °C. Used type of lead-in case has silicone insulation and shielding. The sensors are primarily designed for measuring the temperature in air-contitioning ducts. The 4 mm case diameter enables quicker response to changes in temperature. the sensors are designed for use in a chemically non-aggressive environment. The method of use must be chosen with regard to the temperature and chemical re- sistance of the case and lead-in cable.

ACCESORIES

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaratin of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.



Technické parametry


Sensor typeTR 080A
Measuring range
-30 to 180 °C (can be limited by the sensing element, determine in documentation)
Type of sensing elementNi 1000, Pt 100, Pt 500, Pt 1000, NTC
Ingress protectionIP 65 in accordance with EN 60529, as amended
Thread / OKaccording to customer
Case materialstainless steel DIN 1.4301
Diameter of case
4 mm
Length of case L30 to 200 mm
Lead-in cableshielded silicone 2 x 0.22 mm2
shielded silicone 4 x 0.15 mm2
Wire resistance0.16Ω for 1 m of cable for 2-wire connection
Time response
τ0.5 < 5 s (in flowing water 0.4 m.s-1)
Weight0.12 kg for housing 50 mm, cable 1 m, G ½"

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

Rozměrový náčrt

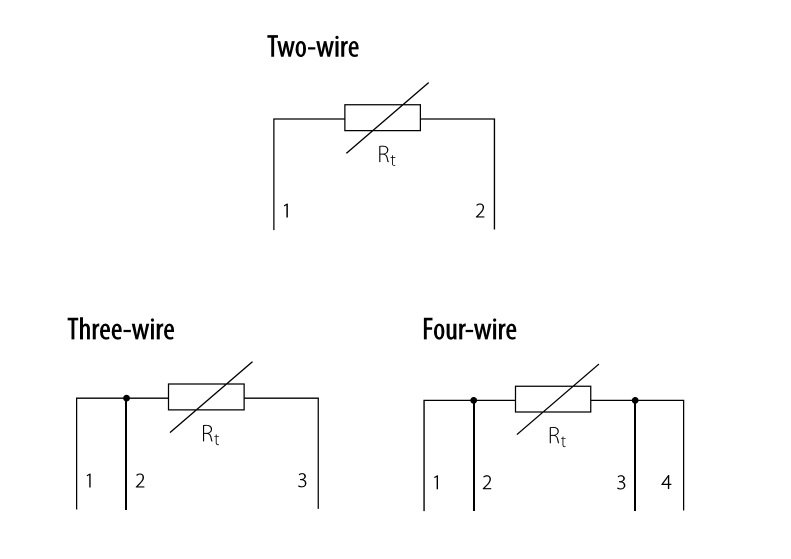

Schéma zapojení

Modifikace

  • variable stem design in the area - L length, case material
  • accuracy class A (with the exception of sensors Ni 10000/5000, Ni 10000/6180, T1 = Ni 2226, thermistor NTC 20 kΩ)
  • possibility of three or four-wire connection

Soubory ke stažení

K16.05en.pdf K16.05en.pdf
