diameter 6 mm, 0 °C to 400 °C

TR 068C
diameter 6 mm, 0 °C to 400 °C

TR 068C
diameter 6 mm, 0 °C to 400 °C
On request

BBB

--%>

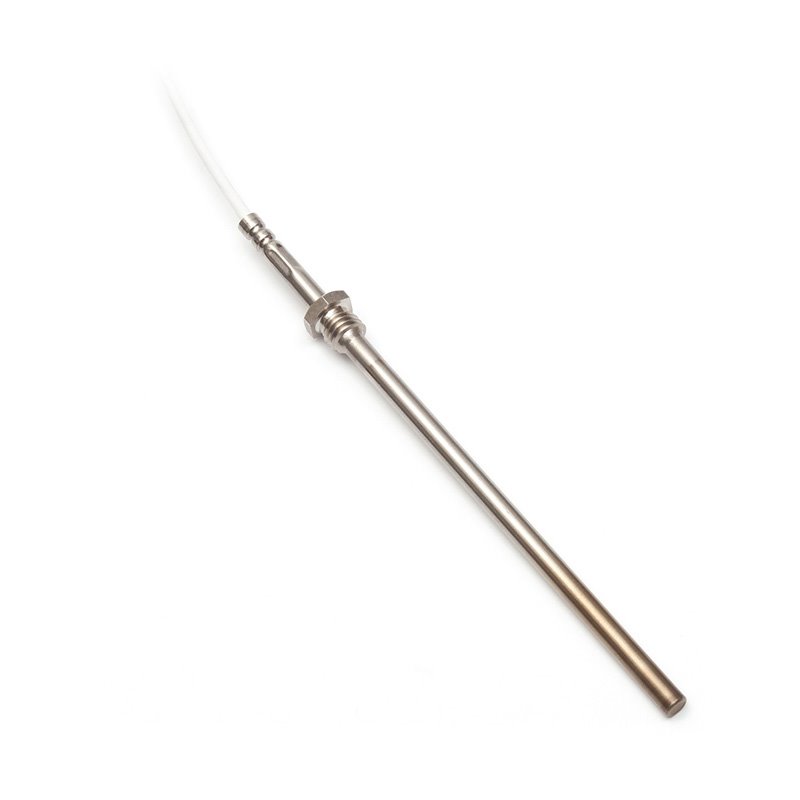

These resistance temperature sensors with a cable and thermocouple temperature sensors with a cable are designed to measure the temperature of gaseous substances. The maximum temperature range of use of the sensors is 0 to 400 °C, or 500 °C short-term for the active part of the sensor case after the thread. Used type of lead-in cable has teflon insulation with shielding. The temperature in the surroundings of the cable must not exceed 250 °C. The sensors are primarily designed for measuring the temperature of flue gases and combustion products in the flues of fireplaces, stoves and boilers. The method of use must be chosen with regard to the temperature and chemical resistance of the case and lead-in cable.

ACCESSORIES

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaratin of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard) or in an Accredited laboratory.



Technické parametry


Sensore typeTR 068C
Measuring range
0 to 400 °C (500 °C in a short-term)
Type of sensing element*
Pt 100, Pt 500, Pt 1000, TCK, TCJ
Ingress protection
IP 64 in accordance with EN 60529, as amended
Thread/OKM 10 x 1.5/OK 12
Case material
Stainless steel DIN 1.4301
Length of case Lmin. 60 mm, max. 130 mm
Diameter of case
6.0 ± 0.1 mm
Lead-in cable
shielded teflon 2 x 0.14 mm2
Wire resistance
0.3 Ω for 1 m of cable for 2-wire connection
Weight0.07 kg for 60 mm housing length and 1 m cable
*) Certain technical specifications of thermocouple sensors (lead wires, IP rating, etc.) may differ with different types.
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

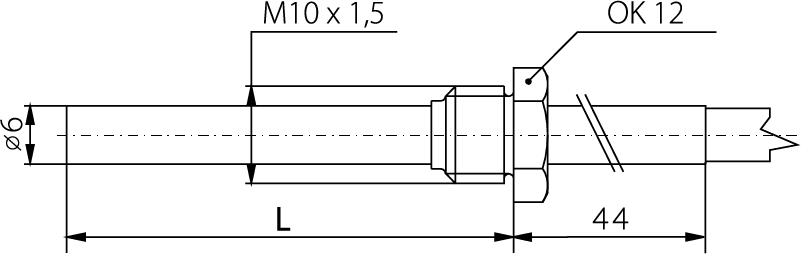

Rozměrový náčrt

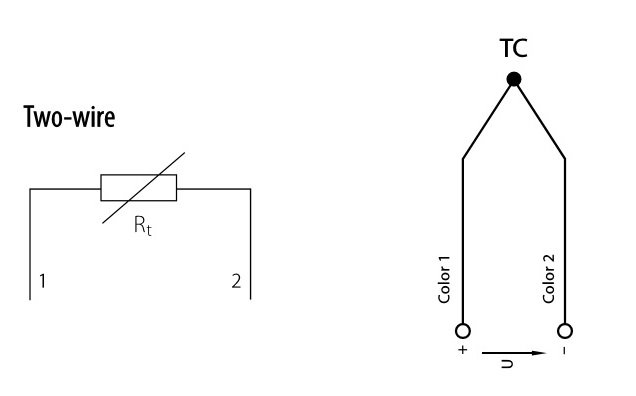

Schéma zapojení

Modifikace

  • variable stem design in the area - L length, case material
  • accuracy class A, which is limited for Pt senzors up to 250 °C
