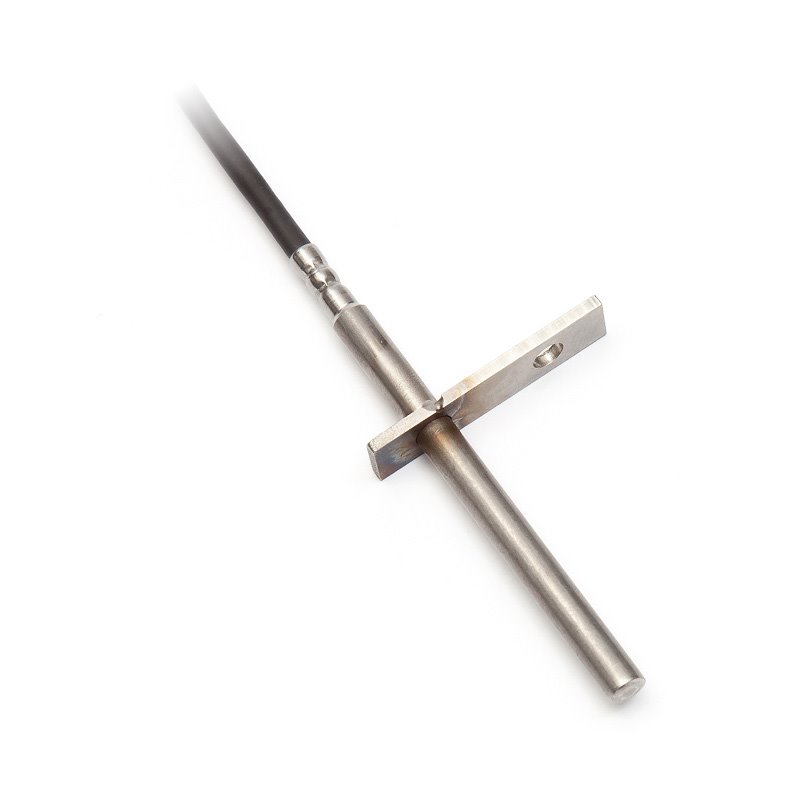

TR 050H
diameter 6 mm, up to 400 °C

TR 050H
diameter 6 mm, up to 400 °C

TR 050H
diameter 6 mm, up to 400 °C

CONFIGURATOR

CONFIGURE AND REQUEST

21380
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

These resistance temperature sensors with a cable and thermocouple temperature sensors with a cable are designed to measure the temperature of gaseous or solid substances. The maximum temperature range of use of the sensors is 0 to 350 °C, 450 °C short-term for the active part of the sensor case. Used type of lead-in cable has silicone insulation, thus the temperature in the cable surroundings must not exceed 200 °C. The sensors are primarily designed for measuring the temperature of flue gases and combustion products in flues of fireplaces, stoves and boilers. The sensors are designed for use in a chemically non-aggressive environment. The method of use must be chosen with regard to the temperature and chemical resistance of the case and lead-in cable.

ACCEORIES

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.



Technické parametry

Sensore typeTR 050H
Measuring range
0 to 350 °C (450 °C short-term) – measuring part of
the case, up to 200 °C in the cable surrounding
Type of sensing element*
Pt 100, Pt 500, Pt 1000, TCK, TCJ
Ingress protection
IP 67 in accordance with EN 60529, as amended
Case material
stainless steel DIN 1.4301
Length of case L50 / 85 mm
Diameter of case
6 + 0.1 mm
Lead-in cable
shielded silicone 2 x 0.22 mm2
Wire resistance
0.16 Ω for 1 m of cable for 2-wire connection
Weight0.07 kg for 50 mm housing length and 1 m cable
*) Certain technical specifications of thermocouple sensors (lead wires, IP rating, etc.) may differ with different types.
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

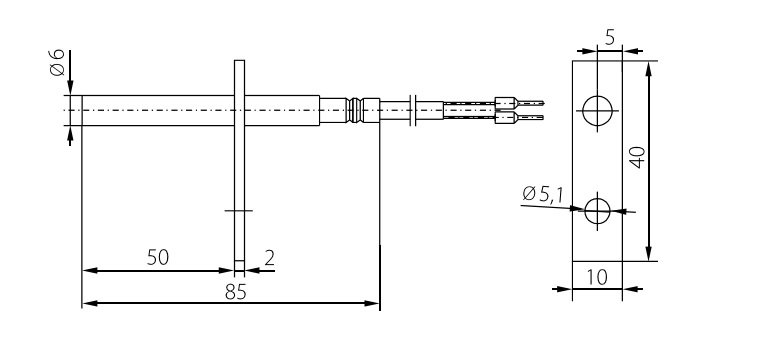

Rozměrový náčrt

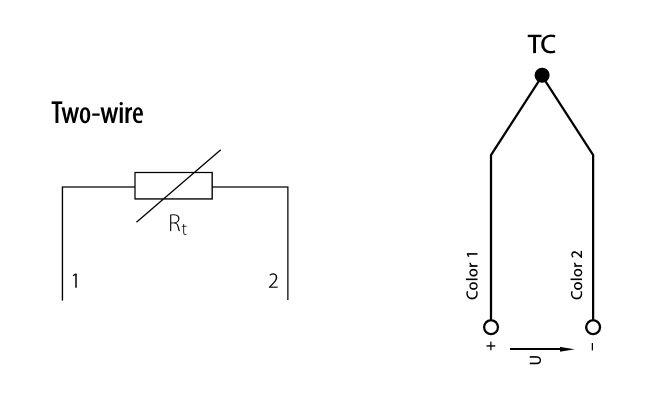

Schéma zapojení

Modifikace

  • variable stem design in the area - L length, case material
  • accuracy class A in the range -50 to 250 °C

Soubory ke stažení

K12.05en.pdf K12.05en.pdf

Related Products

Mineral Insulated Resistance Temperature Sensors
(MGO) diameter 6 mm

Detail Detail

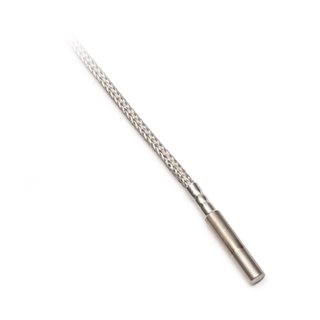

Jacketed thermocouple
