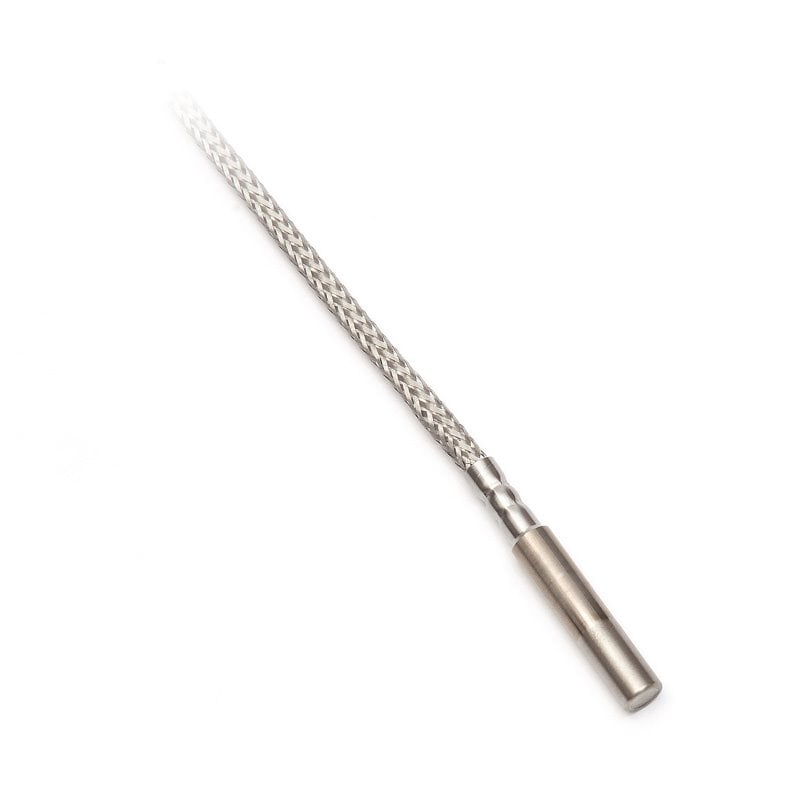

TR 050A
diameter 6 mm, up to 400 °C

TR 050A
diameter 6 mm, up to 400 °C

TR 050A
diameter 6 mm, up to 400 °C

CONFIGURATOR

CONFIGURE AND REQUEST

21374
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

These resistance temperature sensors with a cable and thermocouple temperature sensors with a cable are designed to measure the temperature of gaseous or solid substances. The maximum temperature range of use of the sensors is 0 to 350 °C, 400 °C short-term. Used type of lead-in cable has glass fibre insulation and metal braiding, the sensors are not resistant to the penetration of moisture inside the case and are intended for use in dry conditions. The sensors are designed for use in a chemically non-aggressive environment. The method of use must be chosen with regard to the temperature and chemical resistance of the case and lead-in cable.

ACCESSORIES

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.



Technické parametry

Sensor typeTR 050A
Measuring range0 to 350 °C (400 °C short-term)
Type of sensing element*Pt 100, Pt 500, Pt 1000, TCK, TCJ
Ingress protectionIP 50 in accordance with EN 60529, as amended
Case materialstainless steel DIN 1.4301
Diameter of the case6 + 0,1 mm
Length of case L40, 60, 100 and 200 mm
Lead-in cablewith glass fibre insulation and metal braiding 2 x 0.35 mm2
with glass fibre insulation and metal braiding 4 x 0.35 mm2
Wire resistance0.11 Ω for 1 m of cable for 2-wire connection
Weight0.05 kg for 40 mm housing length and 1 m cable
*) Certain technical specifications of thermocouple sensors (lead wires, IP rating, etc.) may differ with different types.
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

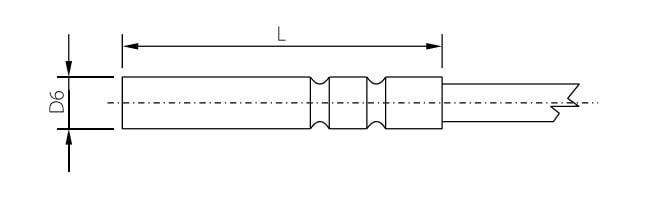

Rozměrový náčrt

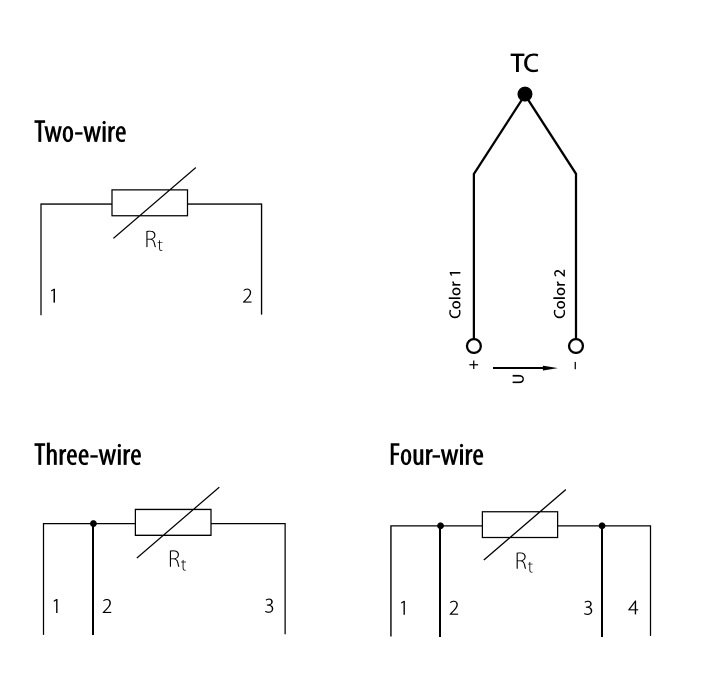

Schéma zapojení

Modifikace

  • variable stem design in the area - L length, case material
  • accuracy class A in the range of -50 to 250 °C
  • possibility of three or four-wire connection

Soubory ke stažení

K11.05en.pdf K11.05en.pdf

Related Products

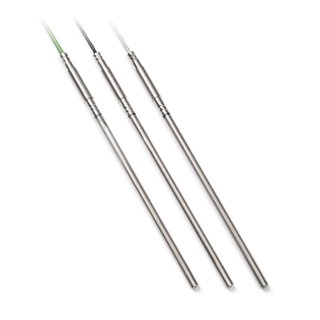

Mineral Insulated Resistance Temperature Sensors
(MGO) diameter 6 mm

Detail Detail

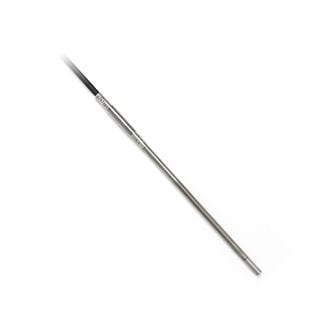

Jacketed thermocouple
diameter 6 mm

Detail Detail

TEMPERATURE SENSORS UP TO 400 °C

Detail Detail

TEMPERATURE SENSORS UP TO 600 °C WITH IP 68

Detail Detail

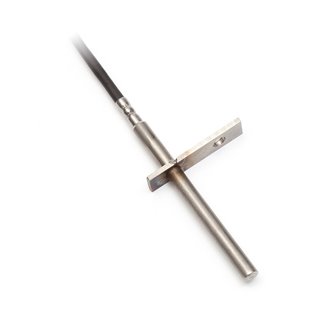

TR 050H
