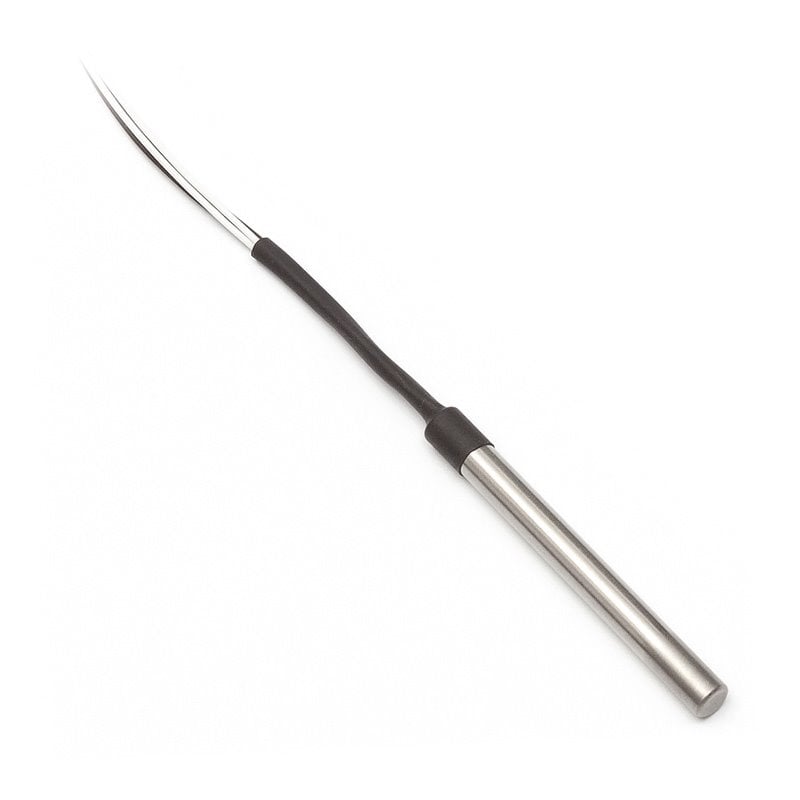

TR 046S
diameter 6 mm, -100 °C to 150 °C

TR 046S
diameter 6 mm, -100 °C to 150 °C

TR 046S
diameter 6 mm, -100 °C to 150 °C

CONFIGURATOR

CONFIGURE AND REQUEST

21481
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

These resistance temperature sensors are designed for contact measurement of the temperature of gaseous or solid substances. Given the materials used and production technology, these sensors may also be used under very low temperatures. The maximum temperature range of use is -100 to 150 °C and must not be exceeded for a brief period. The sensors are primarily designed for measuring the temperature in freezers, refrigerators etc. The resistive signal of the temperature sensor is led with individual conductors with teflon insulation, which ensures their low volume, allowing them to be installed between door seals.

The method of use must be chosen with regard to the temperature, chemical and mechanical resistance of the case and supply cable.

ACCESSORIES

 DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.



Technické parametry

Sensor typeTR 046S
Measuring range-100 to 150 °C (must not be exceeded even in short-term)
Type of sensing elementPt 100, Pt 1000
Ingress protectionIP 67 in accordance with EN 60529, as amended
Case materialstainless steel DIN 1.4301, DIN 1.4404
Diameter of case6.0 ± 0.1mm
Length of case L40 to 200 mm (in 20 mm)
Lead-in cableteflon APFA 0.22 mm2
Time responseτ0,5< 7 s (in flowing water 0.4 m.s-1)
Weight0.03 kg for housing length 60 mm and wire length 1 m

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

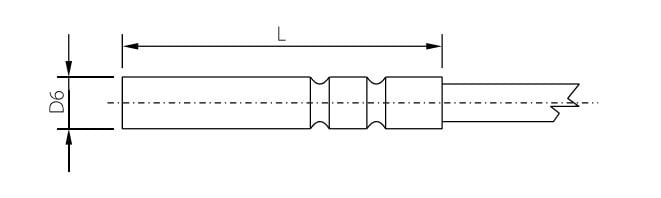

Rozměrový náčrt

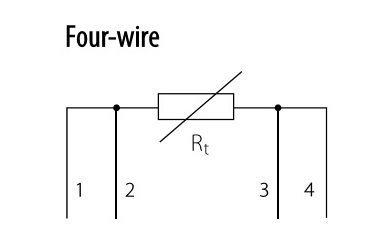

Schéma zapojení

Modifikace

Soubory ke stažení

K26.05en.pdf K26.05en.pdf
