TR 046
diameter 6 mm, -50 °C to 200 °C

TR 046
diameter 6 mm, -50 °C to 200 °C

TR 046
diameter 6 mm, -50 °C to 200 °C

CONFIGURATOR

CONFIGURE AND REQUEST

21367
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

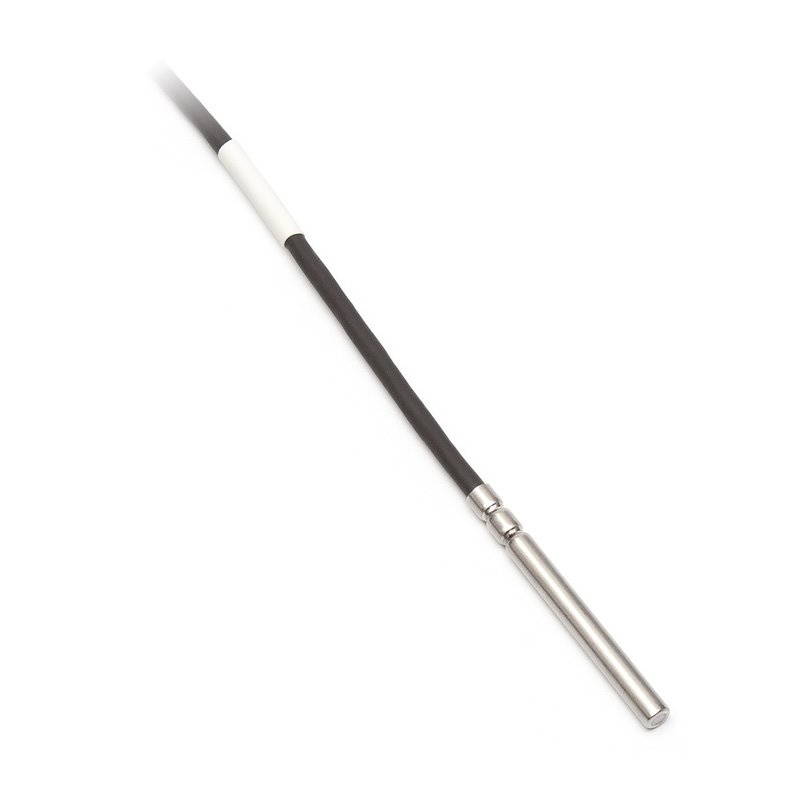

These resistance temperature sensors with a cable and thermocouple temperature sensors with a cable are designed to measure the temperature of gaseous and liquid substances. The maximum temperature range of use of the sensors is -50 to 200 °C. The case can be made of stainless steel DIN 1.4301, 1.4404 or 1.4571. Used type of lead-in cable has silicone insulation and shielding. the diameter of the case also enables the encasement of special temperature sensors – KTY, SMT 160, DS 18B20, TSic etc. The sensors are designed for universal use, the method of use must be chosen with regard to the temperature and chemical resistance of the case and lead-in cable.

ACCESSORIES

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.



Technické parametry

Sensor typeTR 046
Measuring range
-50 to 200 °C (can be limited by the type of cable,
determine in documentation)
Type of sensing element*
all types
(Pt 100, Pt 1000, Ni 1000, Ni 10000,Ni 2226=T1, NTC, PTC, KTY,
TSiC, DALLAS, thermocouple K, thermocouple J, thermocouple T and so on)
Ingress protection
IP 67 in accordance with EN 60529, as amended
Case material
stainless steel DIN 1.4404
Length of case L
30 to 200 mm
Diameter of case

6 + 0.1 mm

Lead-in cableshielded silicone 2 x 0.34 mm2
shielded silicone 4 x 0.22 mm2
Wire resistance
0.11 Ω for 1 m of cable for 2-wire connection
Time response
τ0.5 < 7 s (in flowing water at 0.4 m.s-1)
Weight0.05 kg for 40 mm housing length and 1 m cable
*) Certain technical specifications of thermocouple sensors (lead wires, IP rating, etc.) may differ with different types.
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

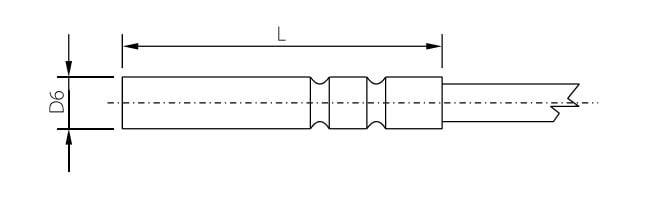

Rozměrový náčrt

Schéma zapojení

Modifikace

  • possibility to encase two sensing elements
  • variable stem design in the area - L length, case material
  • accuracy class A (with the exception of sensors Ni 10000/5000, Ni 10000/6180, T1 = Ni 2226, thermistor NTC 20 kΩ)
  • possibility of three or four-wire connection
  • possibility of encasing non-standard temperature sensors (DALLAS, TSic, KTY, SMT, etc.)
  • possibility to use other types of cables (PVC etc.)

Soubory ke stažení

K10.05en.pdf K10.05en.pdf
