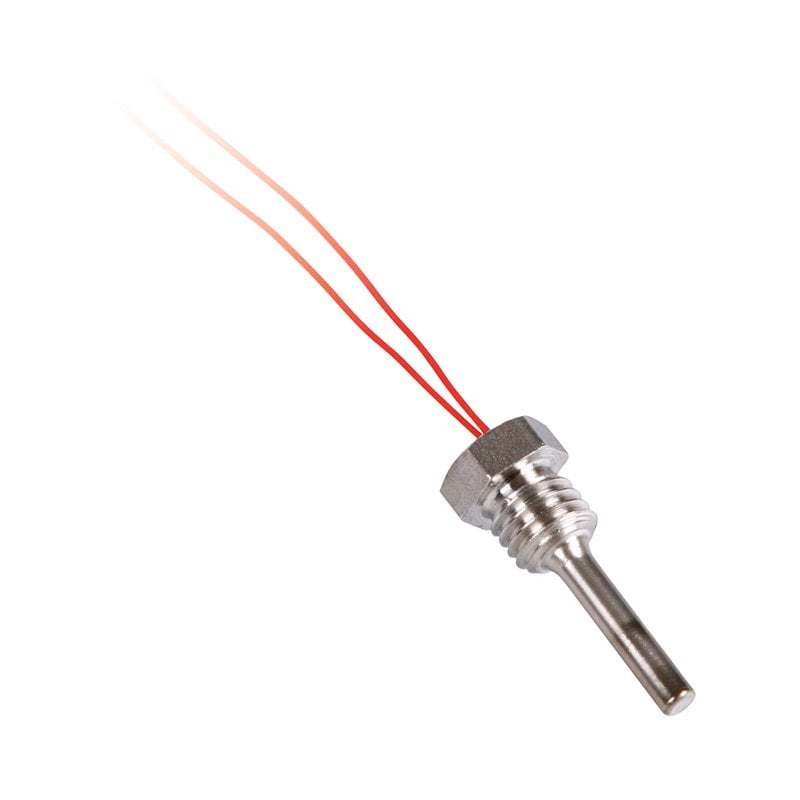

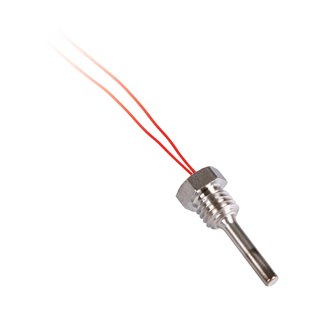

TR 030
diameter 4 mm, -50 °C to 200 °C

TR 030
diameter 4 mm, -50 °C to 200 °C

TR 030
diameter 4 mm, -50 °C to 200 °C
On request

BBB

--%>

These resistance temperature sensors are designed to measure the temperature of gaseous, liquid or solid substances. The maximum temperature range of use of the sensors is -50 to 200 °C. The resistance signal of the temperature sensor is led by a pair of cables with teflon insulation, whereby ensuring the minimization of heat transfer and thus achieving higher accuracy of measurement even at shallow immersion depths. The diameter of the case enables quick response to changes in temperature. the sensors are designed for use in a chemically non-aggressive environment.

The method of use must be chosen with regard to the temperature and chemical resistance of the case and lead-in cable.

ACCESSORIES

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaratin of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.



Technické parametry

Sensor typeTR 030
Measuring range-50 to 200 °C (can be limited by the sensing element, determine in documentation)
Type of sensing elementPt, Ni, NTC
Ingress protectionIP 52 in accordance with EN 60529, as amended
Thread / OKM 10 x 1.5 / OK 12
Case materialstainless steel DIN 1.4301
Diameter of case4 mm
Length of case L20 to 60 mm
Lead-in cable
2 x LT 0.07 mm2 with Teflon insulation
Wire resistance
0.51 Ω for 1 m of cable
Time response
τ0.5 < 5 s (in flowing water at 0.2 m.s-1)
Weight0.03 kg for 20 mm sleeve length and 1 m wire length

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

Rozměrový náčrt

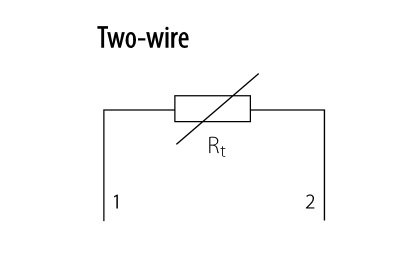

Schéma zapojení

Modifikace

  • variable stem design in the area - L length, case material
  • accuracy class A (with the exception of sensors Ni 10000/5000, Ni 10000/6180, T1 = Ni 2226, thermistor NTC 20 kΩ)

Soubory ke stažení

K18.05en.pdf K18.05en.pdf
