TR 021A - thread
diameter 6 mm, -50 °C to 150 °C

TR 021A - thread
diameter 6 mm, -50 °C to 150 °C

TR 021A - thread
diameter 6 mm, -50 °C to 150 °C
On request

BBB

--%>

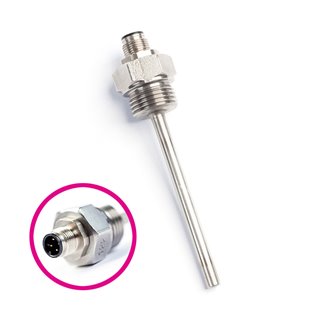

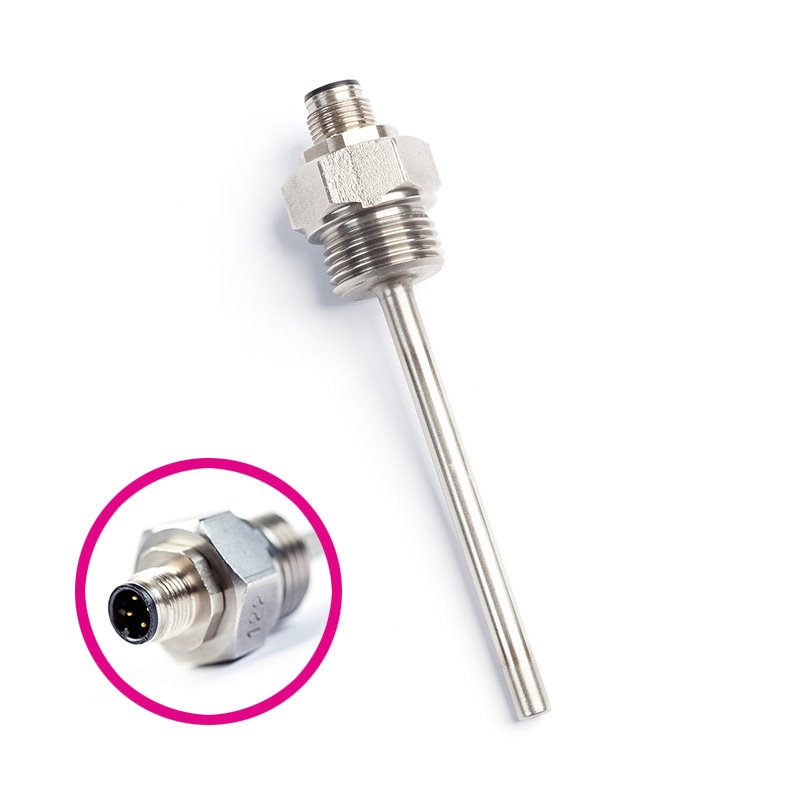

These resistance temperature sensors TR 021A with a connector are designed for temperature measurements of gaseous or liquid substances. The temperature range is -50 to 150 °C and these limits must not be exceeded even for a brief period. The temperature sensors with a connector consist of a metal case, in which the temperature sensing element is placed, and Lumberg M12 connector, which is an integral part of the case. The temperature sensors with a connector meet ingress protection IP 67 according EN 60529, as amended and they are designed for temperature measurent in pipelines. Their desing allows faster response to changes in temperature compared to sensors with a thermowell. They can be used as pressure accesories within the meaning of the government regulation No. 26/2003 Coll., as amanded.

The temperature sensors are designed to be operated in a chemically non-aggressive environment. The use must be chosen with regard to temperature chemical resistance of the case and the connector.

ACCESSORIES

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.



Technické parametry

Sensor typeTR 021A
Measuring range
-50 to 150 °C (may be limited by the type of a sensor, determine in documentation)
Type of sensing elementall types
(Pt 100, Pt 1000, Ni 1000, Ni 10000,Ni 2226=T1, NTC, PTC, KTY, TSiC, DALLAS and so on)
Ingress protectionIP67 in accordance with EN 60529, as amended
ThreadG ½; M 20 x 1.5; M 27 x 2 other according to customer
Case material
stainless steel DIN 1.4301
Diameter of case6.0 ± 0.1 mm
Length of case (L)20 to 500 mm
Type of the connector
LUMBERG RSFM4, M12
Ambient temperature around connector
-25 to 80 °C
Wire resistance
0.254 Ω / 1 m at a temperature 25 °C for 2-wire connection
Time responseτ0,5 < 7 s; τ0,9 < 9 s (in flowing water 0,4 m.s-1)
Weight0.08 kg for length 120 mm

Operation conditions:

  • Ambient temperature around connector: -25 to 80 °C
  • Relative ambient humidity: 10 to 100 %
  • Atmospheric pressure: 70 to 106 kPa
  • Maximum speed of water/air flow or water vapour flow when measuring the temperature in pipelines:
Length of the case in mm Water flow speed Air flow speed
to 60 2 m.s-1 20 m.s-1
> 60 to 100 1.5 m.s-1 15 m.s-1
> 100 to 160 1 m.s-1 8 m.s-1
> 160 to 220 0.6 m.s-1 2.5 m.s-1
> 220 to 400 0.3 m.s-1 0.6 m.s-1

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

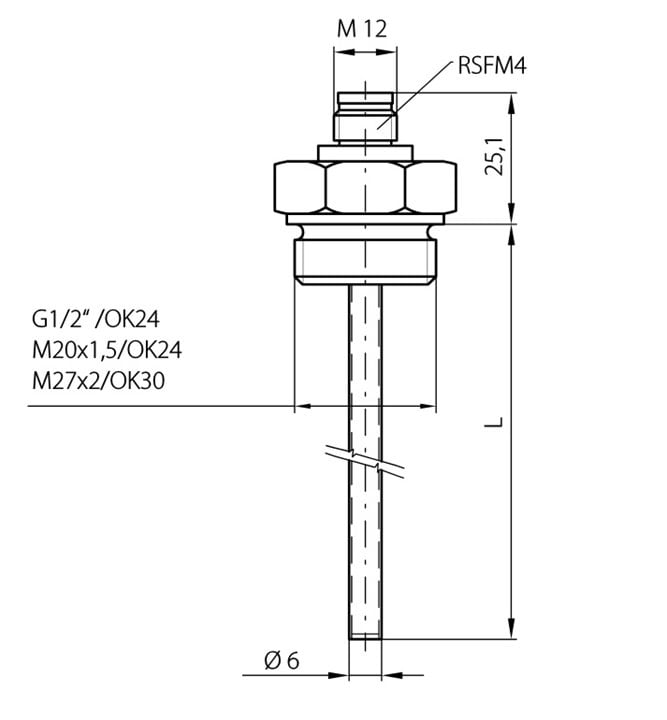

Rozměrový náčrt

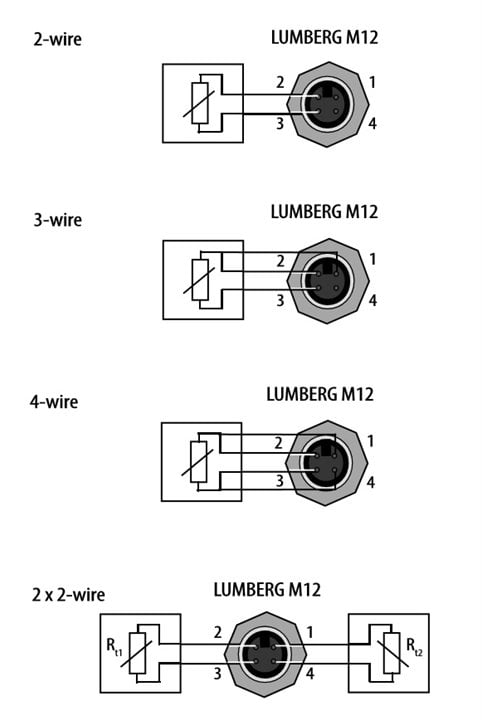

Schéma zapojení

Modifikace

  • variable stem design in area - length L, material and diameter
  • accuracy class A (except sensors Ni 10000/5000, Ni 10000/6180, T1 = Ni 2226, thermistor NTC 20 kΩ)
  • possibility of encasing non-standard temperature sensors (DALLAS, TSic, KTY, SMT, etc.)
  • thread is possible to change compared to the types offered as standard

Soubory ke stažení
