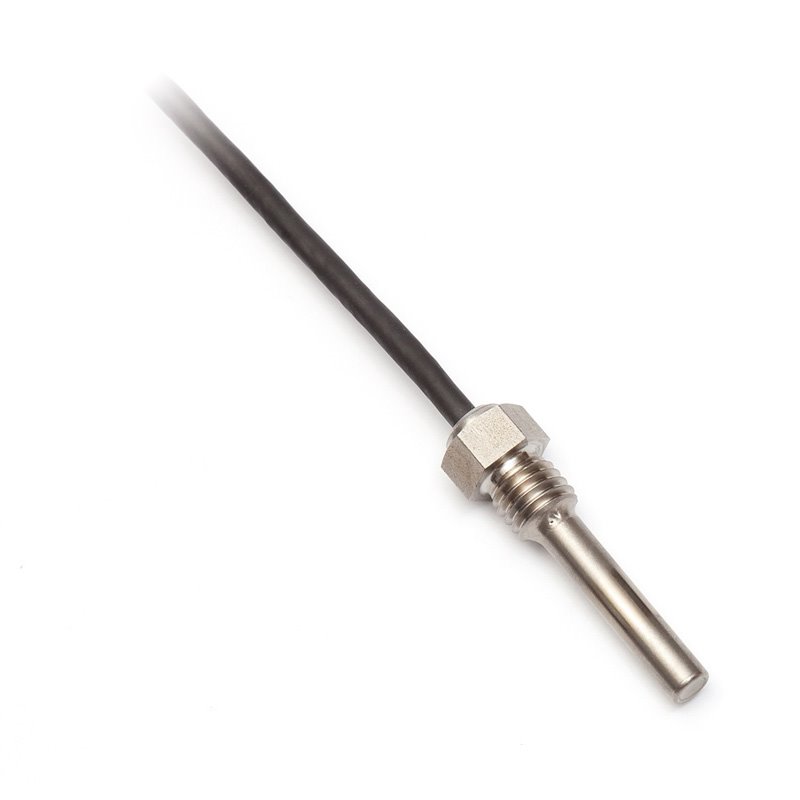

TR 011
diameter from 6 to 10 mm, -50 °C to 200 °C

TR 011
diameter from 6 to 10 mm, -50 °C to 200 °C

TR 011
diameter from 6 to 10 mm, -50 °C to 200 °C
On request

BBB

--%>

These resistance temperature sensors with a cable and thermocouple temperature sensors with a cable are designed to measure the temperature of gaseous, liquid or solid substances. The maximum temperature range of use of the sensors is -50 to 200 °C. Used type of lead-in cable has silicone insulation or PVC insulation and is with shielding or without shielding. The sensors are primarily designed for measuring the temperature in pipelines. There structure enables quicker response to changes in temperature and can be used as a pressure device as defined in Government Resolution no. 26/2003 coll., as amended. the sensors are designed for use in a chemically non-aggressive environment. The method of use must be chosen with regard to the temperature and chemical resistance of the case and lead-in cable.

Temperature sensors TR 011 can be also supplied in special design for an explosive environment.

ACCESORIES

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaratin of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.



Technické parametry

Sensor typeTR 011
Measuring range
-50 to 200 °C (can be limited by the sensing element, determine in documentation)
Type of sensing element*all types
(Pt 100, Pt 1000, Ni 1000, Ni 10000,Ni 2226=T1, NTC, PTC, KTY,
TSiC, DALLAS, thermocouple K, thermocouple J, thermocouple T and so on)
Ingress protectionIP 67 in accordance with EN 60529, as amended
Thread / OKaccording to customer
Case materialstainless steel DIN 1.4301
Diameter of case6 to 10 mm
Length of case L40 to 500 mm
Lead-in cableaccording to customer
Time response
τ0.5 < 9 s (in flowing water 0.4 m.s-1)
Weight0.05 kg for 50 mm housing length and 1 m cable
*) Certain technical specifications of thermocouple sensors (lead wires, IP rating, etc.) may differ with different types.
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

Rozměrový náčrt

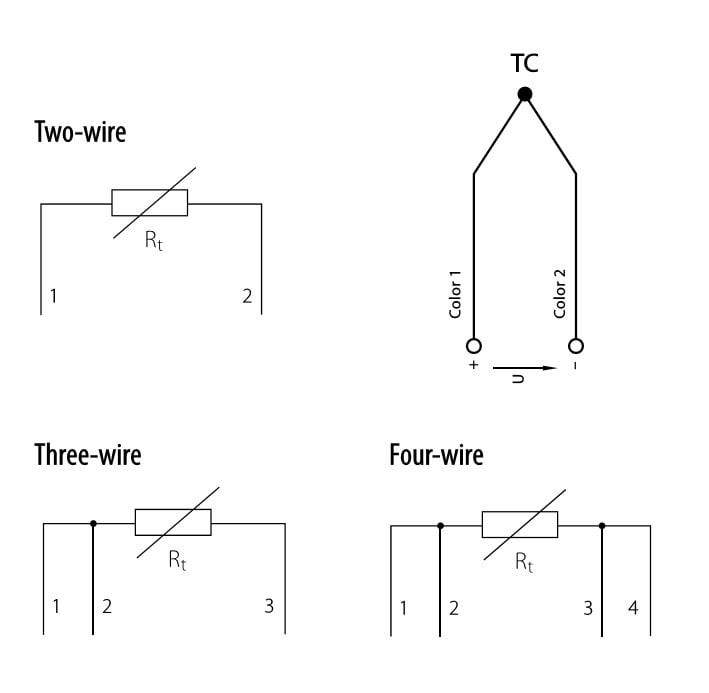

Schéma zapojení

Modifikace

  • possibility to encase two sensing elements
  • variable stem design in the area - L length, case material
  • accuracy class A (with the exception of sensors Ni 10000/5000, Ni 10000/6180, T1 = Ni 2226, thermistor NTC 20 kΩ)
  • possibility of three or four-wire connection
  • possibility of encasing non-standard temperature sensors (DALLAS, TSic, KTY, SMT, etc.)

Soubory ke stažení

K15.05en.pdf K15.05en.pdf
