diameter 5.8 mm, -50 °C to 250 °C

TM 8
diameter 5.8 mm, -50 °C to 250 °C

TM 8
diameter 5.8 mm, -50 °C to 250 °C

CONFIGURATOR

CONFIGURE AND REQUEST

30518
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

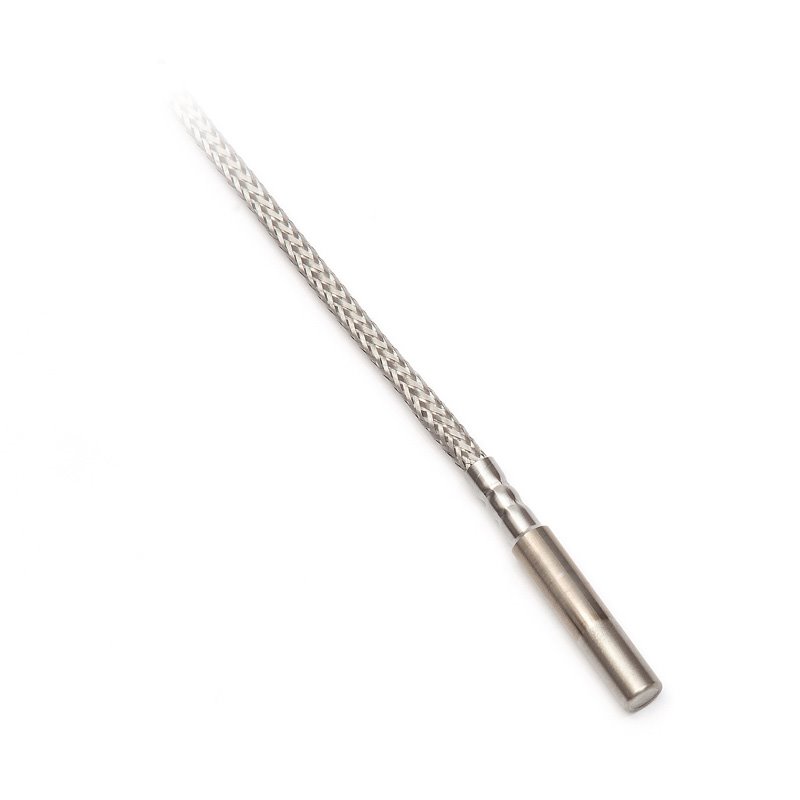

These resistance temperature sensors with a cable and thermocouple temperature sensors with a cable are designed to measure the temperature of gaseous or solid substances. The maximum temperature range of use of the sensors is 0 to 200 °C, 250 °C short-term. Used type of lead-in cable has glass fibre insulation and metal braiding, the sensors are not resistant to the penetration of moisture inside the case and are intended for use in dry conditions. Cable with metal braiding ensures higher mechanical resistance of the sensor. The sensors are designed for use in a chemically non-aggressive environment. The method of use must be chosen with regard to the temperature and chemical resistance of the case and lead-in cable.

ACCESSORIES

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.



Technické parametry

Sensore typeTM 8
Measuring range
-50 to 200 °C, 250 °C short-term (can be limited by the sensing element, determine in documentation)
Type of sensing element*
all types
(Pt 100, Pt 1000, Ni 1000, Ni 10000,Ni 2226=T1, NTC, PTC, KTY,
TSiC, DALLAS, thermocouple K, thermocouple J, thermocouple T and so on)
Ingress protection
IP 50 in accordance with EN 60529, as amended
Case material
40, 50, 60 mm - stainless steel DIN 1.4571
other lengths - stainless steel DIN 1.4301
Case length L
40 to 200 mm  (steps 20 mm)
Diameter
5.8 mm
Lead-in cable
with glass fibre insulation and metal braiding 2 x 0.22 mm2
with glass fibre insulation and metal braiding 4 x 0.22 mm2
Wire resistance
0.161 Ω for 1 m of cable for 2-wire connection
Time responseτ0.5 < 7 s (in flowing water at 0.4 m.s-1)
Weight0.05 kg for 40 mm housing length and 1 m cable
*) Certain technical specifications of thermocouple sensors (lead wires, IP rating, etc.) may differ with different types.
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

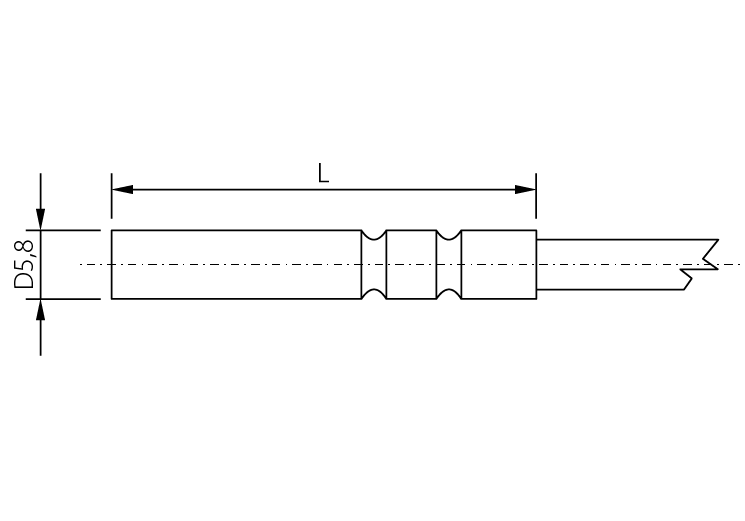

Rozměrový náčrt

Schéma zapojení

Modifikace

- possibility to encase two sensing elements
- variable stem design in the area - L length
- accuracy class A (with the exception of sensors Ni 10000/5000, Ni 10000/6180, T1 = Ni 2226, thermistor NTC 20 kΩ)
- possibility of three or four-wire connection
- possibility of encasing non-standard temperature sensors (DALLAS, TSic, KTY, SMT, etc.)

Soubory ke stažení

K39.01en.pdf K39.01en.pdf
1

2

3
*

4
*
