TM 141 a TM 141B - dural
or stainless steel, 0 °C až 350 °C

TM 141 a TM 141B - dural
or stainless steel, 0 °C až 350 °C

TM 141 a TM 141B - dural
or stainless steel, 0 °C až 350 °C
On request

BBB

--%>

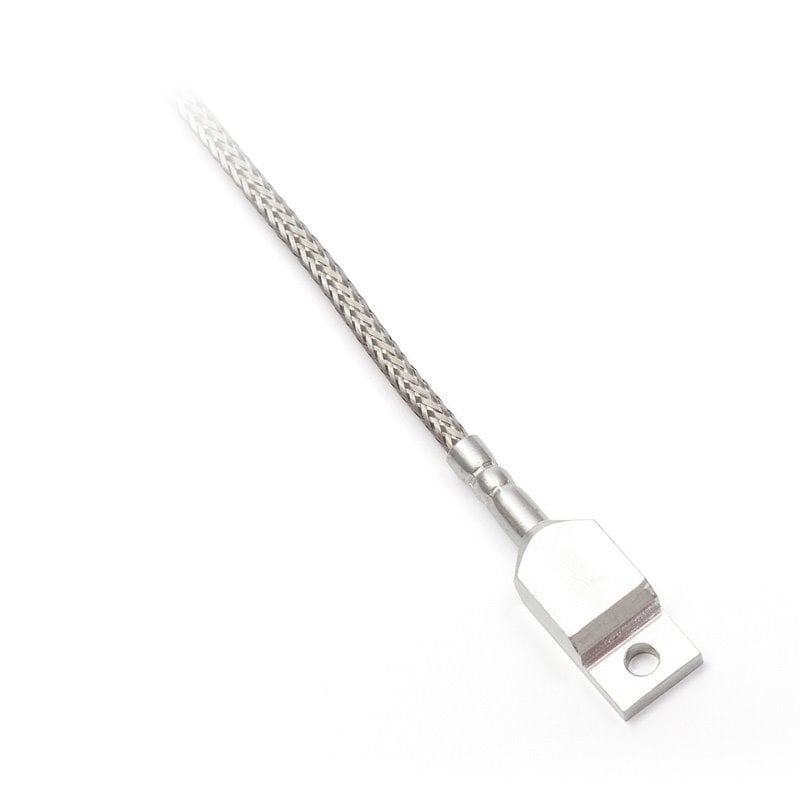

These resistance temperature sensors with a cable and thermocouple temperature sensors with a cable, are designed for measuring the surface temperature of solid substances with a flat and smooth surface. The maximum temperature range of use is 0 to 300 °C, 350 °C short-term. Used type of lead-in cable has glass fibre insulation and metal braiding, the sensors are not resistant against the penetration of moisture into the case and are designed for use in a dry environment. The sensors are designed for use in a chemically non-aggressive environment. The method of use must be chosen with regard to the temperature and chemical resistance of the case and lead-in cable..

ACCESSORIES

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard) or in an Accredited laboratory.



Technické parametry


Sensor type TM 141
TM 141B
Measuring range 0 to 300 °C (350 °C short-term)
Type of sensing element* Pt 100, Pt 500, Pt 1000, TCK, TCJ
Ingress protection IP 50 in accordance with EN 60529, as amended
Case material
aluminium alloy stainless steel DIN 1.4301
Length of case L
40 mm
End sleeves
H 0.25 / 10 mm
Lead-in cable
with glass fibre and metal braiding 2 x 0.22 mm2
with glass fibre and metal braiding 4 x 0.22 mm2
Wire resistance
0.161 Ω for 1 m of cable for 2-wire connection
Maximum allowablecable tension 1 kg

Recommendation

use thermal conductive paste for installation

*) Certain technical specifications of thermocouple sensors (lead wires, IP rating, etc.) may differ with different types.
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

Rozměrový náčrt

Schéma zapojení

Modifikace

  • possibility to encase two sensing elements
  • variable design of sensor case dimensions and materials
  • accuracy class A (with the exception of sensors Ni 10000/5000, Ni 10000/6180, T1 = Ni 2226, thermistor NTC 20 kΩ)
  • possibility of three or four-wire connection
  • possibility of encasing non-standard temperature sensors (DALLAS, TSic, KTY, SMT, etc.)

Soubory ke stažení

K22.05en.pdf K22.05en.pdf
