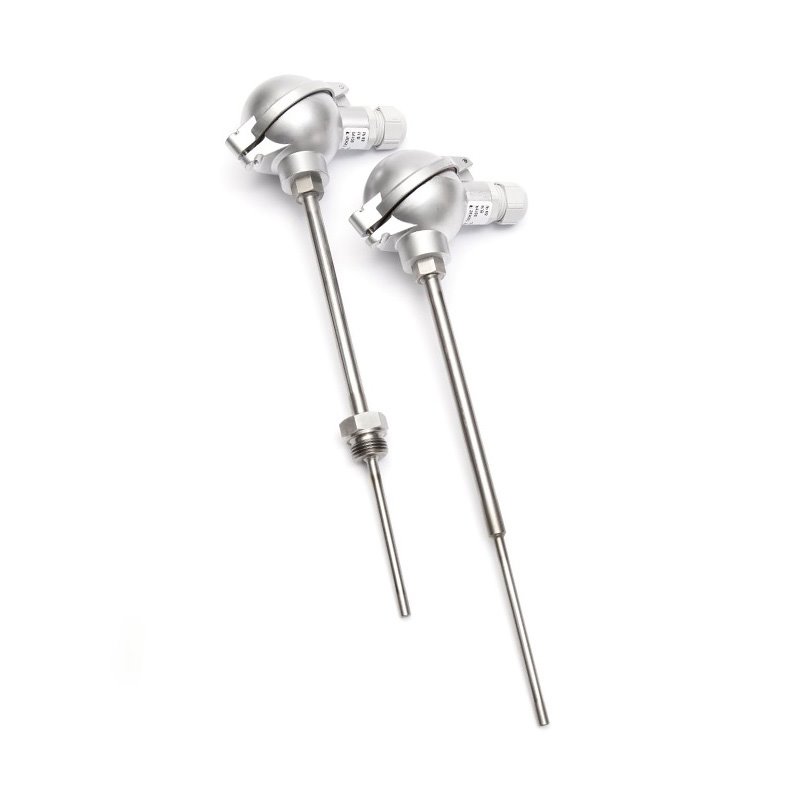

Thermocouple with connection head
up to 600 °C diameter of stem 6 mm

Thermocouple with connection head
up to 600 °C diameter of stem 6 mm

TCS 64 a TCS 66 series

Thermocouple with connection head
up to 600 °C diameter of stem 6 mm
On request

BBB

--%>

These thermocouple temperature sensors are designed to measure temperatures up to 600 °C (short time 650 °C). When combining sensor and stainless steel centre holder or thermowell, supplied as accessories, the sensors are possible to be used for temperature measurement in various applications in the industrial environment, for example even as pressure equipment within the meaning of the Government Regulation No. 26/2003 Coll. as amended. Maximum permitted operating pressure is 6.3 MPa (applies for case maximum length of up to 300 mm). The thermocouple temperature sensors are possible to be used for any control systems compatible with selected thermocouple type. The temperature sensors meet ingress protection IP 68 5 bar / 30 minutes according to the EN 60 529 standard, as amended. The standard measurement range is -50 °C to 600 °C (short time 650 °C). Maximum temperature around the head is 150 °C.

The thermocouple temperature sensors are intended for operation in chemically non-aggressive environment.

ACCESSORIES

DECLARATION, CERTIFICATION, CALIBRATION

  • EU Declaration of Conformity – in accordance with Act 22/1997 Coll. on technical requirements on products as amended.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.



Technické parametry

Sensor type with smooth stem
Sensor type with welded-on thread
TCS 64K
TCS 66K
TCS 64J
TCS 66J
Type of thermocouple thermocouple "K" thermocouple "J"
Measuring range -50 to 600 °C, short time up to 650 °C


Other parameters
Type of thermocouple
"J" and "K", single, double
Accuracy classstandardly 2 in accordance with EN 60584, as amended and DIN 43 710, further 1
Versionswith an isolated measuring point
Diameter of the stem6 mm
Standard length of the stem50, 100, 160, 220, 280, 340 and 400 mm
Nominal pressure of the stemPN 63 (with a thread) up to 400 °Cand length of the stem 300 mm
Thread types for variant with threadG 1/2"; M 20 x 1.5; M 27 x 2; others on customer's requirements
Material of the stem
stainless steel DIN 1.4571
Recommended wire cross section0.35 to 1.5 mm2
Ingress protectionIP 68 (1 bar) acc. EN 60529, as amended
Type of connection headLIMATHERM NAA
Material of connection head
aluminium alloy
Ambient temperature around the connection head-30 to 150 °C
Weight0.2 kg for 100 mm length

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

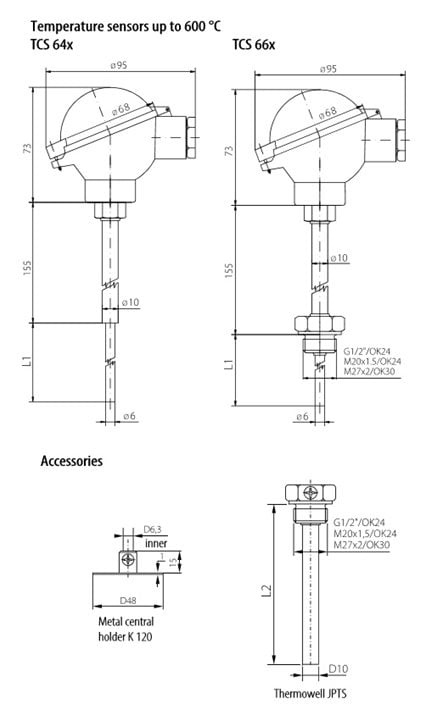

Rozměrový náčrt

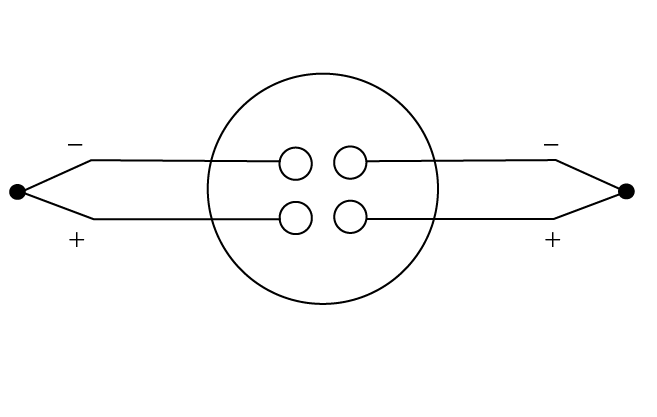

Schéma zapojení

Modifikace

  • variable stem design - length L1, diameter, case material
