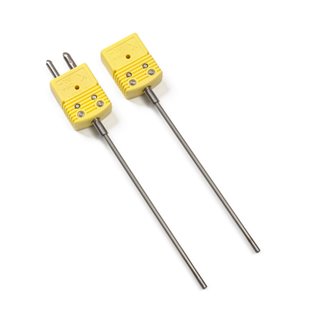

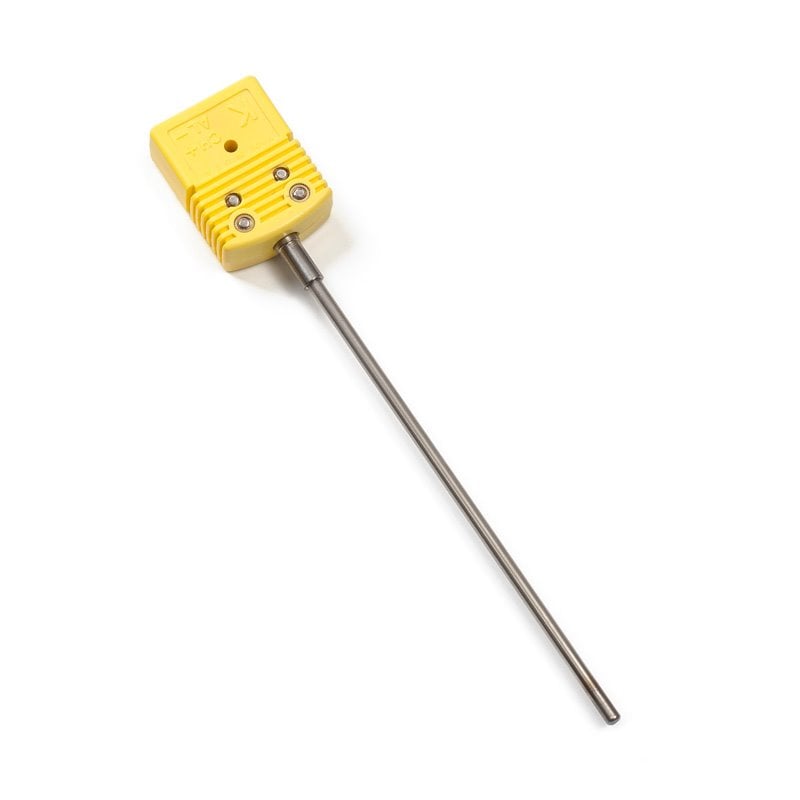

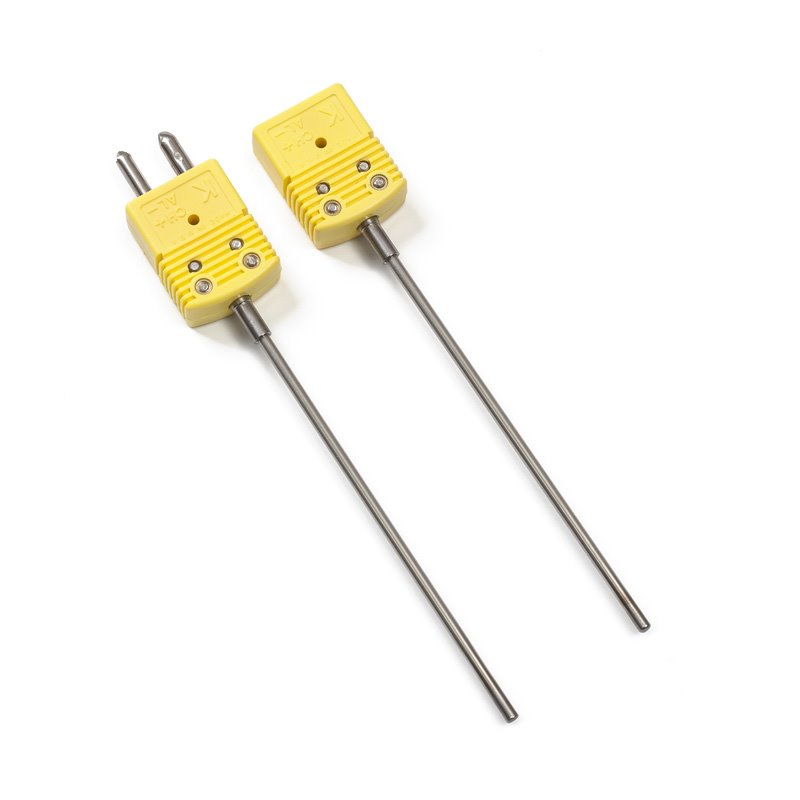

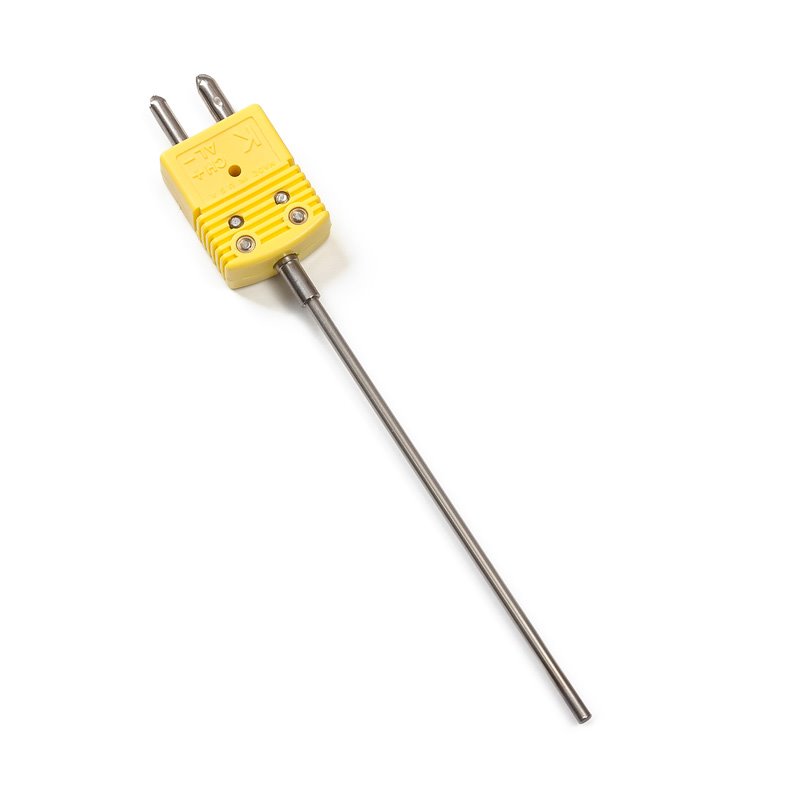

Thermocouple temperature sensors
with connector TC03F a TC03M

Thermocouple temperature sensors
with connector TC03F a TC03M

Thermocouple temperature sensors
with connector TC03F a TC03M
On request

BBB

--%>

These thermocouple temperature sensors with a connector TC 03F and TC 03M are designed for temperature measurements of gaseous or liquid substances. Temperature range is up to 1 100 °C depending to the thermocouple type and to the production technology used. The temperature sensors with a connector consist of a thermocouple and connector, which is an integral part of the case. The temperature sensors with a connector meet ingress protection IP 50 according to EN 60 529 and they are designed for temperature measurement in pipelines.

The thermocouple temperature sensors with a connector are intended to be used in operation in chemically non-aggressive environment.

ACCESSORIES

  • connectors
  • screw with collet or cutting rings – if different lengths of stem immersion of the temperature sensor are set

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard) or in an Accredited laboratory.



Technické parametry

Sensor typeTC03FTC03M
Thermocouple type"J" and "K" (other on request), single and double
Ingress protectionIP 50 in accordance with EN 60529, as amended
Designjacketed thermocouple with insulated measuring point
Diameter of the jacketD1,5; 2; 3; 4,5 and 6 mm
Length of the measuring part Lfrom 20 to 300 mm standardly, others as customer's requirements
Measuring range - on measuring point"K" type up to 1 100 °C - according to the diameter of measuring part
"J" type up to 700 °C
other depending on the type
Accuracy classstandard 2 according to the EN 60584, as amended and DIN 43 710
Jacket materialInconel 2.4816 for TC "K", stainless steel DIN 1.4541 for TC "J"
Sensor bodyflexible, shapeable
Type of connectorfemalemale
Temperature around connector-30 to 220 °C
Weight0.03 kg for housing length 100 mm and 1 m lead

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

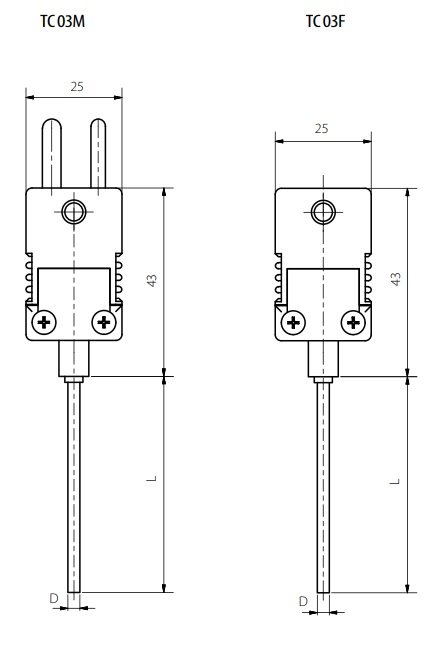

Rozměrový náčrt

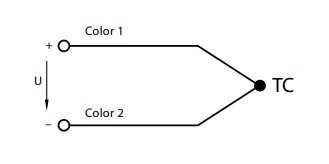

Schéma zapojení

Modifikace

Soubory ke stažení

T03.03en.pdf T03.03en.pdf
