KOS

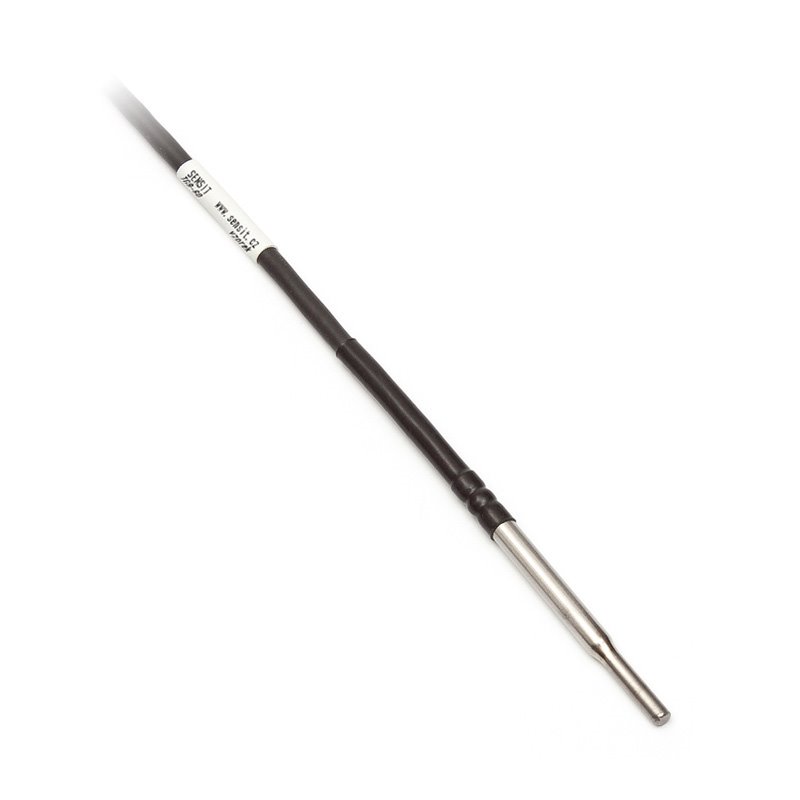

TG 9
diameter3.6/5 mm, -50 °C to 200 °C

TG 9
diameter3.6/5 mm, -50 °C to 200 °C

TG 9
diameter3.6/5 mm, -50 °C to 200 °C

CONFIGURATOR

CONFIGURE AND REQUEST

21339
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

These resistance temperature sensors with a cable and thermocouple temperature sensors with a cable are designed to measure the temperature of gaseous and liquid substances. The maximum temperature range of use of the sensors is -50 to 200 °C. The shape of the case with tapering to 3.6 mm in diameter ensures fast response to changes in temperature. Used type of lead-in cable has silicone insulation and shielding. The sensors are designed for universal use, the method of use must be chosen with regard to the temperature and chemical resistance of the case and supply cable.

ACCESSORIES

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.



Technické parametry

Sensore typeTG 9
Measuring range
-50 to 200 °C (can be limited by the sensing element,
determine in documentation)
Type of sensing element*
Pt, Ni (except for T1 = Ni 2226 and Ni 10000) NTC, TCK, TCT, TCJ
Ingress protection
IP 67 in accordance with EN 60529, as amended
Case material
stainless steel DIN 1.4301
Diameter of the case
5 mm
Diameter of case tip3.6 mm
Length of case L60 to 200 mm
Lead-in cable
shielded silicone 2 x 0.22 mm2
shielded silicone 4 x 0.15 mm2
Wire resistance
0.16 Ω for 1 m of cable for 2-wire connection
Time response
τ0.5 < 4 s (in flowing water at 0,2 m.s-1)
Weight0.05 kg for 40 mm housing length and 1 m cable
*) Certain technical specifications of thermocouple sensors (lead wires, IP rating, etc.) may differ with different types.
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

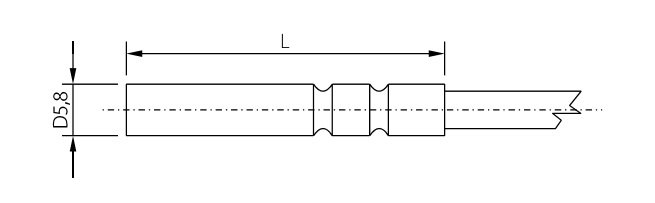

Rozměrový náčrt

Schéma zapojení

Modifikace

  • possibility to encase two sensing elements
  • variable stem design in the area - L length
  • accuracy class A (with the exception of sensors Ni 10000/5000, Ni 10000/6180, T1 = Ni 2226, thermistor NTC 20 kΩ)
  • possibility of three or four-wire connection

Soubory ke stažení

K06.05en.pdf K06.05en.pdf
