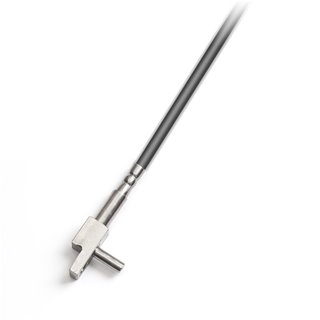

These right-angle resistance temperature sensors and thermocouple temperature sensors, are designed for measuring the temperature of solids substances just below the surface.

The structure of the sensor enables fast response to changes in temperature and higher accuracy of contact measurement comapare to standardly used contact temperature sensors, which are just attach to the measured surface. Placing of the sensing element into the tip of measuring part of case which is inserted to the measured surface ensures that measuring error is reduced. The sensor is fastened with one screw. Standard stem length is 12 mm. Maximum temperature range of right-angle temperature sensor use is -50 to 350 °C (400 °C for a short period). The range for each design variant is reduced with a type of the temperature sensing element and the supply cable. The right-angle temperature sensors meet ingress protection from IP 50 to IP 67 according to the EN 60529 standard, as amended, depending on the lead-in cable variant.

The right-angle temperature sensors are intended for operation in chemically non-aggressive environment. By using temperature sensor is recommended to ensure striping sensor from the influence of ambient temperature and thus reduce the error method due to the impact of differences between the measured temperature ambient temperature.

The rectangular temperature sensors are intended for operation in chemically non-aggressive envitonment.



  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.


Technické parametry

Sensor typeTG 85
Sensing element*all types
(Pt 100, Pt 1000, Ni 1000, Ni 10000,Ni 2226=T1, NTC, PTC, KTY, TSiC, DALLAS, TC K, TC J, TC T and so on)
Length of case L - measuring part10 to 20 mm
Diameter of case - measuring part4 mm

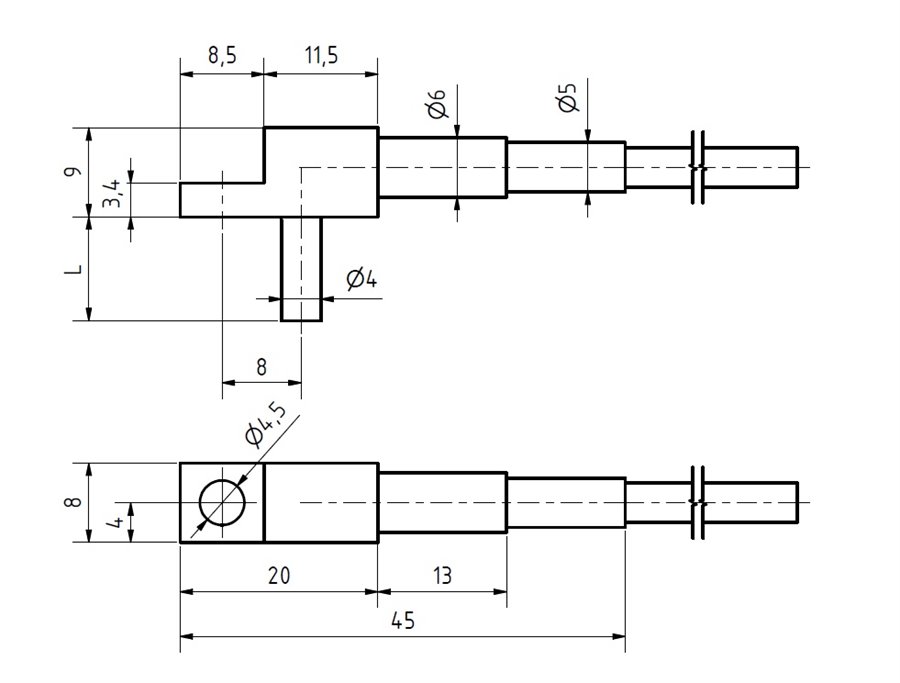

Case dimensionaccording to the dimensional draft
Case materialstainless steel DIN 1.4301
Thread / OKM8 X 1 / OK 12
Lead-in cable variations / Temperature range
(can be limited by type of sensing element
– determine in documentation)
PVC shielded          -30 to 80 °C
PVC unshielded      -40 to 105 °C
silicone shielded      -50 to 200 °C
teflon shielded         -50 to 250 °C
with fibreglass
(with metal braiding) 0 to 400 °C
Ingress protection

from IP 50 to IP 67 according to the cable type
- in accordance with EN 60529, as amended

Insulation resistance
200 MΩ at 500 VDC, 25 ± 3 °C
Maximum permissible static pull on the lead-in cable1 kg
Weigth0.05 kg for 1 m length

*) Certain technical specifications of thermocouple sensors (lead wires, IP rating, etc.) may differ with different types.
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.
