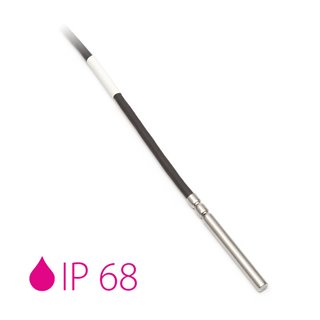

TG 8 AND TG 8J
diameter 5.8 mm, -50 °C to 200 °C

TG 8 AND TG 8J
diameter 5.8 mm, -50 °C to 200 °C

TG 8 AND TG 8J
diameter 5.8 mm, -50 °C to 200 °C

BBB

--%>

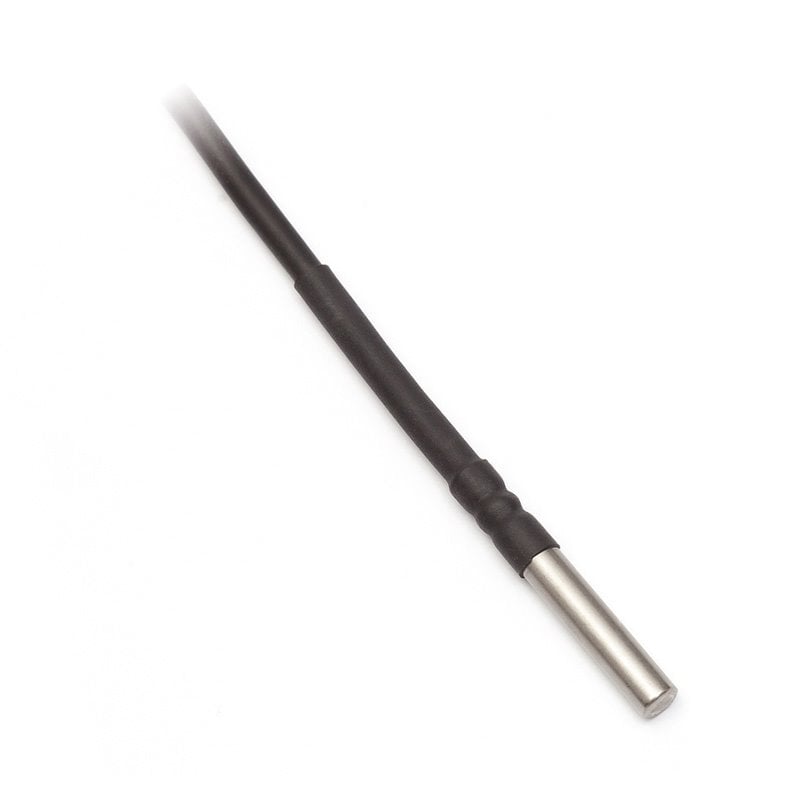

These resistance temperature sensors with a cable and thermocouple temperature sensors with a cable are designed to measure the temperature of gaseous and liquid substances. The maximum temperature range of use of the sensors is -50 to 200 °C. Used type of lead.in cable has silicone insulation and shielding. The diameter of the case also enables the encasement of special temperature sensors – KTY, SMT 160, DS 18B20, TSic etc. In combination with the JTG 8 thermowell, the sensor can be used for measuring the temperature in pipelines, as well as a pressure device as defined in Government Regulation no. 26/2003 coll., as amended. The sensors are designed for universal use, the method of use must be chosen with regard to the temperature and chemical resistance of thecase and lead-in cable.

Temperature sensors are produced also in variant to explosive environment.

ACCESSORIES

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.



Technické parametry

Sensor typeTG 8TG 8J
Use
generalfor JTG 8 thermowell
Measuring range
-50 to 200 °C (can be limited by the type of cable,
determine in documentation)
Type of sensing element*
all types
(Pt 100, Pt 1000, Ni 1000, Ni 10000,Ni 2226=T1, NTC, PTC, KTY,
TSiC, DALLAS, thermocouple K, thermocouple J, thermocouple T and so on)
Ingress protection
IP 67 in accordance with EN 60529, as amended
Material of the case
stainless steel DIN 1.4571; DIN1.4301
Diameter of the case
5.8 mm
Lenght of case L
40 to 200 mm
Lead-in cable
shielded silicone 2 x 0.34 mm2
shielded silicone 4 x 0.22 mm2
Wire resistance
0.11 Ω for 1 m of cabel for 2-wire connection
Time responseτ0.5 < 7 s
(in flowing water at 0.4 m.s-1)
τ0.5 < 45 s
(in flowing water at 0.4 m.s-1)
*) Certain technical specifications of thermocouple sensors (lead wires, IP rating, etc.) may differ with different types.
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

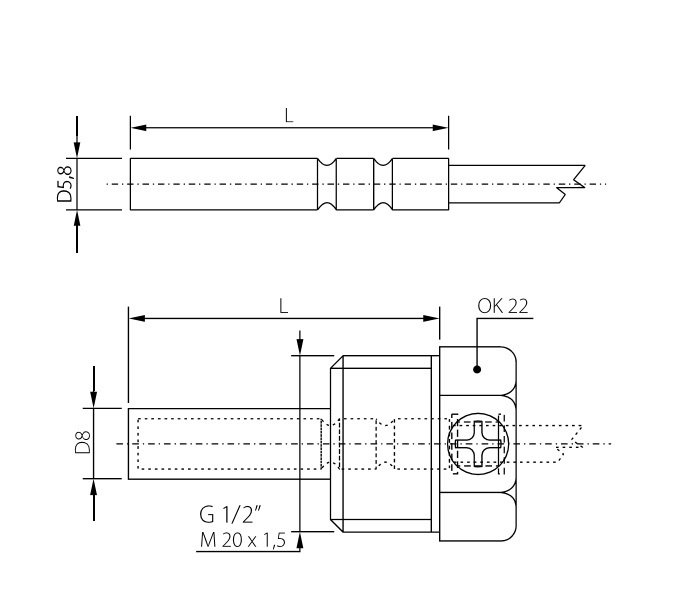

Rozměrový náčrt

Schéma zapojení

Modifikace

  • possibility to encase two sensing elements
  • variable stem design in the area - L length
  • accuracy class A (with the exception of sensors Ni 10000/5000, Ni 10000/6180, T1 = Ni 2226, thermistor NTC 20 kΩ)
  • possibility of three or four-wire connection
  • possibility of encasing non-standard temperature sensors (DALLAS, TSic, KTY, SMT, etc.)
  • possibility to use other types of cables (PVC etc.)
  • possibility of ingress protection IP 68 (1 bar)

Soubory ke stažení

K08.05en.pdf K08.05en.pdf
