TG 75
-50 °C to 350 °C (400 °C short-term)

TG 75
-50 °C to 350 °C (400 °C short-term)

TG 75
-50 °C to 350 °C (400 °C short-term)
On request

BBB

--%>

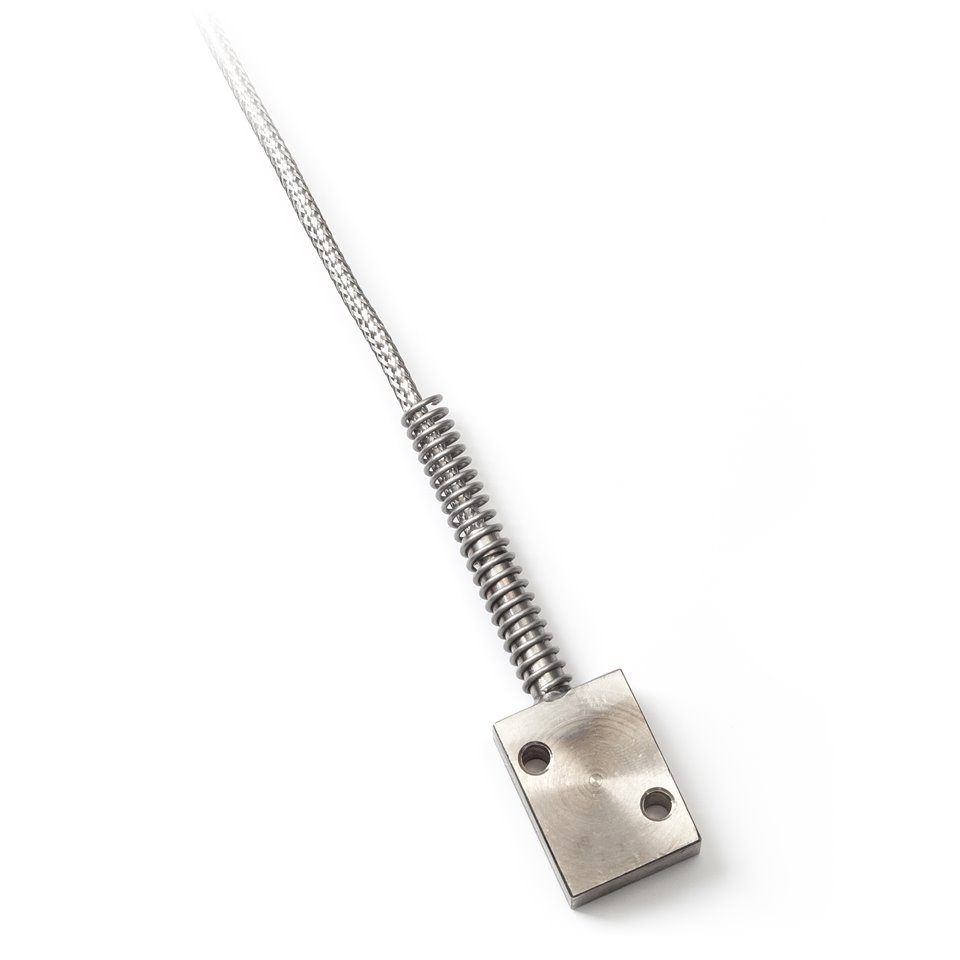

These resistance temperature sensors TG 75 are designed to measure the surface temperature of solid substances.

The construction of the sensor enables fixed connection to the measured surface by using two screws placed in to the holes in the sensor case. The structure of the sensors also enables fast response to the changes in temperature in particular when silicone grease is applied between the measured surface and the sensor. On the place of case transition to cable, there is a spring that protects the cable from mechanical damage. Maximum temperature range of sensor use is -50 °C to 350 °C (400 °C for a short period). The range for each design variant is reduced with a type of the temperature sensing element and the supply cable. The temperature sensors meet ingress protection from IP 50 to IP 67 according to the CSN EN 60 529 standard, depending on the supply cable variant.

The temperature sensors are intended for operation in chemically non-aggressive environment. By using temperature sensor is recommended to ensure striping sensor from the influence of ambient temperature and thus reduce the error method due to the impact of differences between the measured temperature ambient temperature.

ACCESSORIES

DECLARATION, CERTIFICATION, CALIBRATION

  • EU Declaration of Conformity – in accordance with Act 22/1997 Coll. on technical requirements on products as amended.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard) or in an Accredited laboratory.

Technické parametry

Sensor type TG 75
Sensing element Pt, Ni, NTC, TCK, TCJ, TCT
Case dimensionouter ⌀ 16 mm
inner ⌀ 5,2 mm
Case material stainless steel DIN 1.4301
Supply cable variations / Temperature range
(can be limited by type of sensing element
– specified in manual)
PVC shielded -30 °C to 80 °C
PVC unshielded -40 °C to 105 °C
Silicone shielded -50 °C to 200 °C
Teflon shielded -50 °C to 250 °C
With fibreglass 0 °C to 400 °C (with metal braiding)
Ingress protection from IP 50 to IP 67 according type of cable
Insulation resistance (between case and sensor) >200 MΩ at 500 VDC, 25 °C ± 3 °C
Maximum permissible static pull on the supply cable 1 kg

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

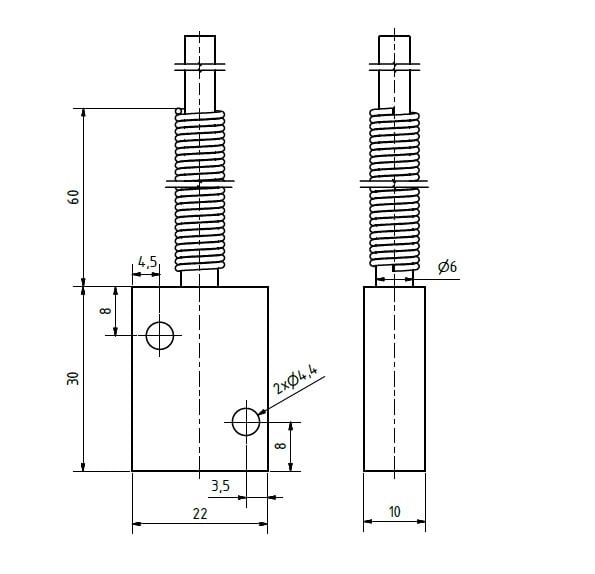

Rozměrový náčrt
