KOS
TG 7
brass -50 °C to 200 °C

TG 7
brass -50 °C to 200 °C

TG 7
brass -50 °C to 200 °C

CONFIGURATOR

CONFIGURE AND REQUEST

21438
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

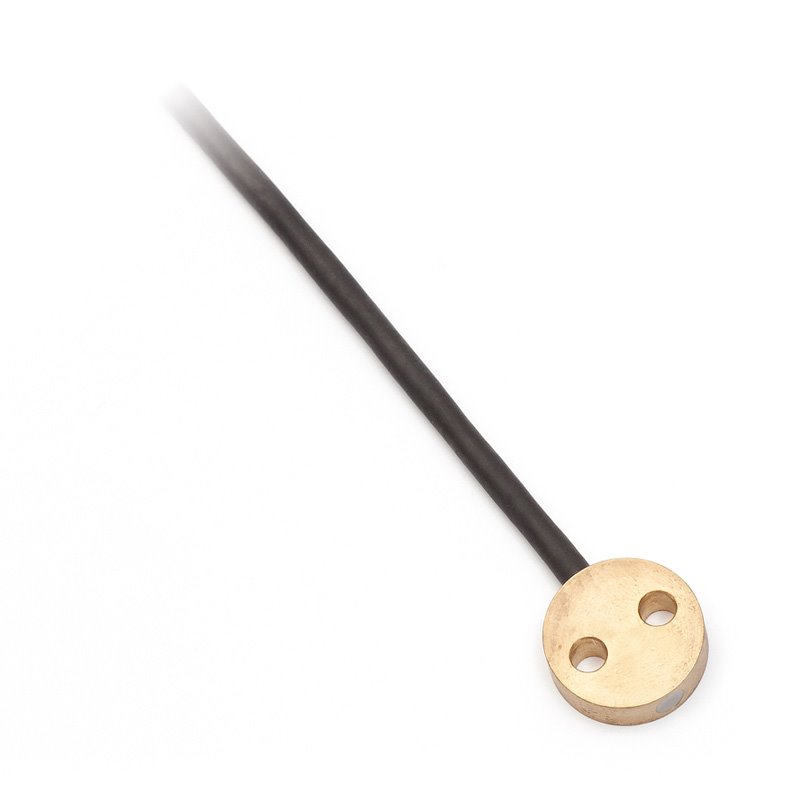

These resistance temperature sensors with a cable and thermocouple temperature sensors with a cable, are designed to measure the surface temperature of solid substances. The maximum temperature range of use of the sensors is -50 to 200 °C and these limits must not be exceeded even for a brief period. The structure of the sensors enables fast response to changes in temperature, in particular when silicone grease or thermally conductive paste is applied between the measured surface and the sensor. The sensors are mounted to the surface using one or two M4 screws. The sensors are designed for use in a chemically non-aggressive environment. The method of use must be chosen with regard to the temperature and chemical resistance of the case and lead-in cable.

ACCESSORIES

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaratin of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard) or in an Accredited laboratory.



Technické parametry


Sensor typeTG 7
Measuring range
-50 to 200 °C (can be limited by the sensing element, determine in documentation)
Type of sensing element*Pt, Ni, NTC, TCK, TCJ, TCT
Ingress protectionIP 65 in accordance with EN 60529, as amended
Case materialbrass
Case dimensionsØ 19 15 mm, height 6 mm
Lead-in cableshielded silicone 2 x 0.22 mm2
shielded silicone 4 x 0.15 mm2
Wire resistance
0.16 Ω for 1 m of cable for 2-wire connection
Time response
τ0.5 < 7 s (on flat surface of Al prism without paste)
Maximum allowable
cable tension
2 kg
Recommendationuse thermal conductive paste for installation
Weight0.05 kg for 1 m length

*) Certain technical specifications of thermocouple sensors (lead wires, IP rating, etc.) may differ with different types.
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

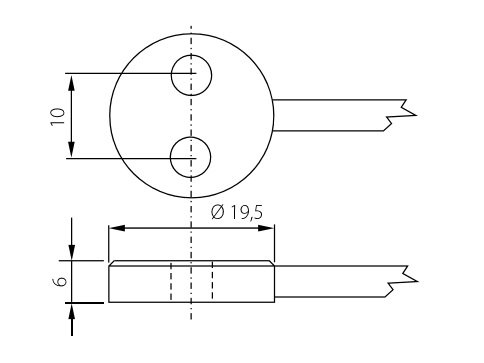

Rozměrový náčrt
