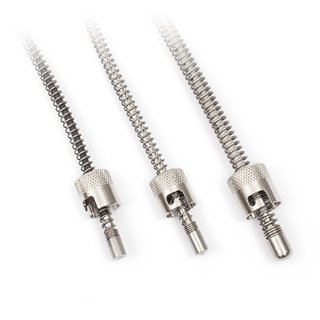

TG 60, TG 61 and TG 62
diameter 6 mm, -50 °C to 400 °C

TG 60, TG 61 and TG 62
diameter 6 mm, -50 °C to 400 °C

TG 60, TG 61 and TG 62
diameter 6 mm, -50 °C to 400 °C
On request

BBB

--%>

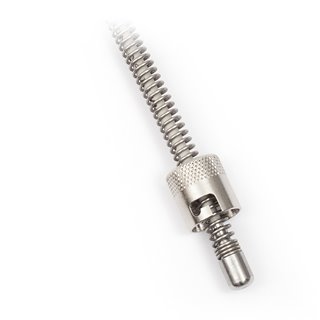

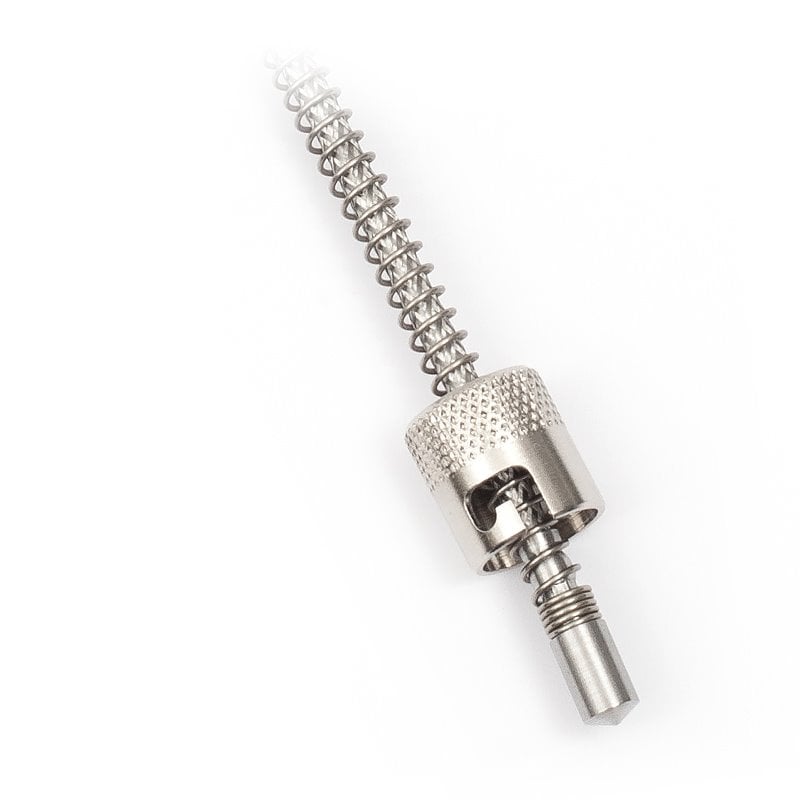

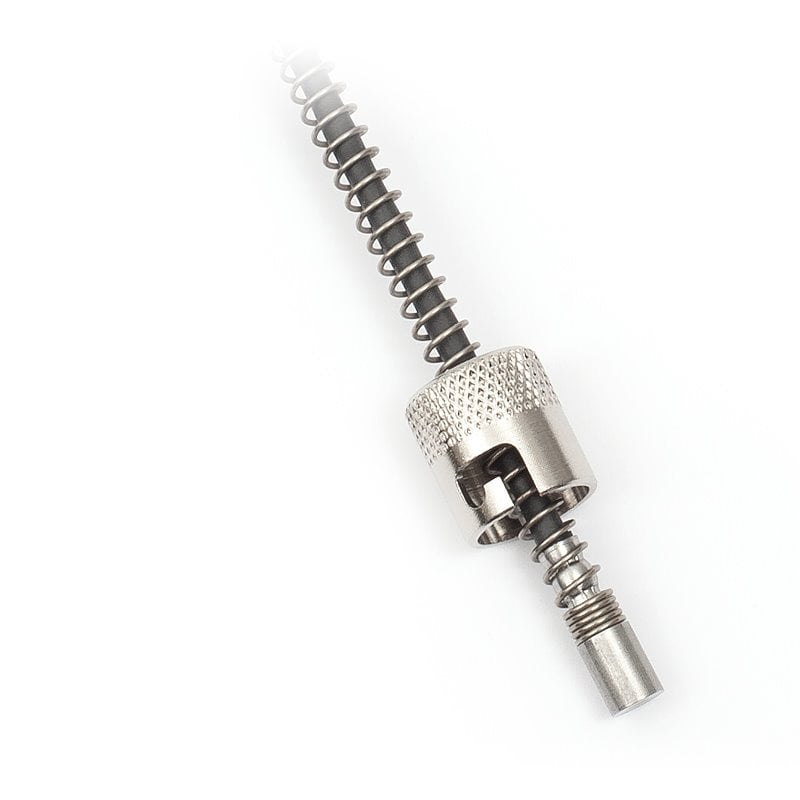

These temperature sensors are primarily designed for temperature measurement of solid substances, but can also be used for temperature measurement of liquids or gaseous substances. To mount the sensor to the measuring point, a bayonet nut is used that is screwed on a spring. The combination of a bayonet nut, spring and corresponding bayonet connector can provide higher contact pressure of the sensor to the measuring point or compensate any changes in the distance between the nut and measuring point during measurement. The maximum temperature range of the sensors is - 50 to 350 °C (short-term 400 °C). The range for individual design variations is narrowed down by the type of temperature sensing element and supply cable. The sensors meet the level of protection from IP 50 to IP 67 according to EN 60529, as amended, depending on the type of lead-in cable.

The sensors are designed to operate in a non-aggressive environment. The method of use must be chosen with regard to temperature and chemical resistance of the case and supply cable.

ACCESSORIES

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.

Technické parametry

Sensor typeTG 60TG 61TG 62
Case endstraightsemisphere R6apex 120°
Type of sensing element*All types
(Pt 100, Pt 1000, Ni 1000, Ni 10000,Ni 2226=T1, NTC, PTC, KTY, TSiC, DALLAS, TC K, TC J, TC T and so on)
Case materialstainless steel DIN 1.4301
Diameter of case6 mm
Length of case L
10 to 85 mm (with addition of 15 mm for cable attachment)
Lead-in cable variations/
Temperature range
(can be limited by type of sensing element
– determine in documentation)
PVC shielded          -30 to 80 °C
PVC unshielded      -40 to 105 °C
silicone shielded      -50 to 200 °C
teflon shielded         -50 to 250 °C
with fibreglass
(with metal braiding) 0 to 350 °C (for short term 400 °C)
Ingress protectionPVC and silicone cables IP 67
teflon cables                    IP 64
cables with glass fibre     IP 50

acordance with EN 60529, as amended
Material/Dimension of bayonet nut
Nickel-plated brass /L = 16 mm, inner Ø 12.8 mm
Material/Dimension of springstainless steelDIN 1.4301
/L = 200 mm, outer Ø 6 mm, Ø of wire 0.7 mm
Insulation resistance200 MΩ at 500 V DC
Maximum permissible static pull on the lead-in cable
1 kg
Weight0.04 kg for 40 mm housing length and 1 m cable

*) Certain technical specifications of thermocouple sensors (lead wires, IP rating, etc.) may differ with different types.
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

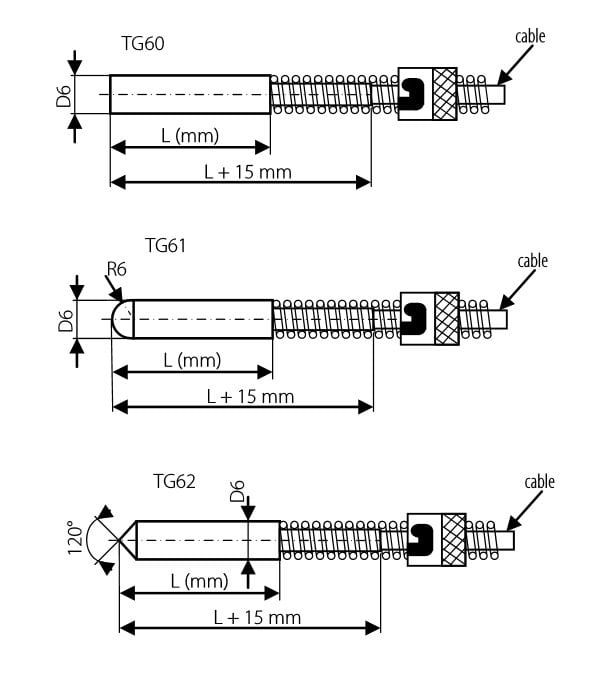

Rozměrový náčrt

Schéma zapojení

Modifikace

  • possibility to encase two sensing elements
  • optional design of case dimensions in terms of: diameter - 5 to 7 mm, L length, case material, case end design
  • spring length
  • accuracy class A (with the exception of sensors Ni 10000/5000, Ni 10000/6180, T1 = Ni 2226, thermistor NTC 20 kΩ)

Soubory ke stažení

B01.04en.pdf B01.04en.pdf
