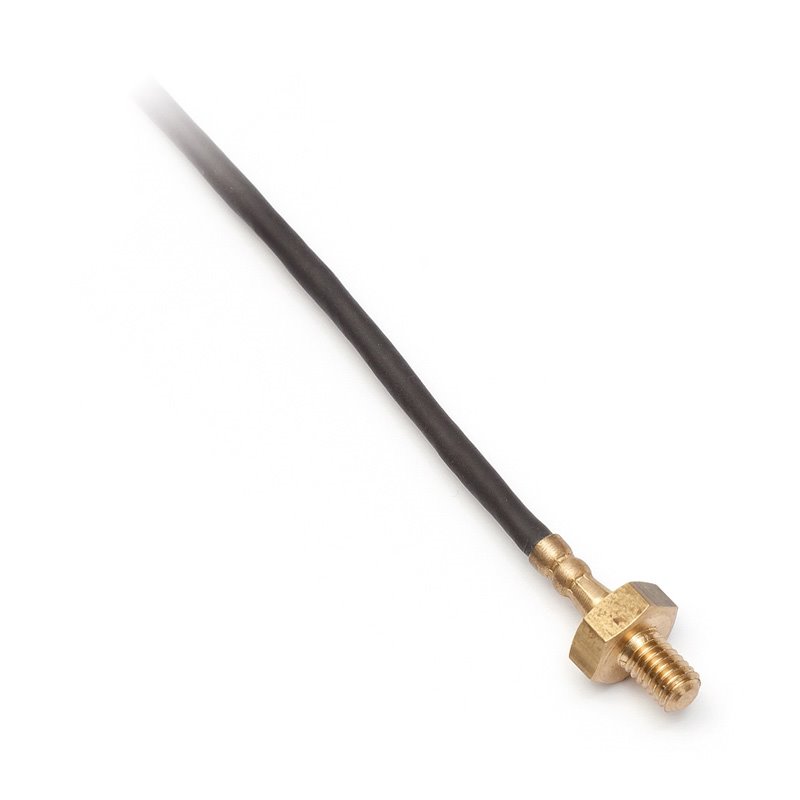

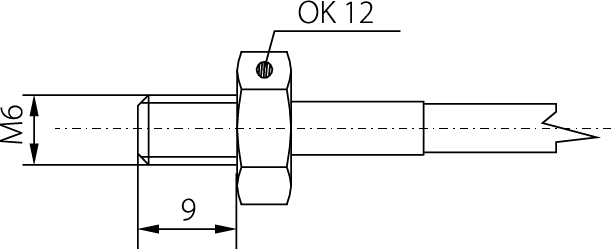

These resistance temperature sensors with a cable and thermocouple temperature sensors with a cable are designed to measure the surface temperature of solid substances. The maximum temperature range of use of the sensors is -30 to 200 °C and these limits must not be exceeded even for a brief period. The structure of the sensors, which includes an M6 thread, enable the measurement of solid substances right below the surface. The sensors are designed for use in a chemically non-aggressive environment. The method of use must be chosen with regard to the temperature and chemical resistance of the case and lead-in cable.
DECLARATION, CERTIFICATION, CALIBRATION
- Manufacturer provides EU Declaratin of Conformity.
- Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.
