These resistance temperature sensors with a cable and thermocouple temperature sensors with a cable are designed for measuring the surface temperature of pipes with a smooth surface. The maximum temperature range of use is -50 to 200 °C, and  must not be exceede even for brief period. The structure of the sensors enables fast response to changes in temperature, in particular when silicone grease or thermally conductive paste is applied between measured surface and the sensor. Temperature sensors meet ingress protection IP 65 in accordance with EN 60529, as amended.

The sensors are designed for use in a chemically non-agressive environment. The method of use must be chosen with regard to the temperature and chemical resistance of the case lead-in cable.

ACCESSORIES

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaratin of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard) or in an Accredited laboratory.



Technické parametry


Sensor typeTG 5
Measuring range
-50 to 200 °C (can be limited by the sensing element, determine in documentation)
Type of sensing element*Pt, Ni, NTC, TCK, TCJ, TCT
Ingress protectionIP 67 in accordance with EN 60529, as amended
Case materialbrass
Case dimensions6 mm
Case lenght35 mm
dimensions of the contact plate
20 x 32 x R12
Lead-in cableshielded silicone 2 x 0.22 mm2
Wire resistance
0.105 Ω for 1 m of cable for 2-wire connection
Time response
τ0.5 < 15 s (on flat surface of Al prism without paste)
Recommendationuse thermal conductive paste for installation
Weight0.03 kg for 35 mm housing length and 2 m cable

*) Certain technical specifications of thermocouple sensors (lead wires, IP rating, etc.) may differ with different types.
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

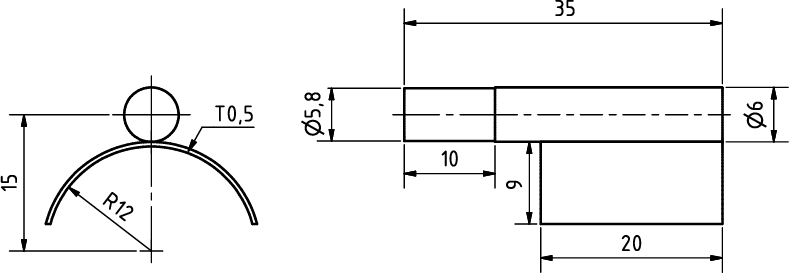

Rozměrový náčrt

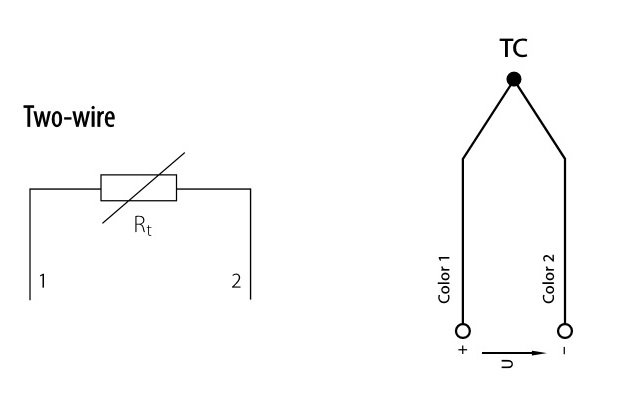

Schéma zapojení
