diameter 4.6 mm, -50 °C to 200 °C

TG 4
diameter 4.6 mm, -50 °C to 200 °C

TG 4
diameter 4.6 mm, -50 °C to 200 °C

CONFIGURATOR

CONFIGURE AND REQUEST

21316
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

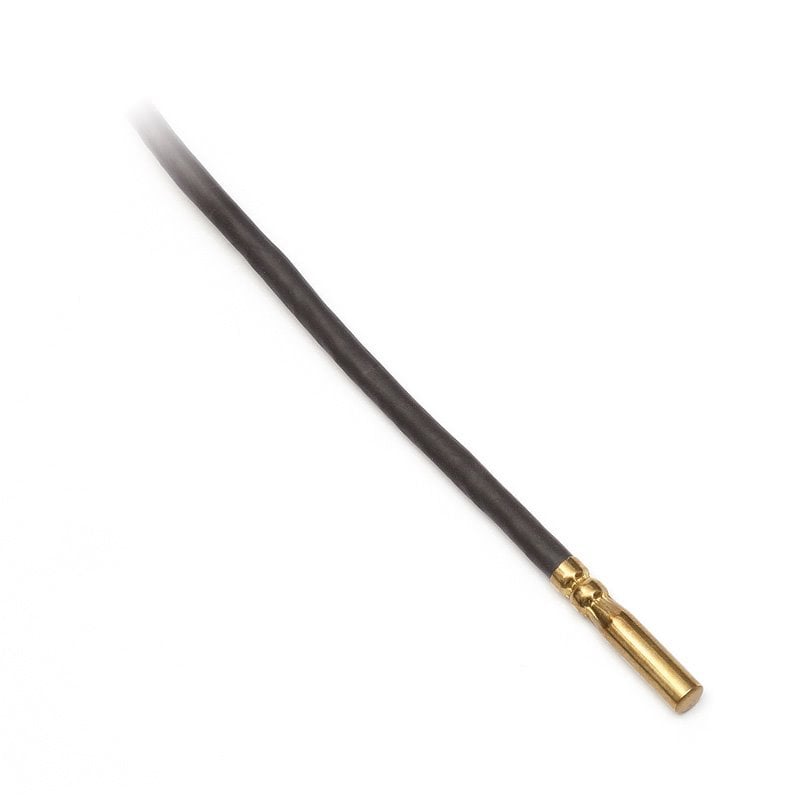

These resistance temperature sensors with a cable and thermocouple temperature sensors with a cable are designed for contact measurement of the temperature of gaseous and liquid or solid substances. The maximum temperature range of use of the sensors is -50 to 200 °C. The material and diameter of the case ensure fast response to changes in temperature. Used type of lead-in cable has silicone insulation and shielding. The sensors are designed for use in chemically non-aggressive environment. The method of use must be chosen with regard to the temperature and chemical resistance of the case and lead-in cable.

Accesories

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.



Technické parametry

Sensore typeTG 4
Measuring range
-50 to 200 °C (can be limited by the sensing element,
determine in documentation)
Type of sensing element*
Pt, Ni, NTC, TCK, TCJ, TCT
Ingress protection
IP 67 in accordance with EN 60529, as amended
Case material
brass
Diameter / Length of case L
4.6 mm / 24 mm
Lead-in cable
shielded silicone 2 x 0.22 mm2
Wire resistance
0.16 Ω for 1 m of cable for 2-wire connection
Time responseτ0.5 < 7 s (in flowing water at 0.4 m.s-1)
Weight0.05 kg for 1 m cable length
*) Certain technical specifications of thermocouple sensors (lead wires, IP rating, etc.) may differ with different types.
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

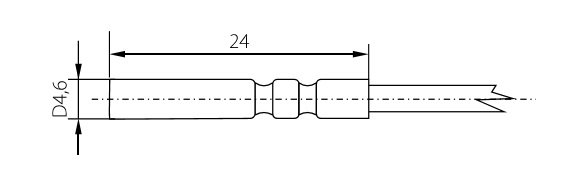

Rozměrový náčrt

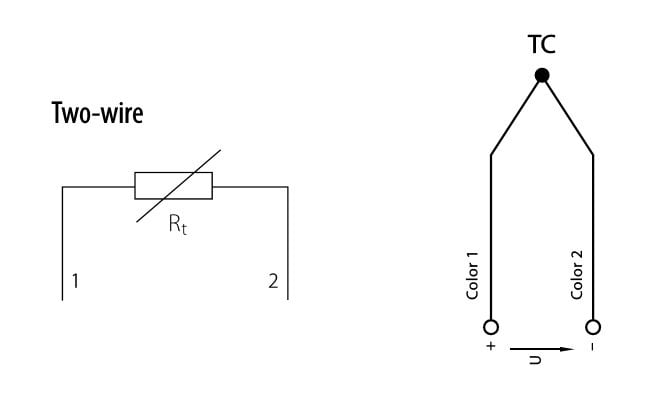

Schéma zapojení

Modifikace

  • variable stem design in the area - L length, case material
  • accuracy class A (with the exceptio of sensors Ni 10000/5000, Ni 10000/6180, T1 = Ni 2226, thermistor NTC 20kΩ)

Soubory ke stažení

K03.05en.pdf K03.05en.pdf

Related Products

TG8Ex serie
ATEX zone II

Detail Detail

TGL AND TGLJ
diameter 5.8 mm, -40 °C to 105 °C

Detail Detail

TG 8 AND TG 8J
diameter 5.8 mm, -50 °C to 200 °C

Detail Detail
1

2

3
*
