TG 3 AND TG 3A
diameter 3 mm, -50 °C to 200 °C

TG 3 AND TG 3A
diameter 3 mm, -50 °C to 200 °C

TG 3 AND TG 3A
diameter 3 mm, -50 °C to 200 °C

BBB

--%>

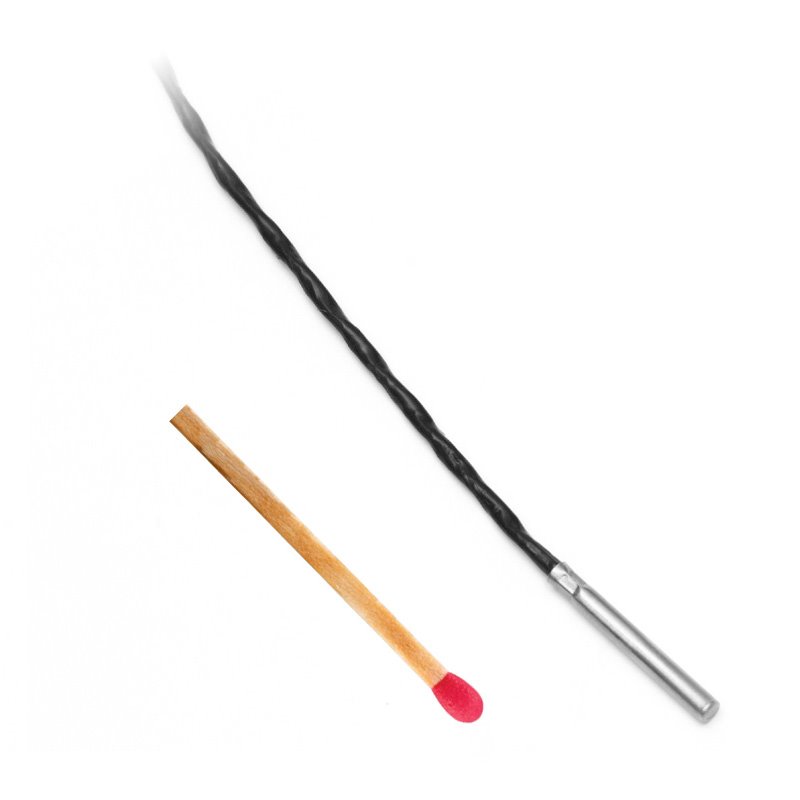

These resistance temperature sensors with a cable and thermocouple temperature sensors with a cable are designed for contact measurement of the temperature of gaseous and liquid or solid substances. the maximum temperature range of use is -50 to 200 °C for the TG 3 model, and -50 to 260 °C for the TG 3A model. The 3 mm diameter of the case ensures fast response to changes in temperature. Used type of lead-in cable has teflon insulation without shielding. The sensors are designed for universal use. The method of use must be chosen with regard to the temperature and chemical resistance of the case and lead-in cable.

The sensors are also designed for use in a chemically non-aggressive environment.

Accessories

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.



Technické parametry

Sensor type TG 3 TG 3A
Measuring range
-50 to 200 °C -50 to 260 °C
(short-term 300 °C)
Type of sensing element*
PT, Ni, NTC, TCK, TCJ, TCT
Ingress protection
IP 64 in accordance
with EN 60529, as amended
IP 54 in accordance
with EN 60529, as amended
Material of the case
stainless steel DIN 1.4301
Diameter of case
3 mm
Lenght of case L
25 to 60 mm
Lead-in cable
teflon unshielded 2 x 0.205 mm2
teflon shielded 2 x 0.14 mm2
teflon shielded 4 x 0.051 mm2
Wire resistance
0.16 Ω for 1 m of cabel for 2-wire connection (unshielded version)
Time response
τ0.5 = up to 3 s, τ0.9 = up to 9 s
*) Certain technical specifications of thermocouple sensors (lead wires, IP rating, etc.) may differ with different types.
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

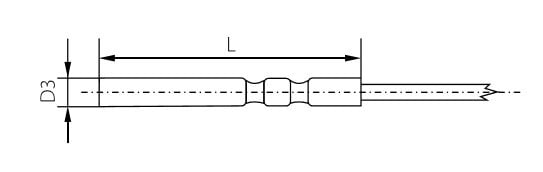

Rozměrový náčrt

Schéma zapojení

Modifikace

  • variable stem design in the area - L length, case material
  • accuracy class A (with the exception of sensors Ni 10000/5000, Ni 10000/6180, T1 = Ni 2226, thermistor NTC 20 kΩ)

Soubory ke stažení

K01.05en.pdf K01.05en.pdf
