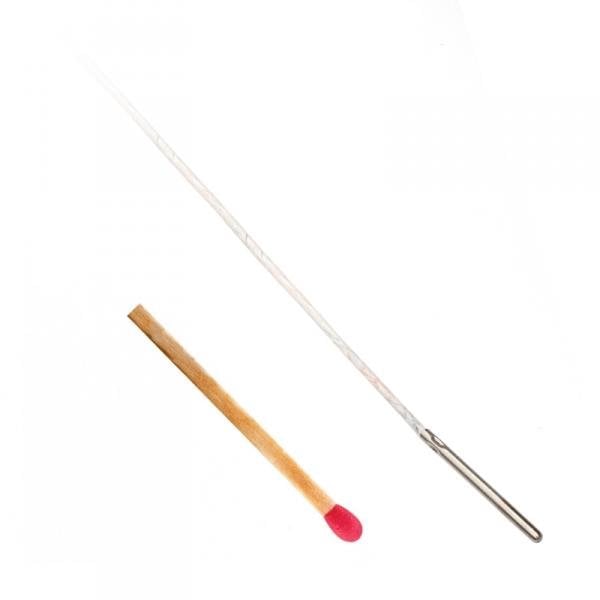

TG 12
diameter 2 mm, -50 °C to 200 °C

TG 12
diameter 2 mm, -50 °C to 200 °C

TG 12
diameter 2 mm, -50 °C to 200 °C

CONFIGURATOR

CONFIGURE AND REQUEST

21569
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

These resistance temperature sensors with a cable and thermocouple temperature sensors with a cable are designed for contact measurement of the temperature of gaseous and liquid or solid substances. The maximum temperature range is -50 °C to 200 °C. The 2 mm diameter of the case ensures fast response to changes in temperature. Used type of lead-in cable has teflon insulation without shielding. The sensors are designed for universal use. The method of use must be chosen with regard to the temperature and chemical resistance of the case and lead-in cable.

The sensors are also designed for use in a chemically nonaggressive environment.

Accesories

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.



Technické parametry

Sensor type
TG 12
measuring range
-50 to 200 °C
Type of sensing element*Pt 100, Pt 500, Pt 1000, TCK, TCJ
Ingress protectionIP 52 in according with EN 60529, as amended
Case materialstainless steel DIN 1.4301
Diameter of case2 mm
Length of case L25 to 60 mm
Lead-in cableteflon unshielded 4 x 0,02 mm2 (4 x AWG 34)
Wire resistance0.765 Ω / m (resistance of 1 m wire)
Time response
τ0,5 = 1,5 s; τ0,9 = 4,5 s
Weight 0,01 kg for 2 m cable length
*) Certain technical specifications of thermocouple sensors (lead wires, IP rating, etc.) may differ with different types.
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

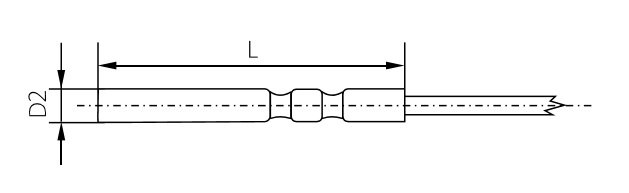

Rozměrový náčrt

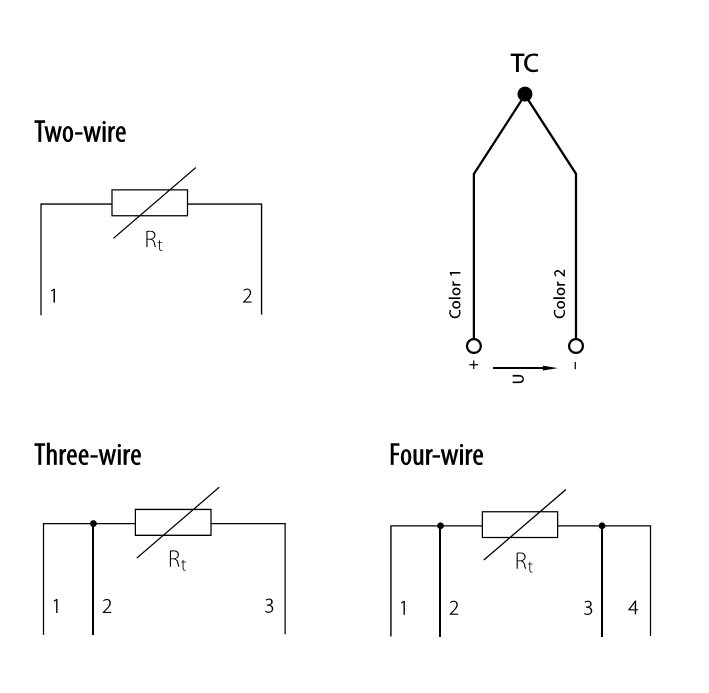

Schéma zapojení

Modifikace

Soubory ke stažení

K29.04en.pdf K29.04en.pdf

Related Products

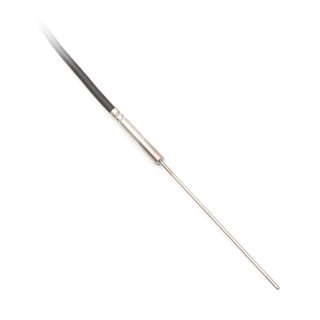

Mineral Insulated Resistance Temperature Sensors
