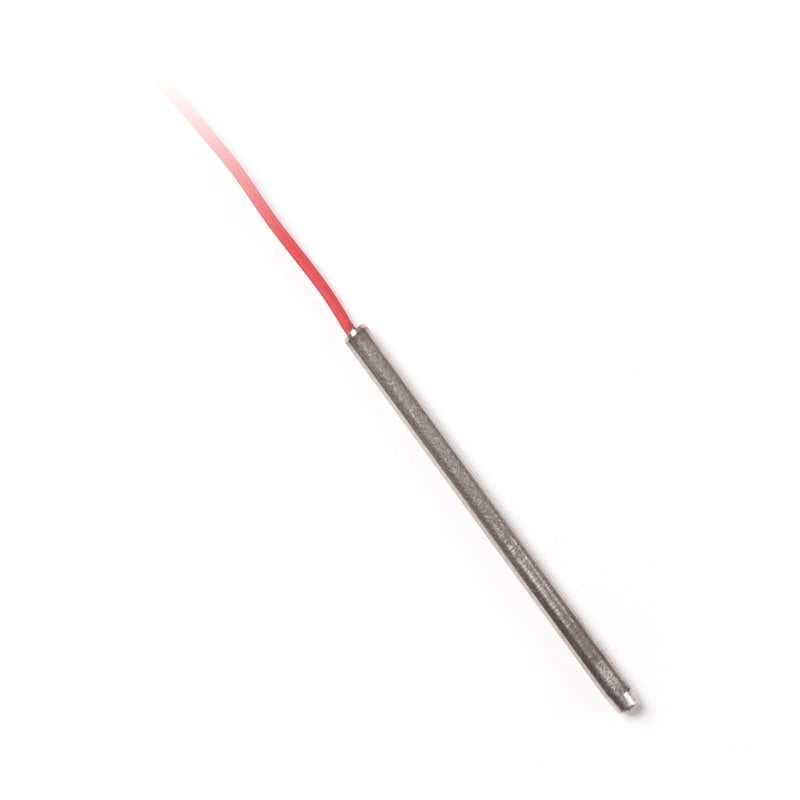

These resistance temperature sensors with a cable and thermocouple temperature sensors with a cable are designed for contact measurement of the temperature of gaseous and liquid or solid substances. The maximum temperature range is -50 to 200 °C. The 1.5 mm diameter of the case ensures fast response to changes in temperature. Used type of lead-in cable has teflon insulation without shielding and their case length is 100 mm. Lead-in cables are possible to extend with different types of cables. The sensors are designed for universal use. The method of use must be chosen with regard to the temperature and chemical resistance of the case and lead-in cable.

The sensors are also designed for use in a chemically nonaggressive environment.

ACCESSORIES

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.



Technické parametry

Sensor type
TG 11.5
Measuring range
-50 to 200 °C
Type of sensing element*Pt 100, Pt 1000, TCK, TCJ
Connection of sensing element 2wire
Connection of extension cables2wire, 3wire, 4wire
Ingress protectionIP 52 in according with EN 60529, as amended
Case materialstainless steel DIN 1.4301
Diameter of case1.5 mm
Length of case L20 to 40 mm
Wires2 x AWG 32
Length of the wires80 mm (for case length 20 mm)
Time response
τ0,5 = 1,5 s; τ0,9 = 4,5 s
Weight0.005 kg to 0.01 kg 1 m wire length
*) Certain technical specifications of thermocouple sensors (lead wires, IP rating, etc.) may differ with different types.
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

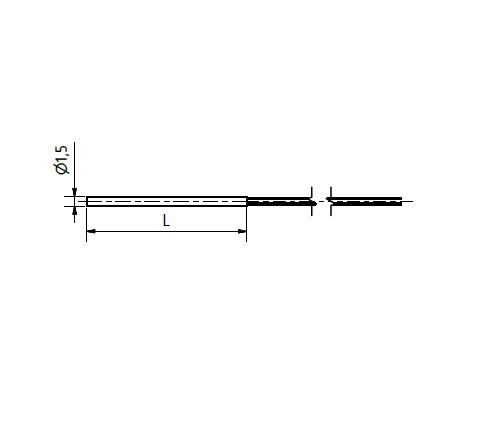

Rozměrový náčrt

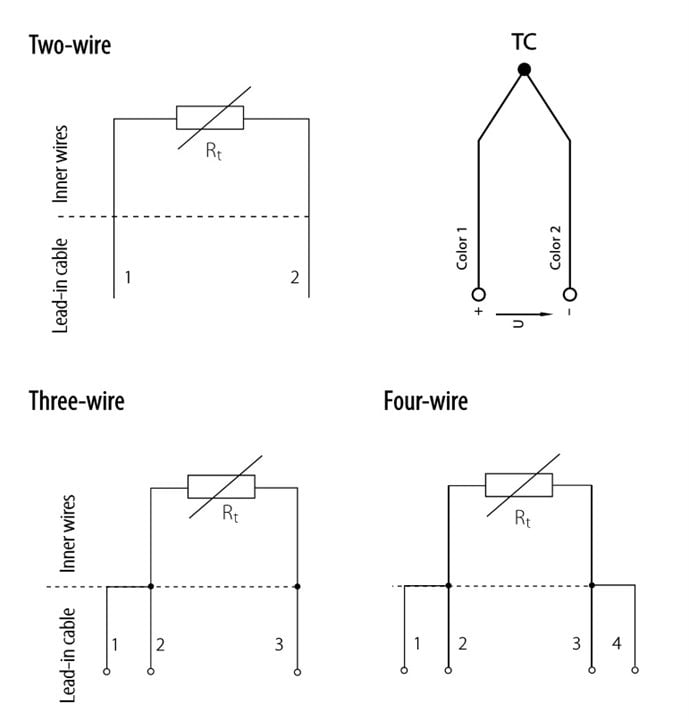

Schéma zapojení
