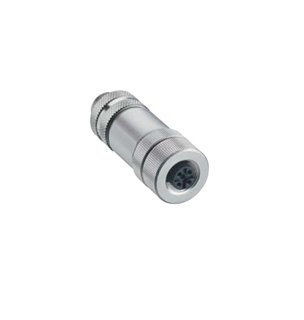

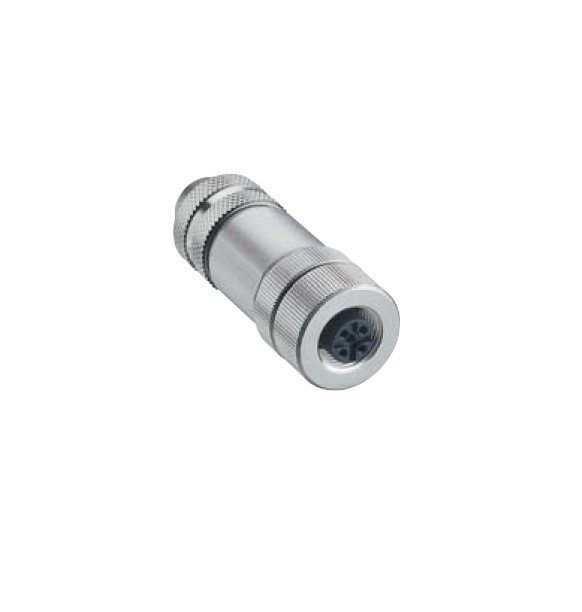

Terminal connector
RKCS 4/9 stainless steel to the cable FEMALE

Terminal connector
RKCS 4/9 stainless steel to the cable FEMALE

Terminal connector
RKCS 4/9 stainless steel to the cable FEMALE
On request

BBB

--%>

Terminal connector RKCS 4/9 is determined to connected temperature sensors with connection head, which are assembled by stainless steel connector:

  • S 110 series - temperature sensor for out door use
  • S 120 series - temperature sensors with stem and plastic connection head (immersion temperature sensors)
  • S 140 series - contact temperature sensors with plastic connection head
  • S 160 series - temperature sensors with plastic connection head and fast response
  • S 180 series - temperature sensors with stem and stainless steel connection head
  • S MINI series - temperature sensorts MINI series

Terminal connector RKCS 4/9 could be connected with connector ELST 4012. We are able to connected to the connector cable according wishes of the customer (type of material, wires, length and so on).

Technické parametry

Type RKCS
Type of contact female
Number of contacts 4
Housing Color metal
Rated voltage 3 – 4 poles 125 V
Rated current 3 - 4 poles 4 A
Type of termination screw
Suitable cables diameter 4 mm to 9 mm
Contact material Cu Zn
Housing material stainless steel
Protection class IP67
Temperature range -25 °C to 90 °C



Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

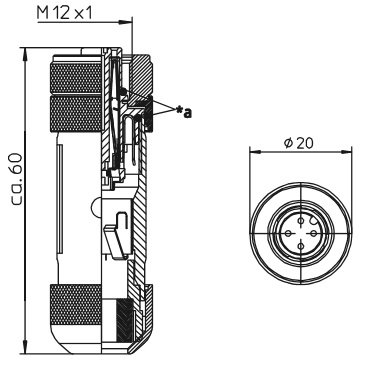

Rozměrový náčrt

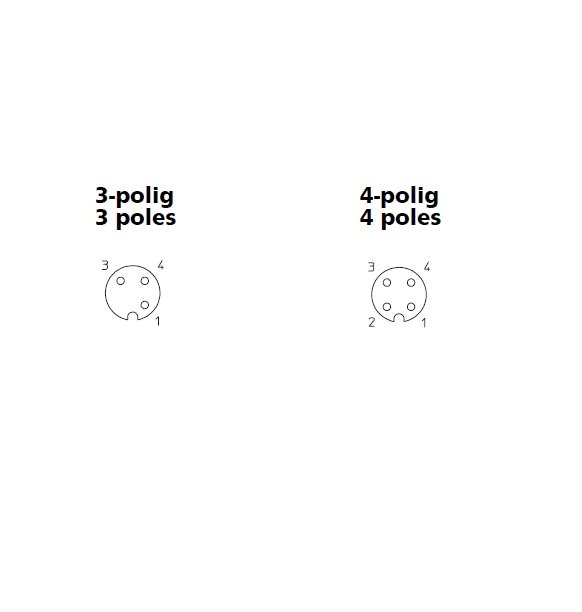

Schéma zapojení

Modifikace

Soubory ke stažení

040.11en.pdf 040.11en.pdf
