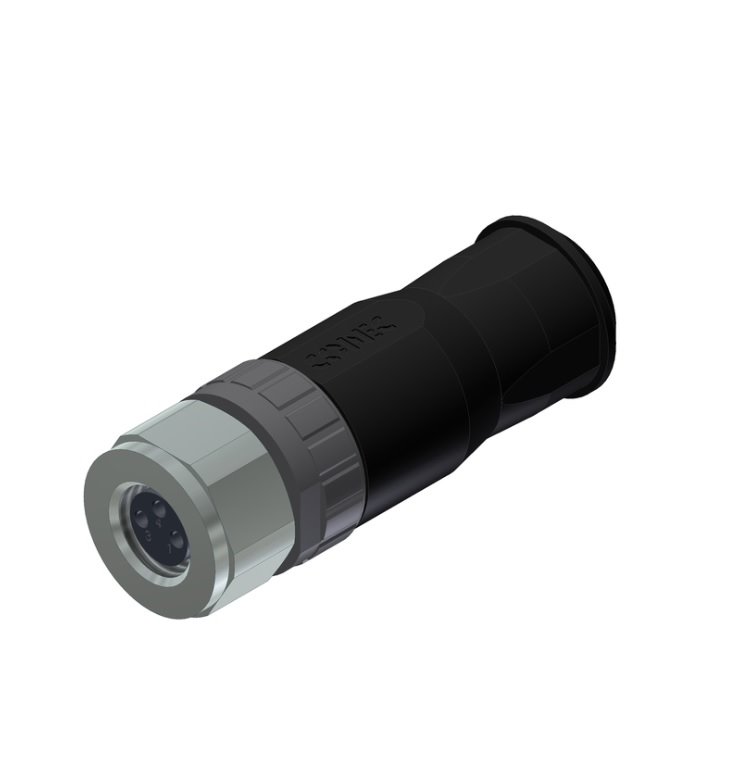

Terminal connector
CONEC 42-00010 to the cable FEMALE

Terminal connector
CONEC 42-00010 to the cable FEMALE

Terminal connector
CONEC 42-00010 to the cable FEMALE
On request

BBB

--%>

Terminal connector CONEC 42-00010 is determined to connected of cable temperature sensors with connector ELST 3008V or equivalent. Connector on the cable is suittable for ease changing broken or mechanical destroyed temperature sensor.

Technické parametry

Type CONEC 42-00010
Type of contact female
Number of contacts 3
Cable gland M 8 x 1
Standard IEC 61076-2-104
Housing Color black
Rated voltage AC/DC 60 V
Rated current 4 A (2 A at 0.14 mm²)
Type of termination screw
Suitable cables diameter 4 mm to 5.5 mm, from 0.14 mm2 to 0.5 mm2
Contact material Cu Zn - golden-plated contacts
Housing material PA6
Protection class IP 67
Temperature range -30 °C to 85 °C



Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

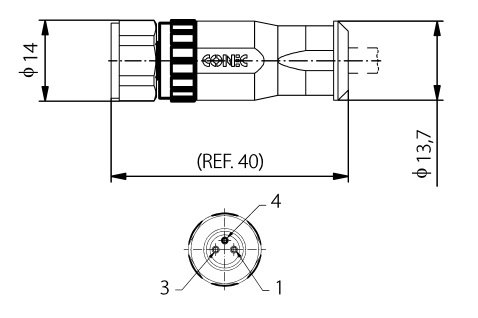

Rozměrový náčrt

Schéma zapojení

Modifikace

Soubory ke stažení

040.11en.pdf 040.11en.pdf
