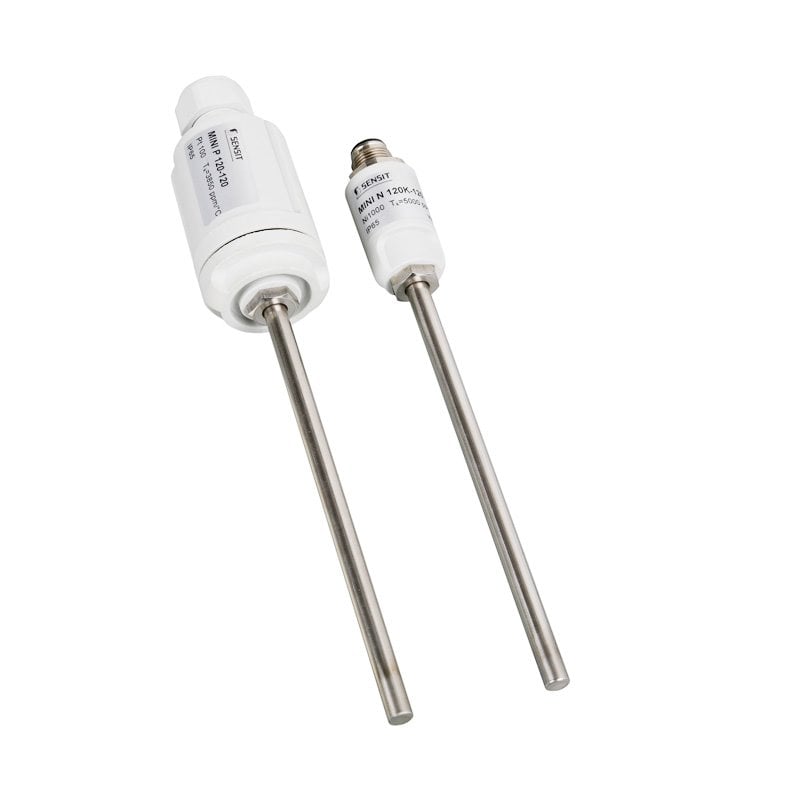

TEMPERATURE SENSORS WITH A STEM, MINI SERIES

Nacházíte se:

CONFIGURATOR

CONFIGURE AND REQUEST

20816

BBB

--%>

These resistance-type temperature sensors of serie MINI are designed for temperature measurements of liquid or gaseous substances in the temperature range -30 to 150 °C. The plastic connection head is provided with a cable outlet ending (the terminal board is placed in the connection head) or a connector. the sensor-central holder combination is suitable for temperature measurements in air condition ducts. The sensor-thermowell combination is suitable for temperature measurements in tubing. The sensor variant with welded thread is ideal for direct measuring of mediums in ducts. By using a sensor with a longer stem the upper limit of allowable temperature can be extended up to 250 °C. The sensors can be utilised for any control systems that are compatible with sensing element output signals or output signals quoted in the table of sensing element types.

The sensors are designed to be operated in a chemically non-aggressive environment.

ACCESSORIES

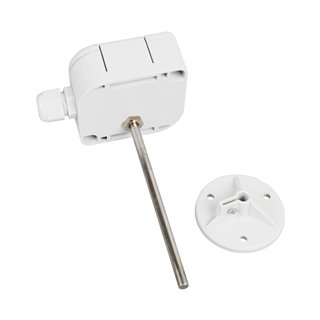

central plastic holder (part of the packing)
stainless steel thermowell JS 130
metal central holder K 120
lead-in connector CONEC 43-00092
connection cable with the straight-type RKT connector or with the rectangular-type RKWT connector
screw with collet or cutting rings – if different lengths of stem immersion of the temperature sensor are set

DECLARATION, CERTIFICATION, CALIBRATION

Manufacturer provides EU Declaration of Conformity.
Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.

Technické parametry

Sensor type (K - with connector)	MINI N 120 MINI N 120K	MINI N 121 MINI N 121K	MINI N 122 MINI N 122K	MINI N 320 MINI N 320K	MINI N 321 MINI N 321K
Type of sensing element	Ni 1000/5000	Ni 1000/6180	Ni 891	Ni 10000/5000	Ni 10000/6180
Measuring range	-30 to 150 °C (connection head ambient temperature -30 to 100 °C)
Maximum measuring DC current	1 mA	1 mA	1 mA	0.3 mA	0.3 mA

Sensor type (K - with connector)	MINI N 123 MINI N 123K	MINI P 120 MINI P 120K	MINI P 220 MINI P 220K	MINI P 320 MINI P 320K	MINI H 120 MINI H 120K
Type of sensing element	T1 = Ni 2226	Pt 100/3850	Pt 500/3850	Pt 1000/3850	thermistor NTC 20Ω
Measuring range	-30 to 150 °C	-50 to 150 °C (connection head ambient temperature -30 to 100 °C)			-30 to 150 °C
Maximum measuring DC current	0.7 mA	3 mA	1.5 mA	1 mA	10 mW *)

*) maximum power consumption

Sensor type	MINI N 520	Note
Type of sensing element	Pt 1000/3850
Output signal	4 to 20 mA
Measuring ranges	-50 to 50 °C -30 to 60 °C 0 to 35 °C 0 to 100 °C 0 to 150 °C	ambient temperature around the connection head -30 to 70 °C
Power supply (U)	11 to 30 V DC	recommended value 24 V DC
Load resistance	150 Ω for power supply 12 VDC 700 Ω for power supply 24 VDC
Output signal -sensing element break	> 24 mA
Output signal - sensing element short circuit	< 3 mA

OTHER PARAMETERS
Accuracy class	Ni sensing elements: B class, Δt = ± (0.4 + 0.007t), for t ≥ 0; Δt = ± (0.4 + 0.028\|t\|), for t ≤ 0 in °C; Pt sensing elements: B class according EN 60751, Δt = ± (0.3 + 0.005\|t\|) in °C NTC 20 kΩ: ± 1 °C for the range 0 to 70 °C
Measuring error for MINI N 520	< 0.6 % of the measuring range, minimum 0.5 °C
Sensor connection	according to the wiring diagram
Standard lenght of stem L1	70, 120, 180, 240, 300, 360, 420 mm
Time response	τ0,5 < 9 s (in flowing water at 0.4 m.s^-1)
Type of terminal board -sensor with grommet	Weco 951-A-LFDS, maximum wire cross section 1.5 mm²
Type of connector -sensors with connector	RSFM4 - Lumberg
Type of lead-in cable -sensors with the output 4 to 20 mA	2 x 0.25 mm2, PVC shieldid, up to 80 °C
Insulation resistance	> 200 MΩ at 500 V DC, 25° ± 3 °C; humidity < 85 %
Ingress protection	IP 65 in accordance with EN 60529
Material of the sensor stem	stainless steel DIN 1.4301
Material of connection head	POLYAMIDE
operating conditions	ambient temperature:-30 to 100 °C; -30 to 70 °C with a converter relative humidity: max. 100 % (at the ambient temperature 25 °C) atmospheric pressure: 70 to 107 kPa
Weight	MINI approximately 60 g, MINI K 35 g

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

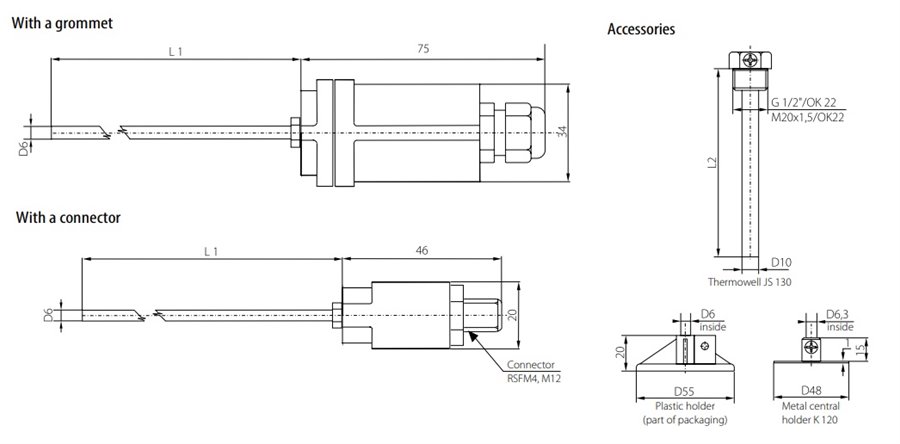

Rozměrový náčrt

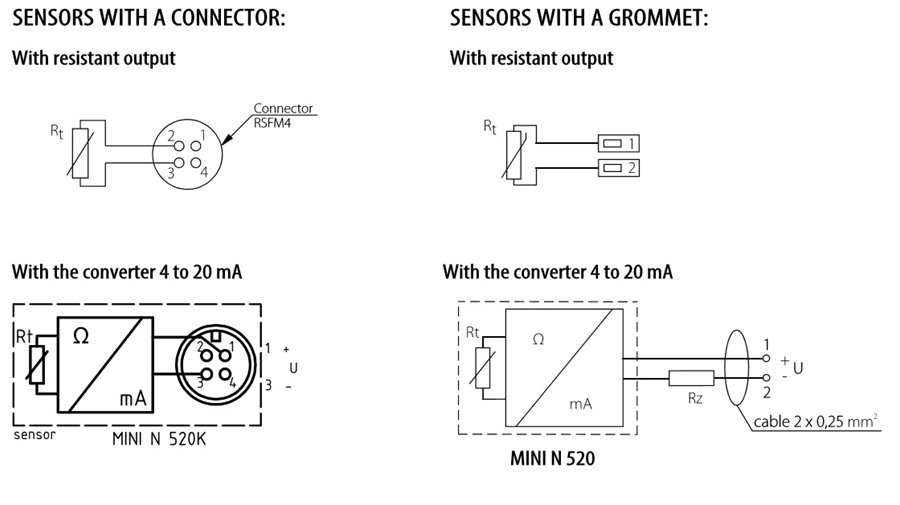

Schéma zapojení

Modifikace

option of encasing two sensing elements
option of encasing non-standard tempeature sensors (DALLAS, TSic, KTY, SMT, etc.)
accuracy class A (with the exception of sensors Ni 10000/5000, Ni 10000/6180, T1 = Ni 2226, termistor NTC 20 kΩ)
option of three- or four- wire connection
variable stem design - L1 length, materials, diameters, option of thread design
thermowell thread type options
