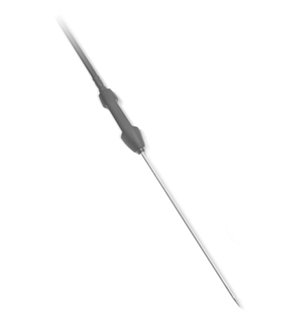

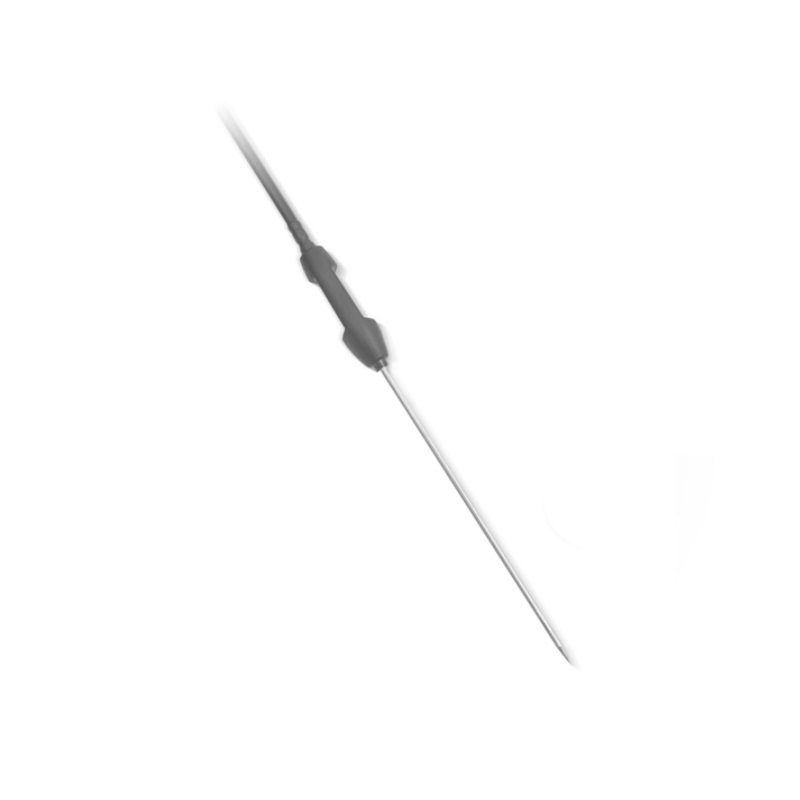

These thermocouple temperature sensors TC 151/280 are designed for the measurement of temperature of soft or loose materials and solid substances, consistency of which is such so the metal tip cannot be damaged. They can also be used for measuring liquid and gaseous substances. The temperature range for the use of the sensor is -40 to 280 °C (300°C for a short time). The sensors consist of a metal tip (stainless steel DIN 1.4301), where the thermocouple measuring point is located, a grip made of high-temperature resistance plastic and thermocouple leads. Material composition of the sensors conforms to the requirements of Decree 38/2001 Coll., as amended. The design allows easy cleaning, thanks to which the temperature sensors can be used in the food industry.
The sensors are intended for operation in chemically non-aggressive environment.
DECLARATION, CERTIFICATION, CALIBRATION
- Manufacturer provides EU Declaration of Conformity.
- Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.
