TEMPERATURE PROBES S 61/260 and TC 61/280
-50 °C to 280 °C

TEMPERATURE PROBES S 61/260 and TC 61/280
-50 °C to 280 °C

TEMPERATURE PROBES S 61/260 and TC 61/280
-50 °C to 280 °C
On request

BBB

--%>

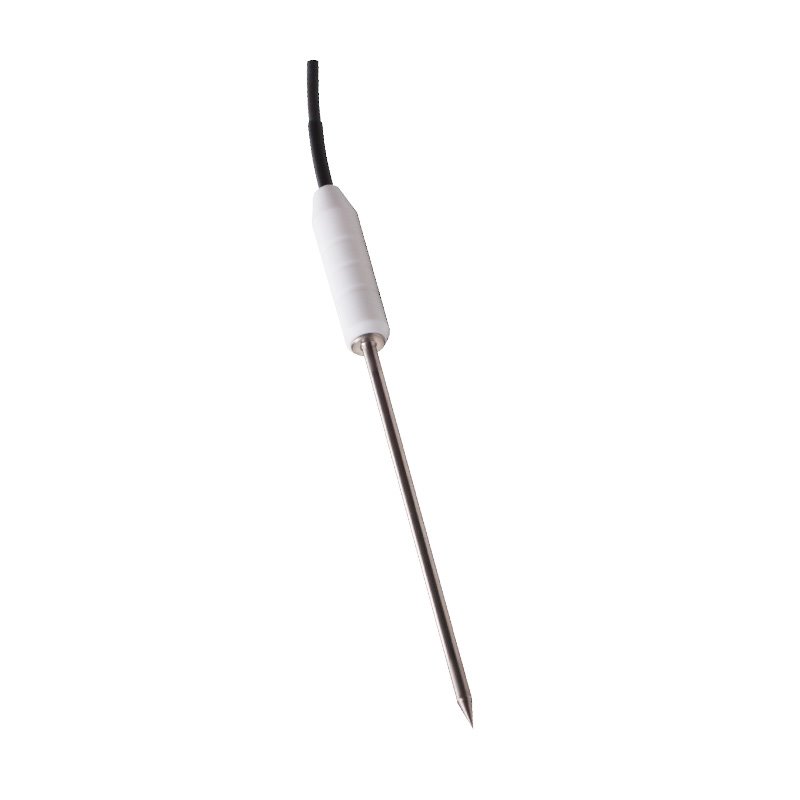

These resistance and thermocouple temperature probes S 61/260 and TC 61/280 are designed for the measurement of temperature of loose materials and solid substances, consistency of which is such so the metal tip cannot be damaged. They can be used also for measuring of liquid and gaseous sustances. The temperature range for the use of the probe liquid and gaseous substances. The temperature range for the use of the probe is -50 to 280 °C. The temperature probes consist of a metal tip (stainless steel DIN 1.4301), a handle and a lead-in cable. Material composition of the probe conforms to the requirements of Decree 38/2001 Coll. as amended. The design allows easy cleaning, thanks to which the temperature probes can be used in the food industry. The resistance sensing element is located in the tip of the stainless steel case.

The probes are intended for operation in chemically non-aggressive environment.

DECLARATION, CERTIFICATES, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.

Technické parametry

Probe type S 61/260 TC 61/280
Measuring range
-50 to 260 °C (for a short time 300 °C) -40 to 280 °C(for a short time 300 °C)
Type of sensing element* all types TC K
Number of measuring points up to 3 measuring points (Pt) up to 6 measuring points (TC K)
Ingress protection IP68 (1 bar) in accordance with EN 60529, as amended
Material of the probe tip
stainless steel DIN 1.4301
Diameter of the probe tip
4 mm – standard; 1.5 to 6 mm – modification
Length of the probe tip
125 mm – standard; 50 to 500 mm – modification

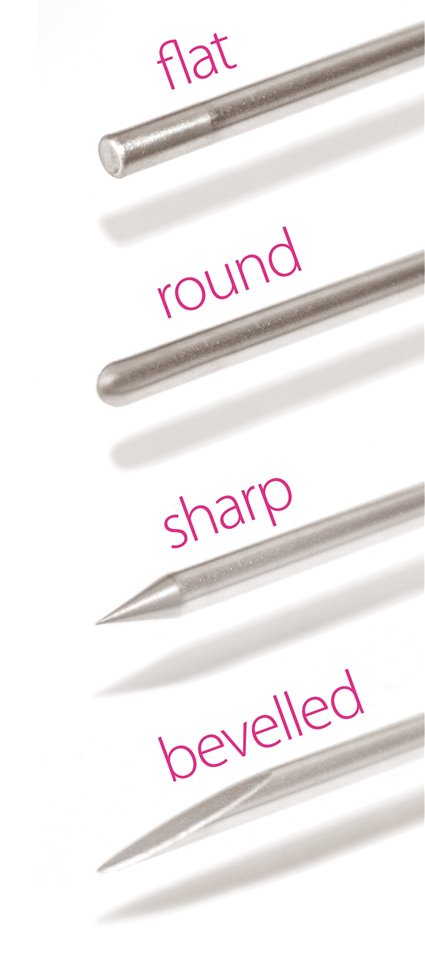

End of the probe tip sharp – standard; flat, round, bevelled
Material of the handle
teflon D14/57 or D 11/57
Temperature resistance of the handle up to 260 °C
Lead-in cable teflon shielded  teflon shielded or unshielded

*) Certain technical specifications of thermocouple sensors (lead wires, IP rating, etc.) may differ with different types.
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

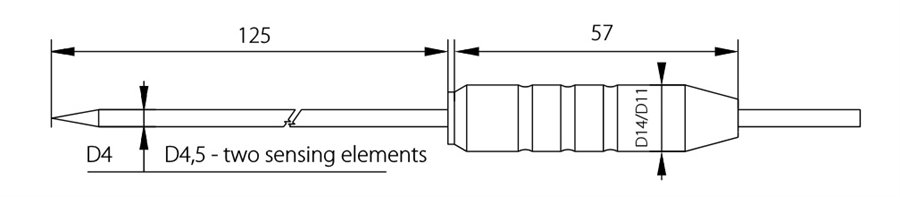

Rozměrový náčrt

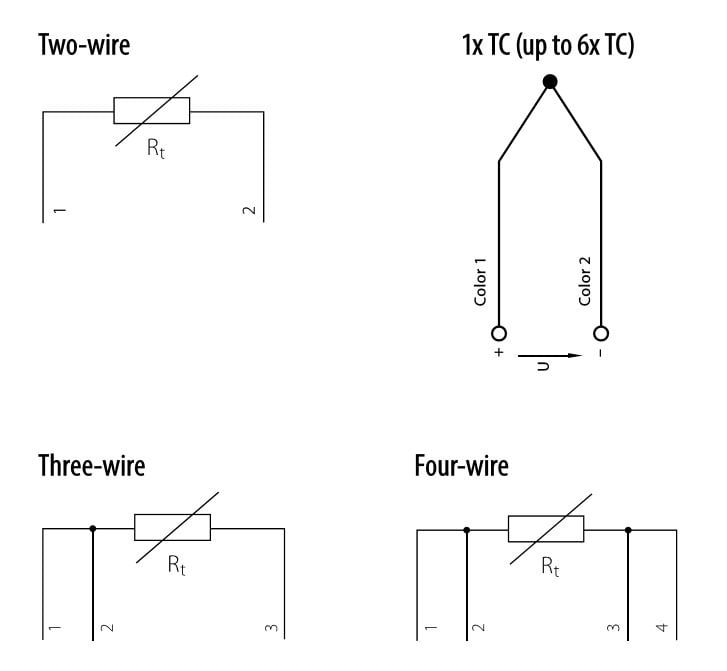

Schéma zapojení

Modifikace

Soubory ke stažení

S03.04en.pdf S03.04en.pdf
