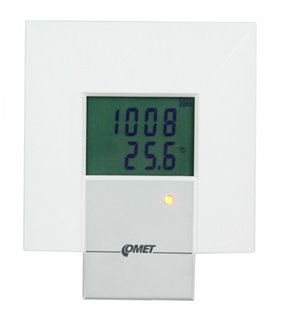

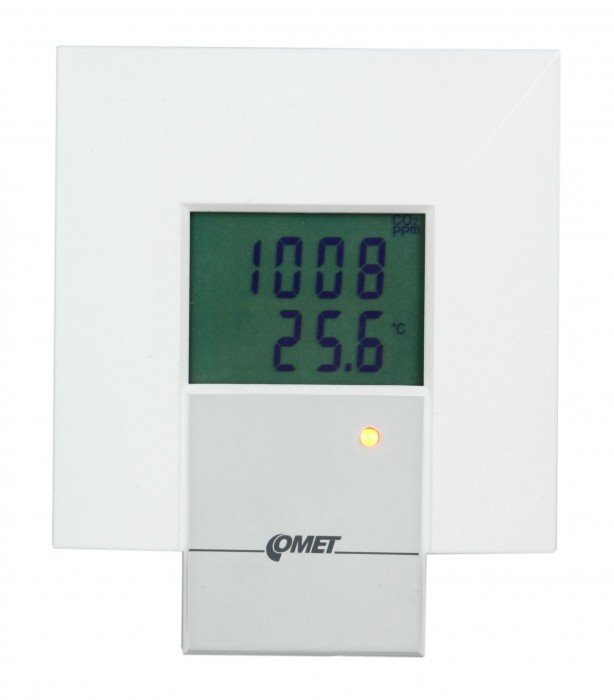

CO2 - carbon dioxide level and temperature sensor T8248 is specially designed for use in exacting interiors in building energy management and HVAC systems. It designed for easy installation on ordinary KU68 wiring boxes for household switches and sockets.
Method of CO2 sensor multipoint calibration leads to an excellent accuracy measurements of CO2 in the entire of operating temperature range. With this sensor is the device able to meet the demanding requirements for outdoor use. The measurement principle is based on the NDIR principle with dual wavelength, which automatically compensates for aging of the sensor. The sensor is resistant against the pollution and provides maintenance-free operation and excellent long-term stability.
Large dual line LCD is an advantage. Display is possible to switch off. Computerized design ensures maximum long term stability and failure indication.
Measured CO2 concentration and temperature values are converted to 0-10V voltage outputs.
Included in delivery:
- Traceable calibration certificate
- Quick start manual
- Free program TSensor for configuring of the transmitter is ready to Download
Transmitter is also equipped with an alarm LED:
- LED shines green - CO2 concentration 0 to 1000 ppm
- LED shines yellow - CO2 concentration 1001 to 1200 ppm
- LED shines red - CO2 concentration 1201 ppm and more
