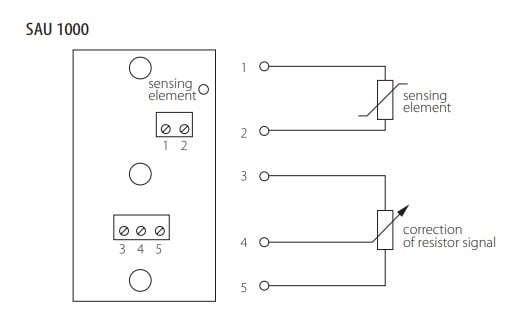

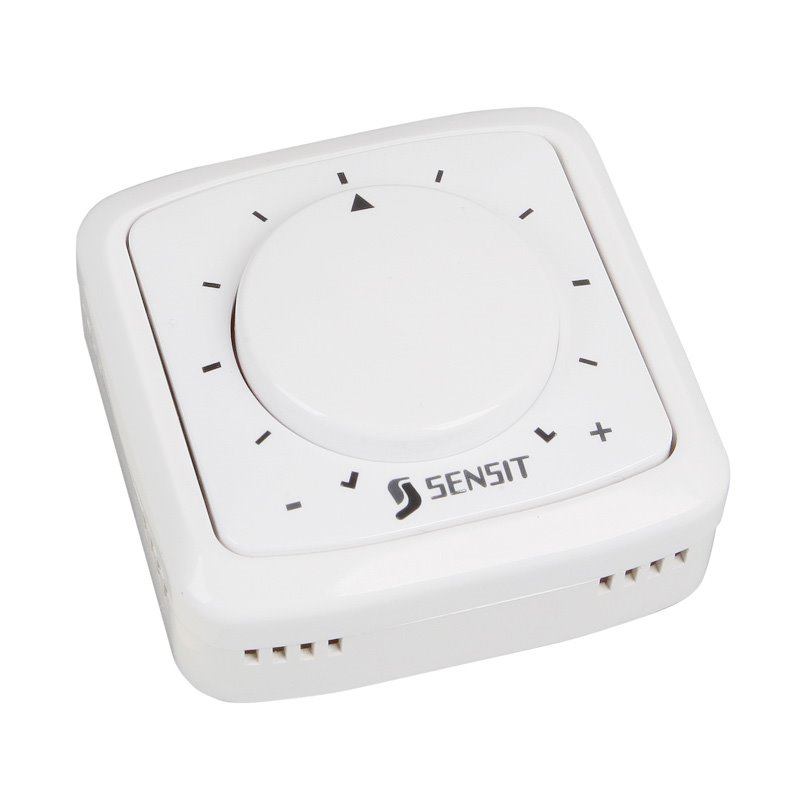

The SAU 1000 control modules are intended to measure air temperature in water protected rooms. In addition to measuring temperature they enable to correct the requested value. These sensors are encapsulated in a plastic case, in which the temperature sensing element and a potentiometer are situated. Based on the measured temperature information an adjustment in the control system can be done, resulting in temperature increase or decrease.
Both control module types are enclosed in TANGO boxes made by ABB elektro, and as such they are a suitable supplement to wall switches, sockets, sensors and further elements of this series.
The sensors are designed to be operated in a chemically non-aggressive environment.
DECLARATION, CERTIFICATION, CALIBRATION
- Manufacturer provides EU Declaration of Conformity.
- Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard) or in an Accredited laboratory.
